Usage: Round copper drawing
Inlet diameter: Φ 0.6- Φ 1.2mm
Outlet diameter: Φ 0.1-Φ 0.68 mm
Max mechanical speed: 2200 MPM
Max drawing dies number: 24 sets (Customer self-provided)
Outlet diameter of dies: Φ 25mm× 8
Surface reduce rate:
No. 1~No. 23 23%
No. 24 8%
Drawing method: 4 spools horizontal arrangement; Sliding continuous drawing
Motive power:
Main motor: 15 KW (AC); Controlled by frequency converter
Take-up motor: 5.5 KW (AC); Controlled by frequency converter
Frame: Ironed cast
Transmission: All transmission by flat belt
Capstan: 4 spools horizontal arrangement; Tungsten carbide
Drawing lubrication system: Lubrication oil 40 liter/min (Without water pump and water box); Spray type for dies and capstan
Take-up dimension:
Outlet diameter: Φ 300mm
Capacity for wire receiving: 40~60kg
Bobbin loading & unloading type: Swelling shaft sleeve tighten type (with loading &unloading cart)
Traversing unit: 110 W low speed synchronous motor
Traversing width: Φ 300mm
Spooling control method: Weight tension balance; Algorithm revises control spooling tension automatically
Protection cover: Grille for transmission area;
Stainless steel plate for drawing area;
Sealed cover with 3 inspection windows for spooling area
Brake: 20 Kg electromagnetic brake

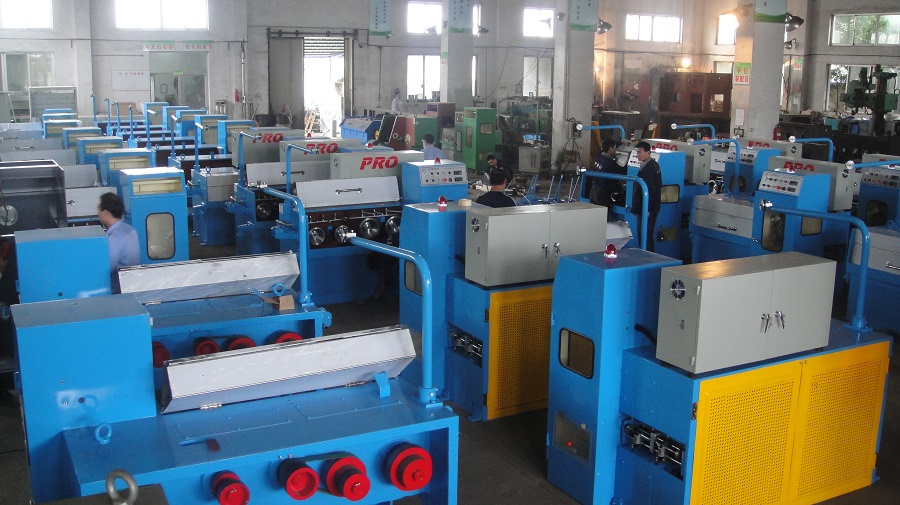

Picture 1
