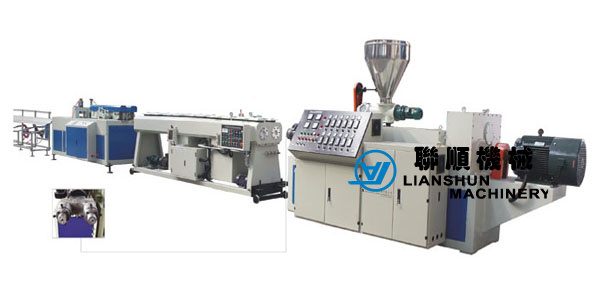

PVC Double Pipe Production Line
First class pipe die was designed with many years experience.
Perfect twin pipe vacuum sizing system.
Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device.
Optional length set and accurate adaption stacker.
Components:
1. Automatic Feeder
2. Conical Twin-Screw Extruder
3. Double pipe mould
4. Vacuum Calibration & Spray box
5. Haul-off machine & Cutter
6. Stacker
|
Main Technical Parameters |
|
MODEL |
PVCG-2-40 |
PVCG-4-40 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
|
OD RANGE(mm) |
16-40 |
16-63 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
4000 |
4000 |
|
HAUL SPEED(m/min) |
1.2-12 |
1-10 |
|
INSTALLED POWER(kw) |
67 |
85 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
Jiangsu Lianshun Machinery Co., Ltd., specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines.
After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
