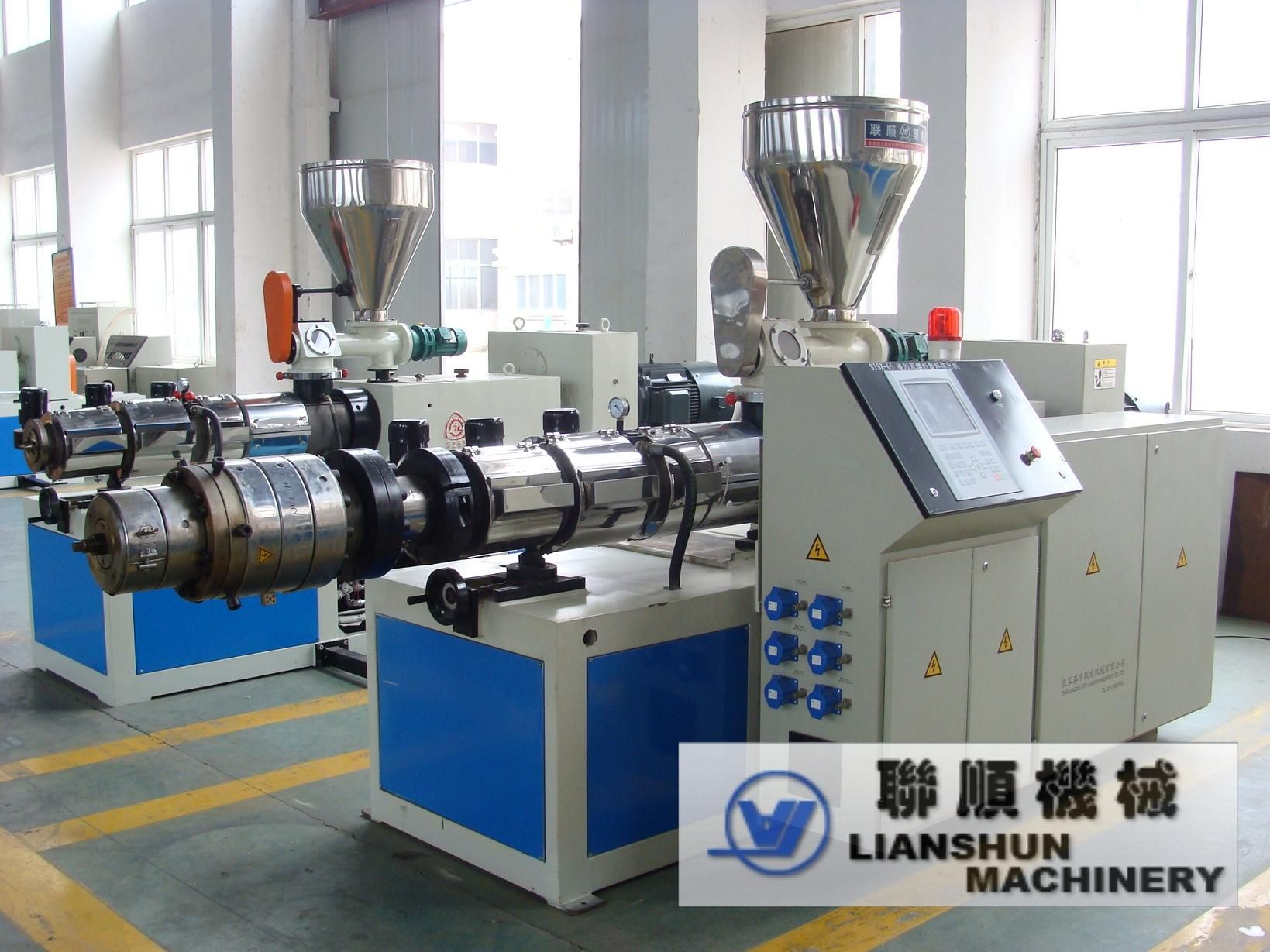

Twin Screw Plastic Extruder
SJSZ SERIES CONICAL TWIN-SCREW PLASTIC EXTRUDER are special equipments which can extrude and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes, profiles, sheets, plates, bars and granulation.
|
Item |
SJSZ-45 |
SJSZ-51 |
SJSZ-65 |
SJSZ-80 |
SJSZ-92 |
|
Diameter of screw (mm) |
45/100 |
51/105 |
65/132 |
80/156 |
92/188 |
|
Number of screw (mm) |
2 |
2 |
2 |
2 |
2 |
|
Direction of screw |
Screw rotation direction |
|
Screw rotation speed (rpm) |
1-37 |
1-32 |
1-34.7 |
1-36.9 |
1-32.9 |
|
Effective length of screw (mm) |
985 |
1070 |
1440 |
1800 |
2500 |
|
Power of Main engine (kw) |
15 |
18.5 |
37 |
55 |
90 |
|
Barrel heating power (kw) |
12 |
18 |
24 |
36 |
86.8 |
|
Production capacity (kg/h) |
95 |
80-120 |
250-300 |
320-450 |
500-600 |
|
Center height (mm) |
1000 |
1000 |
1000 |
1000 |
1200 |
|
Net weight (kg) |
2800 |
3200 |
4000 |
5000 |
10000 |
|
** Dimensions ( mm) (L*W*H) |
3620*1050*2157 |
3000*1050*2200 |
4235*1520*2450 |
4750*1550*2460 |
6725*1550*2841 |
Jiangsu Lianshun Machinery Co., Ltd., specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines.
After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
