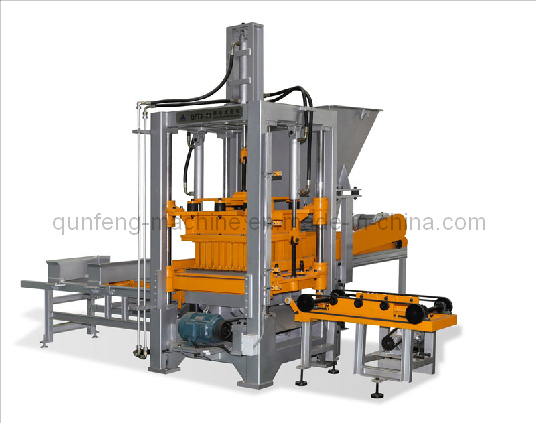

Main Technical Specifications of QFT3-20:Size and output of major products:
A) Hollow blocks: 400 X 200 X 200mm, 2PCS/mould
B) Perforated bricks: 240 X 115 X 90mm, 8PCS/mould
C) Interlocking ripples: 10PCS/mould
D) Solid bricks: 240 X 115 X 53mm, 18PCS/mould
2) Pallet size: 680 X 535mm
3) Cycle time: 15 - 20 seconds
4) Type of major vibration: Table vibration
5) Vibration frequency: 3800 - 4200 r/min
6) Total power: 19.95kW
7) Rating pressure: 6.3Mpa
8) Profile size (including pallet delivering device and green block delivering device): 5130X 3860 X 2520mm
9) Weight: 3808kg
This simplest hydraulic system ,and operation essentials can be learnt easily in few minutes.
![]()
The stratiform colored layer can be fed with the simple horizontaltwice material feeding system.The pressing and vibration combined organically .The finished products have high density and excellent capacity.![]()
With compact structure ,simple operation ,convenient maintenance ,steady capability,effcient and good practicability .This machine is suitable for customers with small or medium amount of investment.![]()
Eight advantages of Qunfeng paver block Making Machine(1) Uses Germany Siemens PLC control system and Siemens Touch Screen.
A. Human-computer interface screen with easy operation;
B. Is able to set up, update and amend the production perimeters, to maximize the production output;
C. Dynamic display of the system's status, automatic trouble shooting and warning notice;
D. Has advanced logical safety lock function, avoiding mechanical accidents caused by operational mistakes;
E. Is able to troubleshoot the machinery via remote control.
(2) Uses proportional electrical and hydraulic control relief valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; Uses integrated high-pressure and soft oil pipes, with easy installation;
(3) Optimun structure of vibrating shafts, which assures vibration distributed uniformly in the range of vibrating table, thereby improves the uniformity and stability of blocks, produces better quality of product than before when using the same ratio of raw material, and effectively reduces the noise.
(4) Use special design of fixing table and knock type vibration, improves the speed of making product and the accuracy of the size of product.
(5) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;
(6) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
(7) Mould frame is made with inlaid structure, and mould are processed via the procedures of carburizing, nitriding and quenching which guarantee the strength of mould core and mould surface could be HRC52-HRC61.
(8)The lifespan of mould is not less than100 thousands times. Further more information & pictures about this production line, please contact with our company.
1. Specializing in R & D, manufacturing and vendition and after-sale service.
2. The production base with total investment at 52 million USD, covering 186, 081 m2.
3. Assembly and commissioning workshop cover 36, 000 m2, with Various types of CNC equipment in high automation.
4. Mould workshop cover 18, 000m2, with a Heat treatment equipment in Germany technology, highly improve the quality and lifespan of mould.
5. Providing comprehensive technical service, including: investment proposal, construction planning, quality warranty, after-sales service, problem-solving, free training etc.
6. With office and spare parts warehouse in Brazil, Qatar, Algeria, India and South Africa;
7. More than 50 technicians working overseas providing after-sales service support for customers.
8. With CE Certificate;
9. With 50 national patents
10. Involved in the drafting and revision of more than 10 national industry standards;
11.65% of orders from overseas;
12. Our Machine working well in 106 countries and area;
13. Over 7000 customers worldwide.
