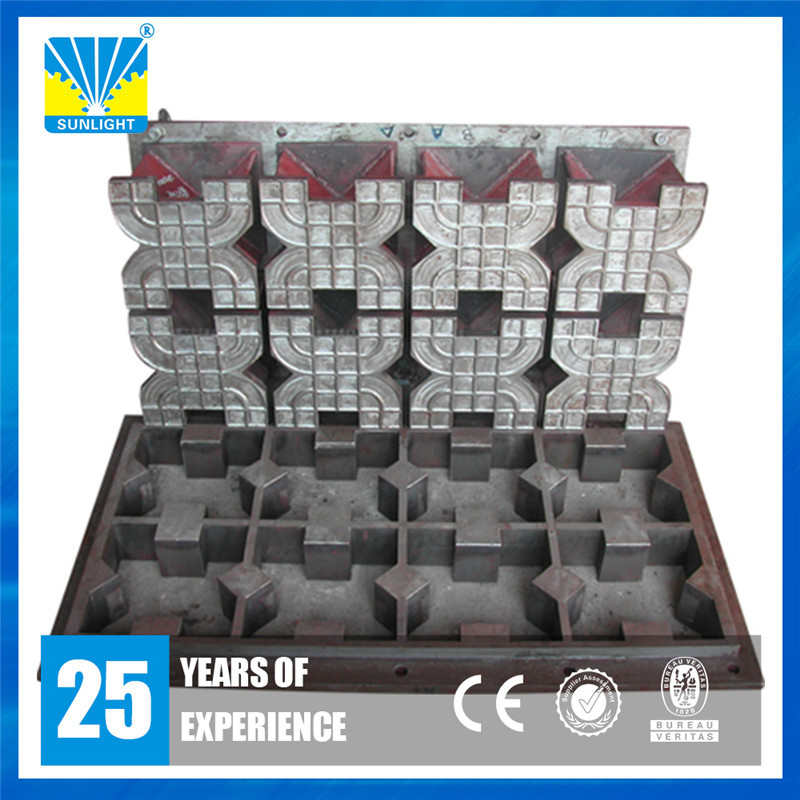

Cement Interlocking Block Making Machine Mould
A. Sunligh semi-auto brick making machine advantage:
1. Machine System:Automatically Making Concrete Bricks, Blocks, Curbstone and Pavement blocks By using Raw Materials of Cement-Sand-Stone Powder -Fly ash-Water-Industrial Dust etc.
2.Machine Forming System:Table Vibration by Gear Axis Box (AC Motor)+ Mould Vibration (Side Way Motor )+ Hydraulic Press (Hydraulic Cylinder)
3.Machine Frame:China National Standard New Pure Steel (3mm thickness)
4.Hydraulic System:Hydraulic Station With Water Cycle Cooling System; 'YUKEN-JAPAN' Hydraulic Valves automatically controlling each action; Branded Hydraulic Pump With Electric Motor. (SIEMENS motor is available for option).
5. PLC computerized controller:Smart Touch Screen; Electrical Components MISTSUBISH,OMRON,TELEMECANIQUE are available.
6. Specially product line design for saving block making plant room and saving cost.
B.Concrete brick block making machine product line picture.
C.Sunlihgt product line working videosFully automatic product line https://youtu.be/Vb-IOLbaO-E Economic fully automatic product line https://youtu.be/-TdL4YD6TAQ
Color paver semi-auto product line https://youtu.be/Np-o2dUJCWw

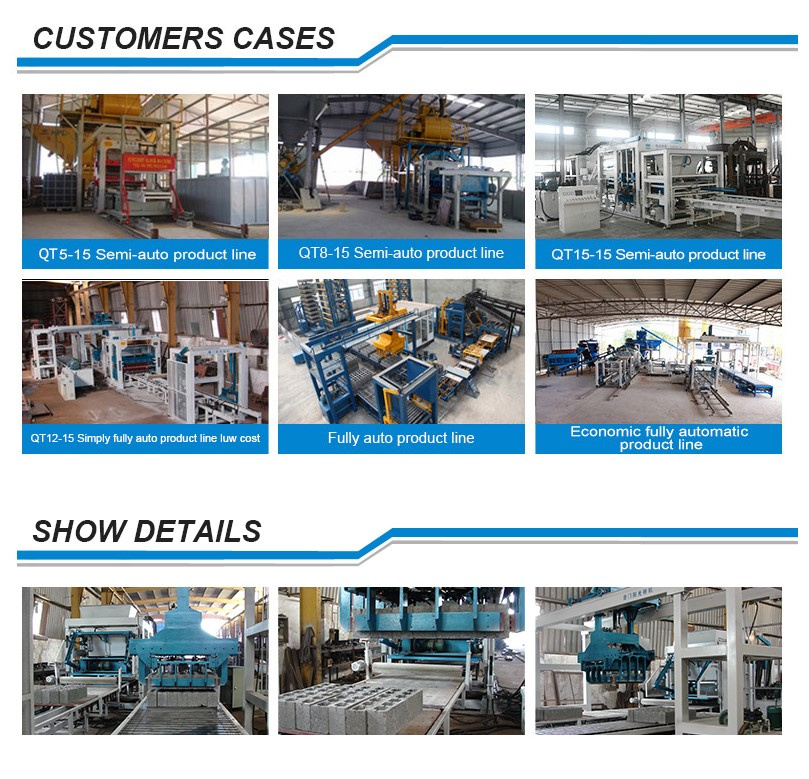

D. Block machine customer cases & quality details
E.QT3 Block Machine Technical Datas.| Parameters Model | QT3-20 (YQT3-20) |
| Pallet Size (mm) | 690*550*20 |
| Vibration Method | Platform & Mold Sympathetic Vibration+Cylinder Press |
| Vibration Frequency(Times/min) | 4000 |
| Molding Cycle(Seconds) | 13~18 |
| Pressure(Mpa) | 16 |
| Power Cons(kw) | 18 |
| Total Weight(Tons) | 4.6 |
| Dimension(L*W*H)mm | 5100*4700*2550 |
F.QT3 Block machine productvity| Machine type | Brick/Block type | Brick/Block Dimension(L*W*H) | Output capacity |
| Per mold | Per hour | Per day (10hrs) |
QT3-20 (YQT3-20)
Brick/block machine | Hollow block | 400*200*200mm | 3pcs | 700pcs | 7,200ps |
| Perforated block | 240*115*90mm | 10pcs | 2,400pcs | 24,000pcs |
| Solid block | 240*115*53mm | 20pcs | 4,500pcs | 45,000pcs |
| Paver brick | 200*100*60mm | 12pcs | 2,160pcs | 21,600pcs |
| Interlock brick | 225*113*100mm | 8pcs | 1,440pcs | 14,400pcs |
G.Sunlight group advantage 1.One-stop supply chain: Sunlight Group specially in making block machine,fully auto concrete block product line, fully automatic block collecting product line,block mold, block clamp etc.
2.Innovation: In last 25 years, Sunlight gained many patents,
All of our items use the special technology for platform & mold sympathetic vibration and hydraulic pressure forming way, combine frequency converter technique to make sure the highly density and high quality blocks.
3.Quality: Quality is our culture,Ten years lifetime.
4.Service,We are always supply customized scheme and offer the site planning and technical training for free. Enjoy lifetime maintenance

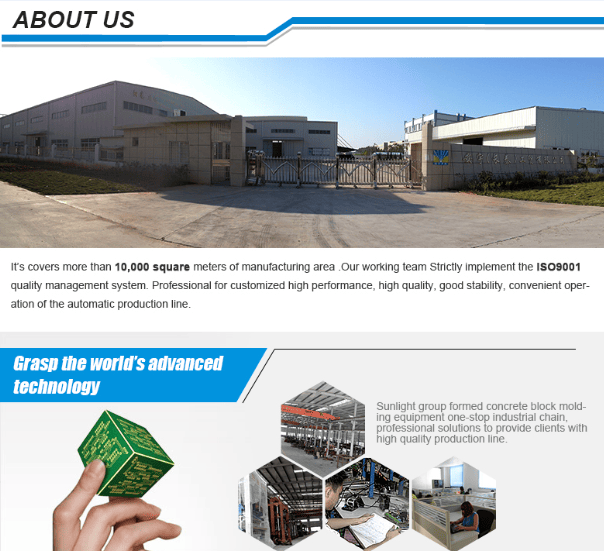

H. Sunlight group & workshop pictures
Xiamen Sunlight Xin Mechanic Equipment Co., Ltd. is One of subsidiaries of Xiamen Sunlight Group which formed concrete block molding equipment one-stop industrial chain, professional solutions to provide clients with high quality production line.
Sunlight Mechanic Equipment have twenty five years experiences on block machine making (for both normal concrete blocks and insulating blocks). It's covers more than 10, 000 square meters of manufacturing area. Our working team Strictly implement the ISO9001 quality management system. Professional for customized high performance, high quality, good stability, convenient operation of the automatic production line.
We mainly supply four types of solutions such as high-end fully auto product line, Economic fully auto product line, simply fully auto product line, semi-auto product line. With seven items main forming machine to match up and we design the QT15 and QT 18 are the highest productivity items in domestic market. All of our items use the special technology for platform & mold sympathetic vibration and hydraulic pressure forming way, combine frequency converter technique to make sure the highly density and high quality blocks.
Never stop innovation, Sunlight gained many technical patents. Professional technical level is well ahead of the domestic counterparts. Never slack quality, Quality is our culture. Sunlight gained series of quality certifications such as CE, BV etc, And good market feedback. Never delay service, We are always supply customized scheme and offer the site planning and technical training for free. Enjoy lifetime maintenance.
