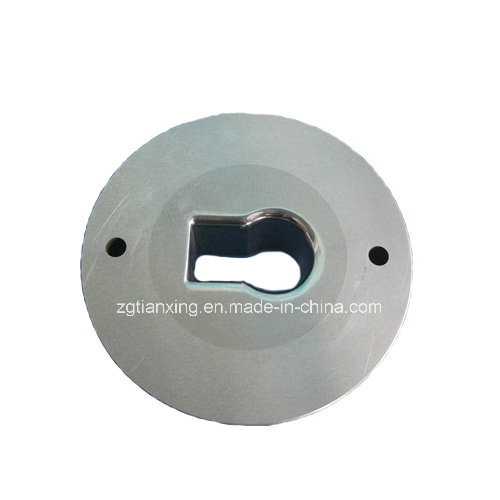

Cemented carbide mould for auto parts
Carbide tools is a very big important parts in tungsten carbide products!
We provide material advice to our clients, to ensure their seal rings are designed to their environments specification, whether it be high impact or continual wear.
TX Grade | Grade | ISO Grade | Hardness | Density | Bending Strength | Recommended Application |
T100X | YG6X | K10-K15 | 91-93 | 14.8-15 | ≥1600 | Suitable for little stress conditions, produce for small diameter steel wire, non-ferrous metal wire or rod. |
T100 | YG6 | K10-K20 | 90.5-92 | 14.8-15 | ≥2000 | Suitable for large stress conditions, produce for medium diameter of steel wire, non-ferrous metal wire or rod. |
T200 | YG8 | K20-K30 | 89.5-91 | 14.6-14.8 | ≥2100 | Suitable for steel, non-ferrous metal and alloy rod and tube,and is suitable for manufacturing machinery parts, tools materials and wear parts |
T200C | YG8C | K20-K30 | 89-90.5 | 14.6-14.8 | ≥2200 | Coarse grain size carbide,suitbale for drilling medium hard or hard stratum with f less than 14th and the coal bed containing hard rock;Coal Cutter Bits;Oil Field Bits,and Hammer Drill bits. |
T300 | YG9 | K20-K30 | 87.5-89 | 14.3-14.5 | ≥2200 | With good good resistance, impact resistance and good shock resistance, suitable for carbide drills, drill pills. |
T300C | YG9C | K20-K30 | 87.2-88.6 | 14.4-14.6 | ≥2300 | Coarse grain, with good wear resistance, suitable for drilling hard rock. |
T400 | YG10 | K20-K30 | 87-88.5 | 14.3-14.6 | ≥2300 | With good abrasion resistance, excellent impact resistance and good shock resistance, suitable for cemented carbide buttons and flat-tio-serrated compacts. |
T500 | YG11 | K30-K40 | 89-90.2 | 14.2-14.5 | ≥2300 | With good wear resistance, suitable for producing nail making moulds,nails specially for cement industry |
T500C | YG11C | K30-K40 | 86.5-88 | 14.2-14.5 | ≥2400 | Coarse grain, with good wear resistance, suitable for drilling hard rock. |
T600 | YG12 | K30-K40 | 86.5-88 | 14.1-14.4 | ≥2400 | With good toughness, suitable for making steel pipe, steel, non-ferrous metal and alloy rods, bars,tubes |
T700 | YG15 | K40 | 87-88.5 | 13.9-14.2 | ≥2400 | Low wear resistance, high bending strength and impact toughness. Suitable for cemented carbide dies,stamp dies and mould cores,etc. |
T700C | YG15C | K40 | 85-86.5 | 13.9-14.2 | ≥2450 | With very good impact and shock resistance,suitable for tungsten carbide dies and mould cores,etc. |
T800 | YG20 | | 83-85 | 13.4-13.6 | ≥2700 | Suitable for wear parts, plates and mechanical parts. |
T800C | YG20C | | 82.5-84.5 | 13.4-13.6 | ≥2700 | Suitable for cold heading moulds,cold punching moulds and cold rolls for standard parts and tools in various industries. |
TN100 | YN6 | | 90.5-92.5 | 14.8-15.1 | ≥1700 | With good corrosion resistant,excellent wear resistance,suitable for mechanical seal parts. |
TN200 | YN7 | | 90-92 | 14.7-14.9 | ≥1800 | With good corrosion resistant,excellent wear resistance,suitable for mechanical seal parts. |
TN300 | YN10 | | 86-88 | 14.3-14.6 | ≥2000 | With good corrosion resistant,suitable wear resistance. |
TX35T | | | 93-95 | 7.9-8.1 | ≥1700 | With good corrosion resistant,suitable wear resistance. |
Our Service: |
Carbide Rings 1.100% raw material 2.trial order accept 3.finished and blanks available 4.professional suggest
Application Field Having excellent wear resistance, these carbide rings are available in different sizes and shapes to meet the varied requirements of our clients. The specification we can make is OD 10~ 300, ID 3~ 260 and H 8~ 150 mm.Either blanks or finished products can be provided. |
|
|
|
|
|
|
|
|
|
|
|
Zigong Tianxin Cemented carbide Co., Ltd was founded in 2009, which is located in Zigong of Cichuan Our company consists of R&D production, sales and after-sales service, which are dedicated and offering high-quality tungsten carbide mould and material for customers both at home and abroad.
The series of our manufactures cemented carbide products are carbide sleeves, carbide rings, carbide rolls, cemented carbide rods, tungsten plates and strips, carbide nozzles, and various special shaped wear-resistant products.
To make quality products elaborately. We value the quality of cemented carbide, work for optimal solutions and continue to create value for our clients. In the course of value realization, we have always upheld our philosophy of "making quality cemented carbide with firm faith and acting with sincere attitude".
To make quality cemented carbide with firm faith means. This refers to the outstanding quality cemented carbide we pursue while production as well as the firm faith we hold in the effort of continuously upgrading product performance. With the hope that faith can move mountains, we will work together to create a brighter future for our employees, users, enterprise and society.
