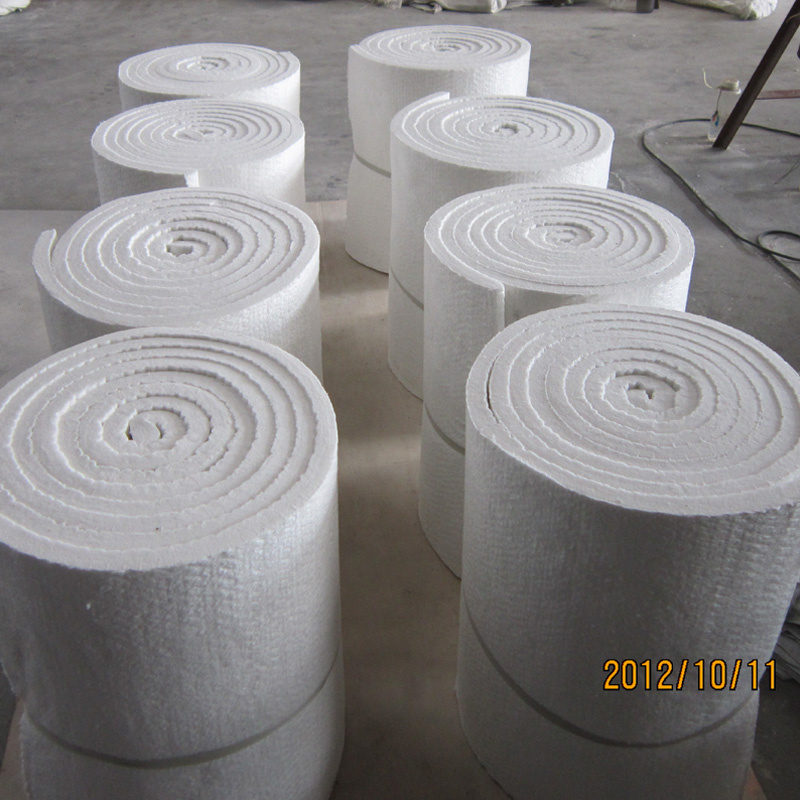

Ceramic Fiber Blanket (1260STD-1260HP-1430Hz-1600UH)

Ceramic Fiber Blanket (1260STD-1260HP-1430Hz-1600UH)
Price: US $ 0.01/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal

NR high temperature ceramic fiber blankets are made from selected high quality spun ceramic fiber, double sides mechanically needling makes it high strength and surface integrity ,NR ceramic fiber blanket have a good character of superior insulating performance, light weight, flexibility, resilience and chemical resistance, low thermal conductivity, low heat storage.


Standard Grade: Max service temperature 1100C[1800F]       Standard Grade: Max service temperature1260C[2300F]
High Purity Grade: Max service temperature 1260C[2300F]    Zirconia Grade: Max service temperature1430C[2600F]

Typical Application of NR Ceramic Fiber Blanket

High temperature pipe and casting mold insulation.
Repair, insulation and linings for furnaces, kilns, ovens, generators, reformers, boilers,
Duct and turbine insulation- Forging furnaces linings- High-temperature seals and gasket
Furnace door seals -Glass furnace crown insulation -Heat processing equipments
Car bottom furnace lining insulation  -Fire protective insulation or linings

NR Ceramic Fiber Blankets Characteristics

Double needled blanket  -Low density   -Low thermal conductivity  -Shorter heat up and cool down time
Resilience and resistance to thermal shock  -Flexible and easy to cut and install
Contain no organic binder  -Asbestos free

Standard   Density :  4, 6, 8 lbs./cu. ft. (64, 96, 128 kg/m3)
Standard Thickness: 1/2, 1, 1-1/2, 2 (12.5mm, 25mm, 38mm, 50mm)
Standard Width: 24 and 48 (610mm and  1220mm)
Standard  Packaging: In plastic bags and then in cartons
Delivery Time: General condition within 15 days

Grade 1260Blanket 1430Blanket 1500Blanket 1600Blanket
ClassificationTemperature ° C 1260 1430 1500 1600
Recommend UsingTemperature ° C 1100 1250 1300 1580
MeltingPoint ° C 1760 1760 1760 1760
Fiber Diameter μm 3.5 3.5 3.5 3.1
Fiber Length mm 250 250 150 100
Shot Content(>212 μm) % 18 18 15 0.11

Chemical Composition

A l  2  O  3 % 47.1 35 40 72
Si O  2 % 52.3 49.7 57.8 28
Zr O  2 % - 15 - -
Cr  2  O  3 % - - 2.0 -
Bulk Density k g / m 3 96;  128;  160; 128
Thermal Conductivity
W/(m. K)
Density in 128kg/m 3

400 ° C 0.10
600 ° C 0.15 0.14 0.13 0.09
800 ° C 0.24 0.23 0.21 0.13
1000 ° C   0.29 0.27 0.19

Available Size

mm
Length x Width x Thickness
7200x610x6 ;  7200x610x12.5;
7200x610x20;  7200x610x25;
3600x610x38;  3600x610x50;

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Grade: 1260c-1430c
Standard Size: 7200X610X25mm ; 3600 X610 X 50mm
Density: 64-160 Kg/M3
Delivery Time: Usually for Regular Order Within 14 Days
North Refractories Co. Ltd (NRCL) was founded by Mr Sun from 15 years ago and from the year 2007 we started our exporting business via our sales company Beijing North Refractories Co. Ltd, we focus on refractory and heat insulation materials manufacturing, serving for wide range industries where high temperatures exist. Such as steel & iron, aluminum, glass industry, ceramics, power plant, petrochemical, foundry industries and so on.

Main product list:

CERAMIC FIBER INSULATION: Ceramic fiber blankets, ceramic fiber boards, ceramic fiber modules, ceramic fiber bulk, ceramic fiber papers, ceramic fiber felt, ceramic fiber top out cone, ceramic fiber special shapes, ceramic fiber binders, ceramic fiber coatings.

ECO FIBER INSULATION MATERIALS: Soluble fiber blankets, soluble fiber board, soluble fiber paper

CALCIUM SILICATE INSULATION MATERIALS: Calcium silicate pipe section, calcium silicate 650C, calcium silicate 1000C, calcium silicate block 1100C, super calcium silicate, high density calcium silicate insulation shapes, non-wetting calcium silicate, water proof calcium silicate board, carbon fiber reinforced calcium silicate, glass fiber reinforced calcium silicate.

REFRACTORY BRICKS: High alumina refractory bricks, SiC bricks, Fused Cast Refractory Bricks.
