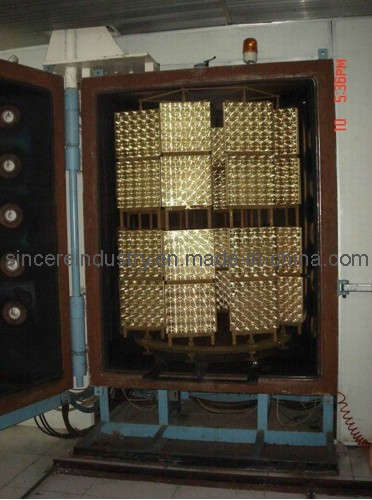

Ceramic Gold Coating Machine is operated by the principle of thermal evaporation by resistance heating that can be used for coating superhard films and gold-imitative films on the pre-treated tools.
Applied Industry: This machine is extensively used in the fields of ultrahard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
Remark:
1-We can make design the dimension of the equipment according to clients'special technique requiremnet.
2-All the vacuum coating machines are the environmental prodection products, which will replace the traditional galvanization industries in future.
Mode
Dimension | LH-800 | LH-1000 | LH-1250 |
| 800*1000mm | 1000*1000mm | 1000*1000mm |
| Coating mode and main confirguration | Eight multi-arc targets | Ten multi-arc targets | Twelve multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply |
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve |
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer’ s special technique requirement. |
