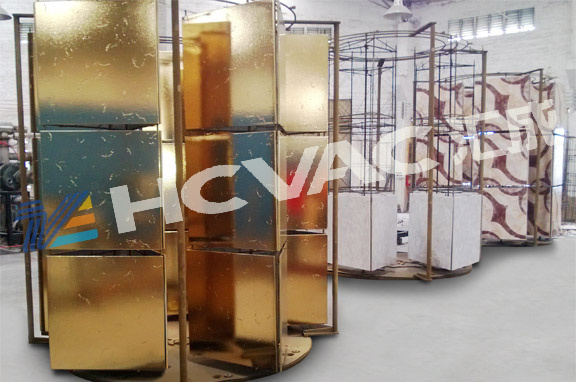

Ceramic golden color metallizing machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment
This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Please send us your detailed requirements. We will provide the best solution for you!
Mode
Dimension
|
JTL-900
|
JTL-1100
|
JTL-1300
|
JTL-1600
|
Φ 900*1000mm
|
Φ 1100*1000mm
|
Φ 1300*1200 mm
|
Φ 1600*1300 mm
|
Coating mode and main confirguration
|
3 electric-arc+2 pairs of plane rectangular cathode
|
6 electric-arc+2 pairs of cylindrical cathode+a pairs of plane rectangular cathode
|
6 electric-arc+4 pairs of cylindrical cathode+a pairs of plane rectangular cathode
|
8 electric-arc+8 pairs of cylindrical cathode+a pairs of plane rectangular cathode
|
Application
|
metal decorative coating
|
Film Types
|
Metal films, Dielectric films, Compound films, Reaction films, Muti-layer function films
|
Power source
|
Electric arc power supply, DC magnetron power supply, MF magnetron power supply. Pulse bias voltage power supply. ion source power supply.
|
Process gas control
|
Quality flowmeter + electromagnetism ceramic valve
|
Vacuum chamber structure
|
Vertical single(side) door, pump system postposition, double water-cooling
|
Vacuum system
|
Molecule pump(diffusion pump)+Roots pump +Mechanical pump (8.0*10 -4 Pa)
|
Pumping speed
|
Pumping time less than 15 minutes , from atmospheric pressure to 310 -3 Pa
|
Workpiece baking temperature
|
Normal temperature to 350 centi-degree PID control, radiation heating.
|
Workpiece motion mode
|
Public rotation Frequency control: 0-20 rotation per minute
|
Measure mode
|
Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
|
Control mode
|
Full automation control system PC+PLC/PC+HMI
|
Remark
|
We can design the dimension of the equipment according to customers special technique requirement.
|
