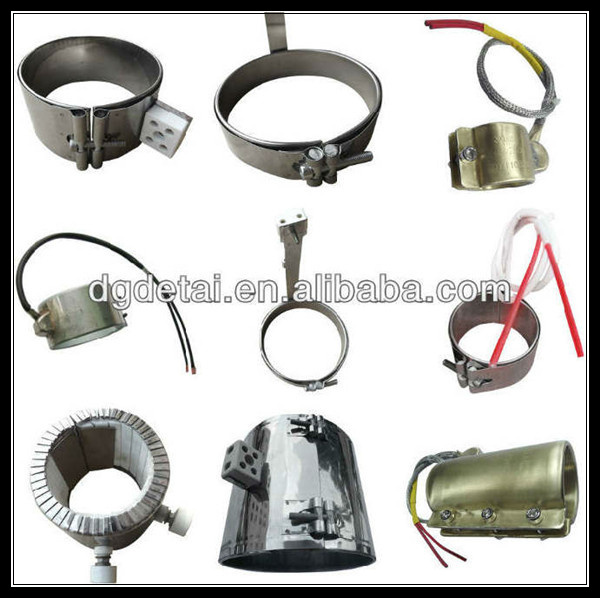

Stainless Steel Electric Ceramic Band HeaterIntroduction:We specialize in kinds of band heaters such as common ceramic band heaters, ceramica band heaters with air cooling, mica band heater, cast aluminum band heater and thermo blanket for plastics extrusion and injection molding applications!

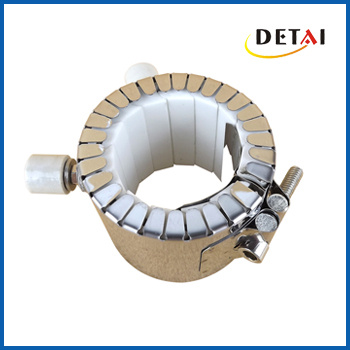

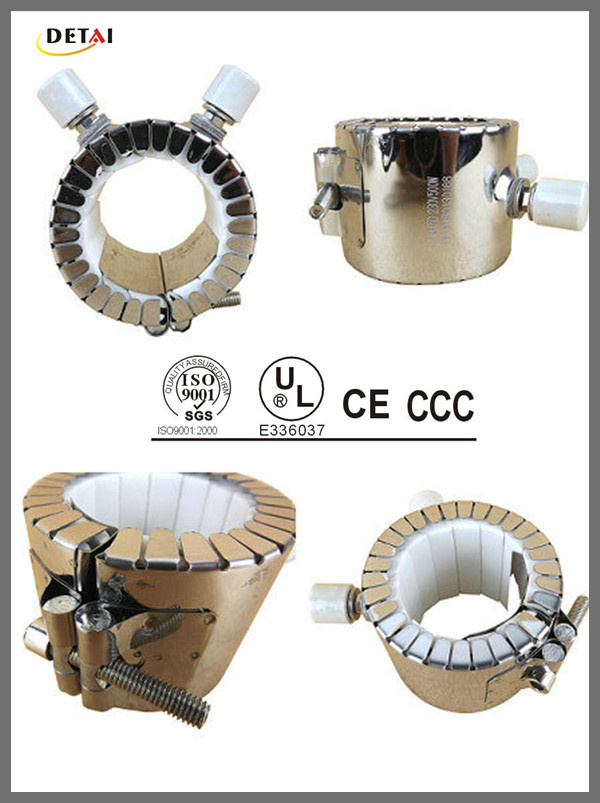

Ceramic band heaters from Detai provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications. These band heaters are constructed with a stainless steel shroud enclosing high quality ceramic knuckles through which run coiled high temperature nickel-chromium element wire.
Advantages:
1.Lower Operating Cost- Because of superior insulation, less heat escapes to the air and less wattage is required to maintain barrel temperature. Also the heater is safer because the external surface is much cooler.
2.Operator Comfort- With the majority of the heat going directly to your process, the ceramic band heater gives off significantly less heat to ambient air than a mica band heater.
3.Longer Heater Life- because all materials used are rated to operate at very high temperatures.
4.Higher Operating Temperatures
5.Flexible- easy to install and remove
6.Dual Heat Transfer- Heat is transferred through both radiation and conduction so a near perfect fit is not required as with other heaters, such as mica heaters.
Widely Applications:
1.Mainly applied to extrusion, casting and undershoot type mechanical. Operating temperatures up to 550 ° c, maximum surface load 8W/cm2 .
2.Characteristic is fast heating, high thermal efficiency, Significant energy saving (reduce energy consumption by 30%), high-temperature creep resistant, long life, high temperature resistance, insulation resistance, is the one of best electrical heater for the plastic extrusion machinery, plastic injection molding machinePlastic hollow mechanical, Plastic film blowing machine, chemical fiber machinery.
Applications:
1.Injection molding
2.Blow-molding
3.Plastic extrusion
4.Container, pipe, or tank heating
5.Process applications
When sending a inquiry,please specify
1.Diameter and height
2.Power and voltage
3.Single type or double type
4.Product Model number
5.Non-standard type ,please show us a drawing or photo
About us:
Design and produce according to the requirements of customers on operating voltage, power, size, length etc.
Dear customer, this is Angela , the customer service of Detai Electronical Co.,LTD, We are professional manufacturer in heating element line with 18 years advanced technology and experience.Welcome to the inquiry.we will reply you within 8 hours,Thank you.Happy day.
sheath |
304 Stainless Steel/brass |
insulation |
Ceramic,mica,brass |
heating resistance wire |
NiCr 80/20 wire |
Max. wattage density |
3 W/cm²
(Wattage tolerance: +5% -10%) |
Min size |
25*25mm |
terminations |
1 |
Clamping mechanisms |
2 |
Termination Styles |
3 |
Construction Styles |
Dongguan Detai Electronical Co., Ltd.Was founded in March of 1995 with original investment of RMB5 million.Our plant covers an area of 10, 000 square meters.We have 5 senior engineers, eight engineers, more than 20 engineering technicians and 450 workers
Our company specializes in manufacturing high-temperature heating tubes, stainless steel pipes, iron copper pipes, single-head pipes, copper pipes, aluminum tubes and non-standard industrial control products which are widely used in household appliances, ovens and other mechanical equipment.Our products are exported to Southeast Asia, West Europe, North America and other countries and regions.
We have the most advanced heating pipe manufacturing equipment and testing apparatuses.We use national GB4706 and 1-92/JB4088-85 standards and international standard in the production process for all-round monitoring.
We have attained ISO9001:2000 quality management system certification.Our products have passed the evaluation of CE, CQC and SGS certifications.We also have been the qualified supplier for many manufacturers.We insist on our philosophy of "surviving by quality and developing by credit" to strengthen the management, regard "surpassing the needs of the customers" as the purpose of management and warmly welcome customers from at home and abroad to send the samples to us for developing and come to our company for negotiation.We hope our products and services can benefit your company, and our cooperation can be mutually beneficial win-win situation.
