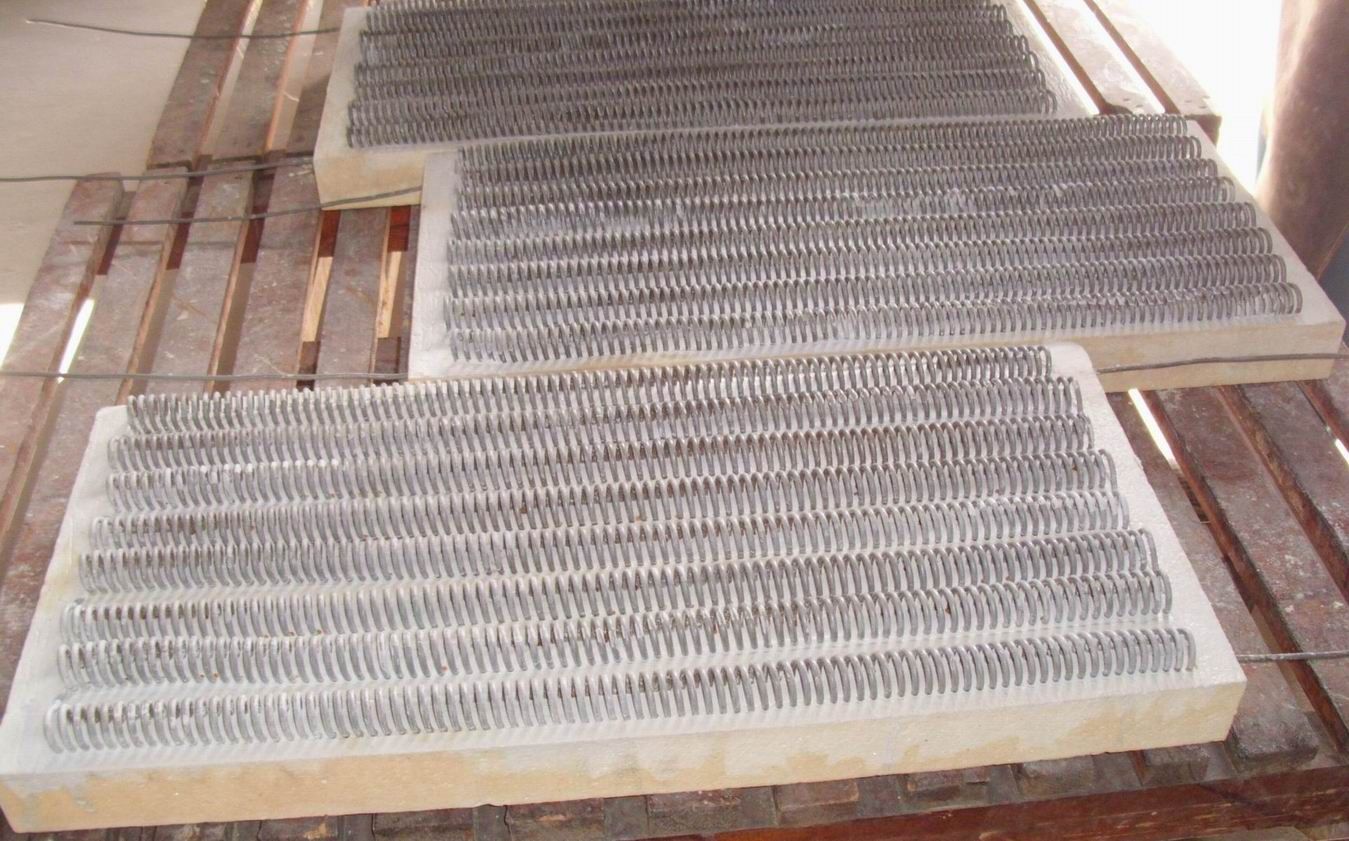

Ceramic fiber electric heat module is the lining module fitted for industrial and laboratory furnaces, serving as a whole partor separate ones for assembly.
1. It is characterized by energy-saving, easy installation and convenient maintenance.
2. Shrinking: 3-5%, Heater ID: 355.6mm
3. There are three types of furnace wire installation, Embedded type, Exposed type, Suspention type.
4. Ordinary working temperature: 1000-1400 degree C.
It's widely used in the field of muffle furnace, pre-heating furnace, box-type furnace, high temperature furnace, vacuum furnace ect.
Mode |
Rated
Power(KW) |
V
Rated voltage |
Degree C
Rated temperature |
Number of phases |
Connection of heating elements |
Furnace Chamber dimensions(mm) |
Power consum ption at no load(KW) |
Eating-up time at no load (min) |
XL-2-10 |
2 |
220 |
1000 |
single |
- |
200× 120× 80 |
≤ 0.4 |
≤ 25 |
XL-3-10 |
3 |
220 |
1000 |
single |
- |
300× 200× 120 |
≤ 0.6 |
≤ 30 |
XL-6-10 |
6 |
380 |
1000 |
three |
Y |
400× 250× 160 |
≤ 1.2 |
≤ 40 |
XL-9-10 |
9 |
380 |
1000 |
three |
Y |
500× 300× 200 |
≤ 1.8 |
≤ 55 |
XL-2-12 |
2 |
220 |
1200 |
single |
- |
200× 120× 80 |
≤ 0.6 |
≤ 40 |
XL-5-12 |
5 |
220 |
1200 |
single |
- |
300× 200× 120 |
≤ 1.0 |
≤ 50 |
XL-9-12 |
9 |
380 |
1200 |
three |
Y |
400× 250× 160 |
≤ 1.8 |
≤ 60 |
XL-6-14 |
6 |
380 |
1400 |
three |
Y |
250× 150× 100 |
≤ 2.0 |
≤ 50 |
XL-10-14 |
10 |
380 |
1400 |
three |
Y |
400× 200× 160 |
≤ 2.4 |
≤ 70 |
Sanmenxia kaite ceramic fiber Co., specializes in producing a variety of refractory fiber products. The leading products include fiber-needled blanket, felt, board, module and shaped fiber products. The shaped products are made by world-advanced vacuum-filtrating forming technology and by adding different kinda of additives and reagents for various working temperatures and circumstances.
