Home Mould Products chicken cube tablet press machine (ZP23 Pass CE)

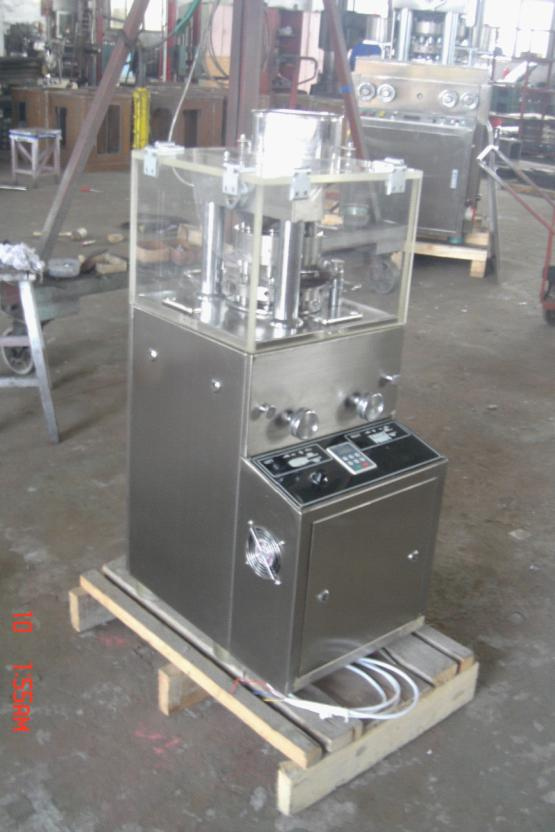

chicken cube tablet press machine (ZP23 Pass CE)

chicken cube tablet press machine (ZP23 Pass CE)
Price: US $ 4000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
ZPW23 Rotary Tablet Press

Main application:
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics .(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit .)
Operating principle:
1.The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexi glass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain. All monitors and operating components are in good order. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
3.Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically. Combining machine with electricity, equipped with touching key and screen. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
4.Ransmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
5.Powder-absorbing apparatus could absorb the powder in the piece-pressing room.
Technique parameter:
TYPE ZPW23
Dies (sets) 23
Max. Pressure (Kn) 100
Max. dia. of tablet (mm) 45
Max. Thickness of tablet(mm) 12
Max. Depth of fill (mm) 25
Max. output of one-layer tablets (PCS/h) 69000
Max. output of two-layer tablets (PCS/h) 34500
Max. output of triple-layer tablets (PCS/h) 23000
Rotational diameter (mm) 445
Rotational speed of revolving table (r/min) 10-25
Diameter of middle mould (mm) 45
Highness of middle mould (mm) 30
Length of up and down punch pole (mm) 32
Length of up punch pole (mm) 175
Length of down punch pole (mm) 180
Overall dimensions(mm) 1000×1250×1900
Net weight (kg) 3200
Motor model YU132M4A
Motor (kW) 7.5
Voltage(V) 380





Delivery Time: 30 working days
Payment:40% T/T in advance.70% balance must be transfer before shipment.
TYPE ZP-5 ZP-7 ZP-9 ZP12
Dies 5 7 9 12
Max.pressure(Kn) 40
Max.Dia.of Tablet(mm) 12round shape
Max.Depth of Fill(mm) 15
Max.Thickness of Tablet(mm) 6
Turret Speed(r/min) 30
Production Capacity(pc/h) 9000 12600 16200 21600
Motor(Kw) 1.5
Overall Size(mm) 480*630*1100
Net Weight(Kg) 260
Prod Model: ZP23
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 90*64*128cm
Gross Weight: 320kg
Finished Dosage Form: Tablet
Type: Preparation Machinery
Certification: SGS
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. Has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard., Product pass CE and ISO9001 certificate, with high quality and good reputation.

We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.

Our products sells well throughout China and Southeast Asia. The products have won good reputation and praises among all customers, from at home and abroad. The management motto of our company is "Develop through quality; Strive for survival through quality".
