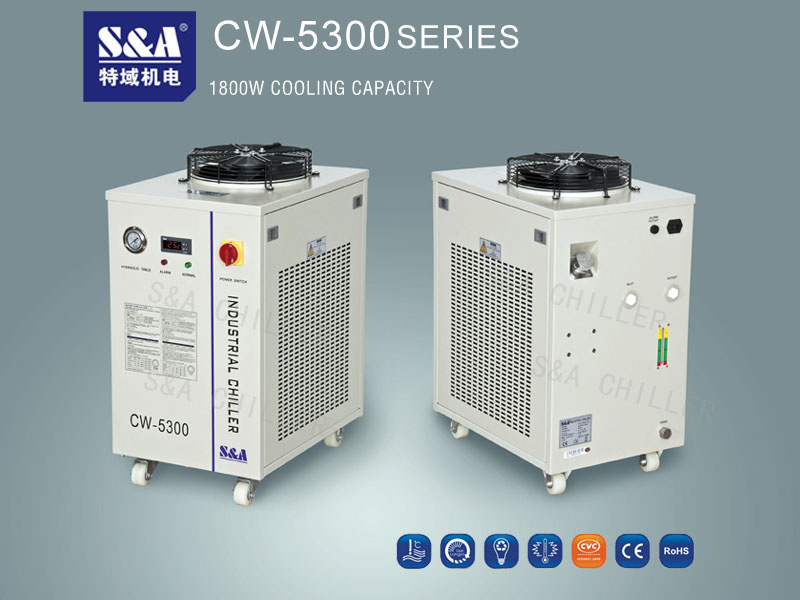

Industrial chiller CW-5300AH/BH/DH for maximum 2PCS of gross power in 18KW mold engraving spindle.
CW-5300AI/BI/DI for maximum 4PCS of gross power in 18KW mould engraving spindle.
Features:
1. Anti-incrustation protction;
2. Cooling capacity up to 1800W;
3. Precisely temperature control: +-0.3C tolerance;
4. Water flow, over high/low temp alert, overcurrent protection.
5. Electrical source option: 220V 50Hz / 220V 60Hz / 110V 60Hz
| Model | CW-5300AG | CW-5300BG | CW-5300DG | CW-5300AH | CW-5300BH | CW-5300DH | CW-5300AI | CW-5300BI | CW-5300DI |
Voltage | AC 1P 220V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V |
| Frequency | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz |
| Current | 0.8~4.5A | 1~4.2A | 1~6.5A | 0.8~4.5A | 1~4.2A | 1~6.5A | 0.8~4.5A | 1~4.2A | 1~6.5A |
| Compressor power | 0.615KW | 0.72KW | 0.68KW | 0.615KW | 0.72KW | 0.68KW | 0.615KW | 0.72KW | 0.68KW |
| 0.82HP | 0.96HP | 0.91HP | 0.82HP | 0.96HP | 0.91HP | 0.82HP | 0.96HP | 0.91HP |
| Refrigeration capacity | 6274Btu/h | 7638Btu/h | 7266Btu/h | 6274Btu/h | 7638Btu/h | 7266Btu/h | 6274Btu/h | 7638Btu/h | 7266Btu/h |
| 1.84KW | 2.24KW | 2.13KW | 1.84KW | 2.24KW | 2.13KW | 1.84KW | 2.24KW | 2.13KW |
| 1586Kcal/h | 1931Kcal/h | 1837Kcal/h | 1586Kcal/h | 1931Kcal/h | 1837Kcal/h | 1586Kcal/h | 1931Kcal/h | 1837Kcal/h |
| Refrigerant | R-22 / R-410a |
| Refrigerant charge | 650g | 750g | 680g | 650g | 750g | 680g | 650g | 750g | 680g |
| Precision | ±0.3C |
| Reducer | Capillary |
| Protection | Overcurrent protection for compressor, flow alarm, over temperature alarm |
| Pump power | 0.03KW | 0.05KW | 0.1KW |
| Tank capacity | 12L |
| Inlet and outlet | Rp1/2" |
| Max. lift | 10M | 12M | 25M |
| Max. flow | 10L/min | 13L/min | 16L/min |
| N.W | 44Kgs |
| G.W | 50Kgs |
| Dimension | 59 X 38 X 74 cm (L X W X H) |
| Package dimension | 67 X 51 X 93 cm (L X W X H) |
