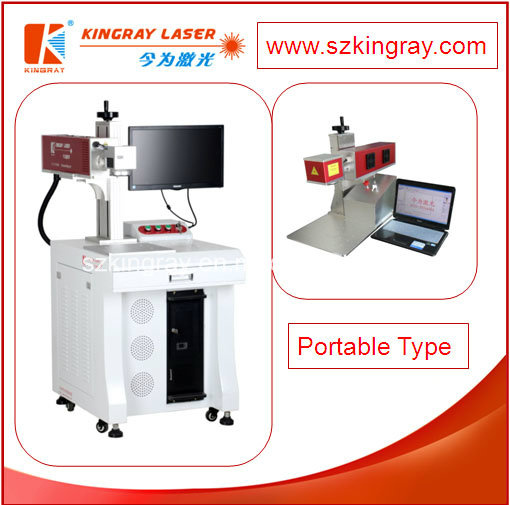

China Factory Price Portable CO2 Laser Engraving Cutting Machine/Laser Engraver
| Price: |
US $ 100-15000unit |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1unit |
| Pay Type: |
L/C,T/T,Western Union |
Introduction:CO2 laser marking machine is the galvanometer scanning system type using CO2 as working medium. The wavelength is 10.64um which can be easily absorbed by most non- metal materials and have a very high electro-optic conversion rate. It uses fundamental mode to output laser that makes it high and stable beam quality. Contact-free processing, non mechanical wear and deformation, consumable free, low process cost, but with high process efficiency and high speed, flexible to control, and compatible with automatic production line. Features:1. Imported MFR CO2 laser tube, optics system and high speed galvanometer scanning to make it long working life, high precision, excellent performance and maintenance-free.2. Comparing with traditional inject printer, it has much faster marking speed but lower marking cost.3. Great anti-counterfeiting performance and indelible marking effect.4. Marking-on-the-fly and rotary marking are available, as well as large-area XY axis worktable for automatic segmentation marking.5. Software has strong functions, supported graphic data format like PLT, PCX, DXF, BMP and auto-generated serial number, date, bar code and QR code. Application Industries:Widely used in medical packaging, electronic components, food and beverage, ceramic sanitary ware, craft gifts, greeting cards, books and periodicals, plastic glasses, high-grade boxes of cigarette, wine and tea, craft wooden comb and daily cosmetics etc.Suitable Materials:Suitable for PVC, ABS, PMMA, PC, AK, EP, glass, bamboo products, leather, plastic, cloth, paper, etc.
Technical Parameters:| Type/Parameter | KRCO2-10W | KRCO2-30W |
| KRCO2-50W | KRCO2-100W |
| Laser type | CO2 |
| Laser rated power | 10W | 30W | 50W | 100W |
| Wavelength | 1064nm |
| Beam quality | <1.2 | <1.2 | <1.2 | <1.2 |
| Min. character size | 0.4mm | 0.4mm | 0.6mm | 0.6mm |
| Min. line width | 0.01mm | 0.01mm | 0.15mm | 0.3mm |
| Repetition accuracy | ±0.002mm | 0.01mm |
| Marking speed | 250C/S | 250C/S | 300C/S | 400C/S |
| Marking area | 110mm×110mm-600mm×600mm |
| Q-switched frequency | 0.2KHZ-50KHZ |
| Electric requirement | 220V±10%50HZ/10A |
| Cooling method | Air cooled | Water cooled |
| Overall dimension | 400×480×500 | 800×680×1000 | 1000×680×1200 | 1000×680×1500 |
| Total weight | 60KG | 100KG | 150KG | 200KG |
| Power consumption | 500W | 600W | 2KW | 3.5KW |
| Prod Model: |
KRCO2-10/30/50/100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Krco2-10W/30W/50W/100W |
| Laser Type: |
CO2 |
| Wavelength: |
1064nm |
| Marking Area: |
110mm*110mm-600mm*600mm |
| Cooling Method: |
Air Cooled/Water Cooled |
| Export Markets: |
Global |
Shenzhen Kingray Laser Equipment Co., Ltd is located in Bao'an district, Shenzhen, the high-tech coastal city in China. Kingray was founded in 2008 (previously named Tongchuang Laser, founded in 2005), a high tech enterprise specialized in design, manufacture, marketing and post-sale service of industrial laser applications such as UV laser for micro cutting, precision fiber laser cutting, various types of laser welding and laser marking, integrated seamlessly industrial robot for production lines.
Kingray has equipped the most advanced production and testing equipment like Renishaw laser interferometer & 2D photogrammeter, Coherent laser power meter and etc. Kingray has a professional develop&research team with staffs in optics, electron, precision machinery and software control. Kingray has got the ISO quality system identification and holds dozens of patents and two software copyright in laser equipment filed. Kingray's products are with excellent performance, easy to operate and maintain, widely used in LED lighting, auto parts, plumbing, sanitary ware, electromagnet&cell, sensors, precision machinery, jewelries, fiber glass, engraving of bamboo ware & wood, gifts, food packaging, tobacco packaging, Logo marking, engraving, welding and precision cutting of 3C digital parts like iPhone, Samsung, Huawei, Lenovo.
Through the efforts of our professional R&D team, we have developed several types of industry specific laser machines that are integrated seamlessly with industrial robot, and have broken through the tranditional manual operation laser process equipments to provide labor-saving and financial-saving to our customers, and earned high recognition from clients.
