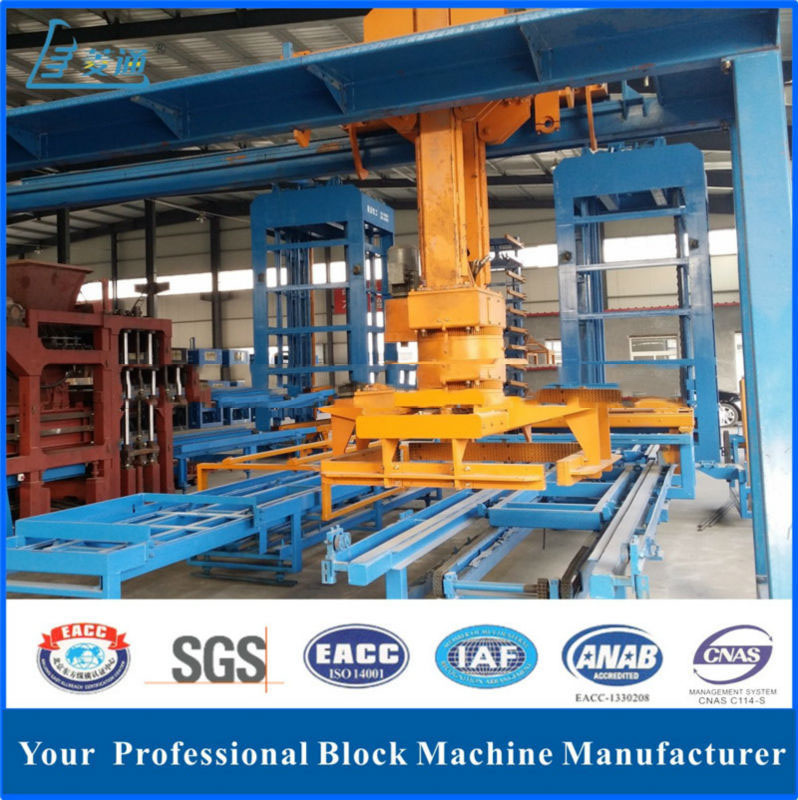

Introduce of LTQT8-20 baking free block machine
Main features of block making machine
This machine has simple operation procedure, advanced forming method. While working only the host computer is running for a long time and other equipment is instant operation so as to greatly improve the performance of its electricity. It can move fast by adopting hydraulic pump system of high emissions and unique production process can recover the cost within a short time .
1. Special welding technology ensure the high intensity of the fuselage and increase the service life of the equipment.
2. The suspension-type vibration mode and the rubber spring vibration isolation can reduce noise maximumly.
3. Multi-axial rotation fabric form can easily implement secondary cloth of raw material and easily uniform fabric and rapid molding brick.
4. The mold is made of special materials of heating processing technology, surface hardness is more than national standard.
Technical Parameters
Technical parameters |
Dimensions of main frame(L*W*H) | 4500*1850*2850mm |
Molding height | 50-190mm |
System pressure | 12Mpa |
Virbration forcement | 70KN |
Dimension of pallet | 950*900*30mm |
Whole weight | 8600KG |
Molding cycle | 20s |
Power of main frame | 30KW |
Molding Cycle | 15-20 seconds |
Dimensions of pallet | 1150x950x30 mm |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, gravel, perlite, and other industrial wastes,slag, gangue, |
Applied Products | concrete blocks, solid/hollow/cellular products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions. |
Capacity
Block sample | Size | Pieces/time | Pieces/H |
Hollw block | 390*190*190mm | 8 | 1440 |
Multi-row perforated brick | 240*115*90mm | 21 | 3780 |
Standard block | 240*115*53mm | 42 | 7560 |
Pavment brick(single color) | 200*100*60mm | 28 | 3600 |
FAQ:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:200-260T
Why choose us ?
1.Passed CE Mark
2.Famous trademark of China
3.National key high-tech enterprise
4.ISO quality system certificate enterprise
5.National enterprise abiding by contract and keeping good faith
6.Top ten influential brand of China brick and tile industry
7.Supporting institution of Shandong machinery research institue
8.First place in production and sales of block machine and tile making machine in China
Attentions:
If you are interested in our products, please do not hesitate to contact us on Trademessenger client. Or, you can write message to send us an inquiry.
Your inquiry will be given prompt attentions and reply within 8 hours
Contact us:
Jeanne
Sales Manager,Export Department
Tel: +86 18280428520
Shandong Lingtong Heavy Machinery Co., LTD.
Add:No.88 Economic Development Zone,Gaotang District Liaocheng City,Shangdong Province,China.
Website: en.sdlingtong.com
We are offering a wide range of concrete block making machine that is perfect for concrete block making especially casting of hollow, solid concrete blocks. Fabricated following specified industrial procedures, these are widely acknowledged for their sturdy construction, excellent performance and durable finish standards. The bricks making plant, provided by us, is higher in grades, performance, and working life. The blocks making plant can be availed from us at competitive prices.
The bricks making plant is a fly ash brick making vibro-hydraulic press, which is a fully automatic machine. The bricks making plant is acclaimed by the worldwide clients for its superb efficiency and long working life.
As as a specialized manufacture and exporter for this product in China, we can supply block making machine with high quality and competetive price. Hope can cooprate with you. Compared with traditional clay brick, AAC block is the most economical and eco-friendly building material. As a kind of new building material, AAC block will be the ideal choice for all kinds of modern buildings.
We are prominent manufacturer, exporter, trader and supplier of block making Machines, concrete block machines, Interlocking paver Machines, block Machines, AAC block making machineand cutting machines, brick plants, etc. These machines are widely used for building construction and are appreciated for application specific design, precision functionality, optimum performance, longer serviceability, impact resistance, high tolerance and strength.
