We ensure sincerely to customer:
1. Over 10 years experience
2. Highly qualified engineering team
3. Competitive price
4. High-tech development direction
5. SGS certification
6.Service Items
a.We will send you process pictures of mould druring mould process each 10 days.
b.We will send you samples and video for you check every time of testing mould.
c.We will send you testing report of mould each time.
7.After service:We ensure that we will do our best service , cooperation and satisfy you well as sure.
Photoes show of company

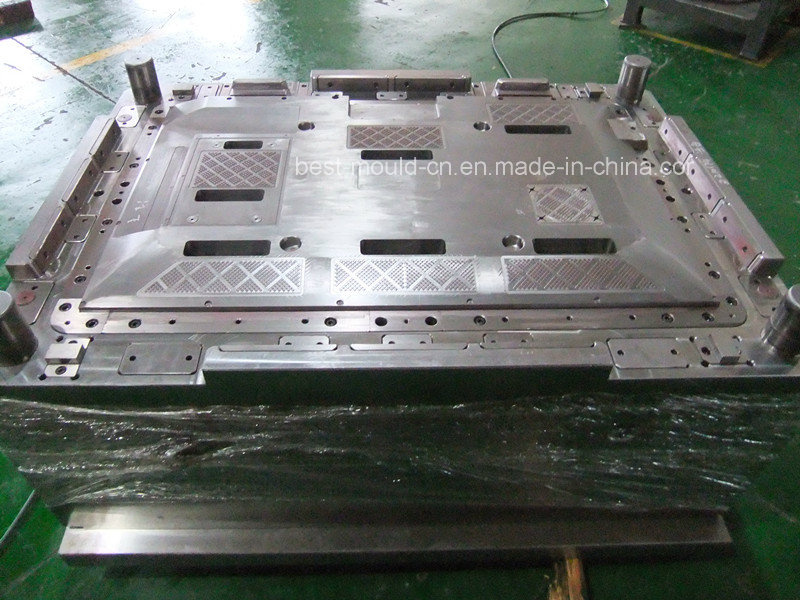

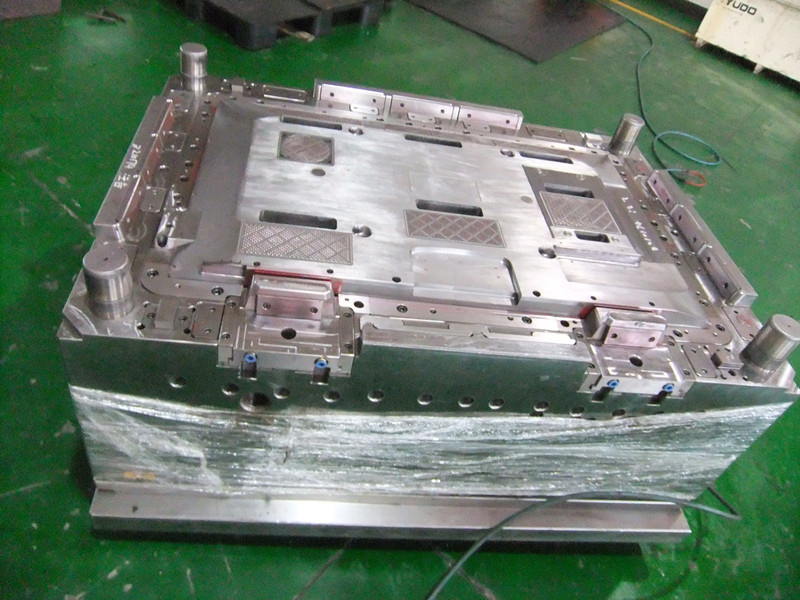

Simple Key Specifications:
SGS certification we got
1. Steel of Cavity and core: 2738
2. Mold base: 45# (Customized)
3. Cavity: 1x1Cavity
4. Mold gate way: Yudo hot runner
5. Cooling system: Enough cooling
6. Surface: Enough polishing
7. Tolerance: 0.01mm, 2D/3D control
8. Full automatic
9. Mould life: 1, 000, 000 shots
10. Finishe time for first sample: 45 days.
Key Specifications/Special Features:
In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this mould. This rack choose PE material, then advice choose hard enough steel
1. Customized designs, sizes and frames are accepted
2. Mould steel: 2738 forging for cor and cav, 45# for mold base (customized)
3. Mould cavity: 1*1
4. Mould software: Choose UG for 3D design, AutoCAD for 2D drawing, mold flow for runner analyze
5. Mould size: 820 x 450mm (depends on client's machine upon changing mold size)
6. Mold fix machine: 850T on injection molding machine
Plastic material: ABS (on normal choose ABS)
7. Mold cycle time: 45 seconds/shot (without cool water when test this mold)
8. Mold doff way: Automatic by ejectors and air spring (Hasco standard)
9. Mold lifespan (minimum): 1, 000, 000 shots
10. Mold base: Copy standard mold base
11. Mold gate way: Hot runner (customized)
12. Mold packing: Standard wooden case
13. Minimum mold order should be one set
14. Mold shipment will be arranged within seven days after confirm samples and received balance
15After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mold minimum life and technical Aegis.
Features:
1) We can provide plastic moulds for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced mold tooling equipment. We also have established a CAD / CAM / CAE mold design and development center
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
| Material of Core & Cavity | Cav. | Mould Base | Mould life(shots) | Surface/Texture |
P20 718H NAK80 2316
SAARSRAHL AG 1.2311 | 1*1 | LKM LKM (HASCO 50#) DME | 300000 500, 000 1000, 1000 | EDM MOLDTECH High Polish |
|
|
|
|
|
| Machine | Lead Time | Special | Advantage |
|
| Advance CNC, EDM, W-cut | 30 Days | Glossy Surface | High Polish |
|
|
|
|
|
|
| Products Details: |
|
|
|
|
| Dimension (mm) | Material | Dimension control | Tolerance |
|
|
| 2D/3D Device | 0.02mm |
Wenzhou Best Mould & Plastic Products Manufacturing Co., Ltd. is lies in "base of Chinese precision mould, Yueqing, Zhejiang, specialized in plastic mould, automatic stamping, die and Zinc, Aluminum casting die, at the sametime, supplying all kinds of machined and assembly for products, Due to requirements from Marketing. Our products are exported to European and American, South Asia and Middle East etc countries and area.
Wenzhou Best Mold Manufacturing Co., Ltd. is founded in 2003, we can supply from design for product appearance and Construsture, mould to mould made completed service, adopting ISO9001: 2000 quality management model, with CAD/CAM/CAE system and advanced working station, creating network system, successful in enjoying source, forming high express of information data. The mould design and machined are made together to assure powerful manufacturing high and precision mould, good communication with our pressure customer, let customers know progress in mould product.
We have CNC machining center, wire erose, EDM machine etc machined equipment, to assure of our customer high effiency in mould production, Best-Mould is equipped with advanced equipment and techical, strict quality management, reasonable price, supplying with satisfied service to our customer.
