[ China Top Quality] Roof Step Tile Roll Forming Machine
Price: |
US $ 21000-23800set |
Trade Terms: |
FOB,CIF,DAP |
Min Order: |
1set |
Pay Type: |
L/C,T/T |
[ China Best Quality] Roof Step Tile Roll Forming Machine
Application
Metal roof tile is widely used for commercial metal buildings, associated with industrial parks and retail developments. Roof tile roll forming machine is the essential for its production.
Features
1. Hydraulic decoiler with breaking device is equipped for coil processing
2. Rollformer with tooling
3. Hydraulic cut-off machine
4. Hydraulic pressing device
5. Run Out Table or automatic stacking device
6. Mitsubishi(Japan) PLC and Touchable Screen are used for data processing and setting
7. roll forming speed: 10-20m/min

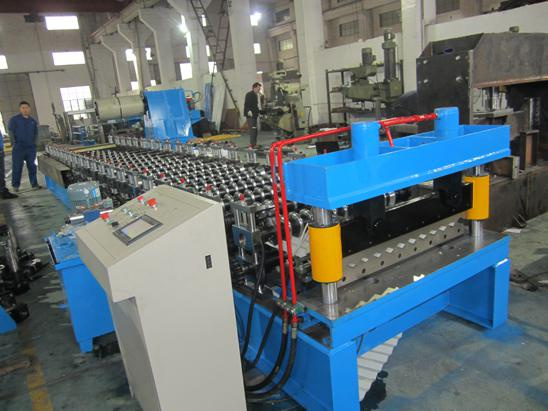

Machine Picture
Goods Delivery
Technical Data |
suitable material | PPGI Coil |
material width | 914/1000/1250 |
material thickness | 0.4-0.8mm |
roller material | 45# steel, coated with chrome |
main motor power | 5.5Kw |
hydraulic cutting power | 3Kw |
cutting material | Cr12 |
Prod Model: |
RF-RP |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Suhang |
Voltage: |
380V |
Hydraulic Power(W): |
4kw |
After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Control System: |
PLC Control |
Steel Thickness: |
0.4-0.8 |
Roller Stands: |
16 |
Main Motor Power: |
5.5kw |
Forging Forming Method: |
Mold Forging |
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.
Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.
Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.
Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
