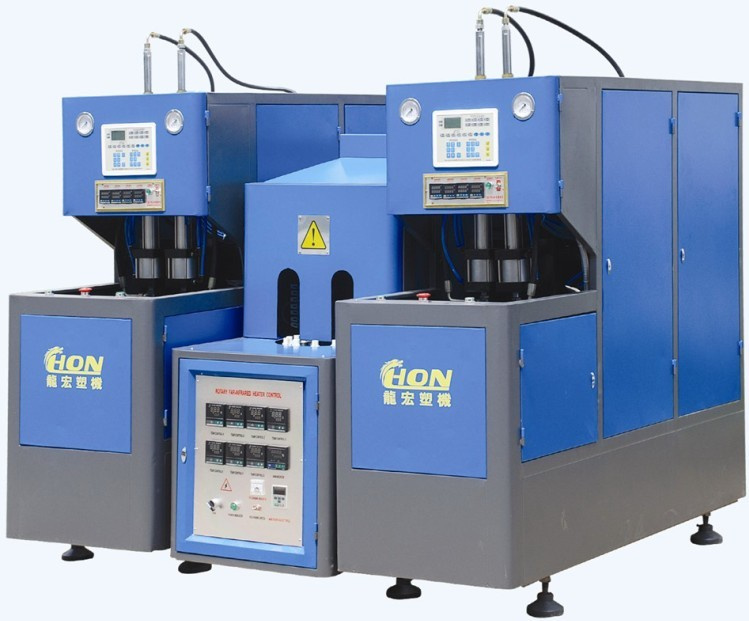

CM-8Y heat-resistant bottle blow molding
Specification: :
CMCM-8Y heat-resistant bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
* Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
* The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
* The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
* The machine can be operated in the step-by-step mode and the semi-auto mode.
* The machine is small with low investment, easy and safe to operate
Main parameter: |
Model |
CM-8Y heat-resistant |
Container |
Product material |
|
PET |
Volume |
L |
0.1-2 |
Theoretical output |
Pcs/h |
800-1000 |
Preform length |
Mm |
15-350 |
Preform inner diameter |
Mm |
φ5-38 |
Mould |
Max.mould plate Diameter(L x W) |
Mm |
350*380 |
Max.mould thickness |
Mm |
180 |
Clamping force |
KN |
45 |
Mould opening stroke |
Mm |
16 |
Machine size and weight |
Main machine (L x W x H) |
Cm |
160*60*161 |
Main machine weight |
Kg |
500 |
Heater (L x W x H) |
Cm |
187*63*145 |
Heater weight |
Kg |
250 |
Power |
KW |
24.8 |
Zhengjiang Huangyan Longhon Plastic Machinery Factory. Our factory is more than 20 years. We have very good quality and good after-sale service. Our company is an company specializing in PET Blow Molding Machine and Preforma Mold and Cap Mold for water, tea and juice. We have ISO9002 and ISO9001 and CE certification. "Honesty, Cordiality and Sincerity" is our company's spirit.
Welcome to visit to our factory and check the quality of our machines If you have time.
Quality is our mark. I will try my best to cooperate with you well. Don't hesitate to contact me if you have any questions! So that both parties can cooperate soonand our company can serve you better.
