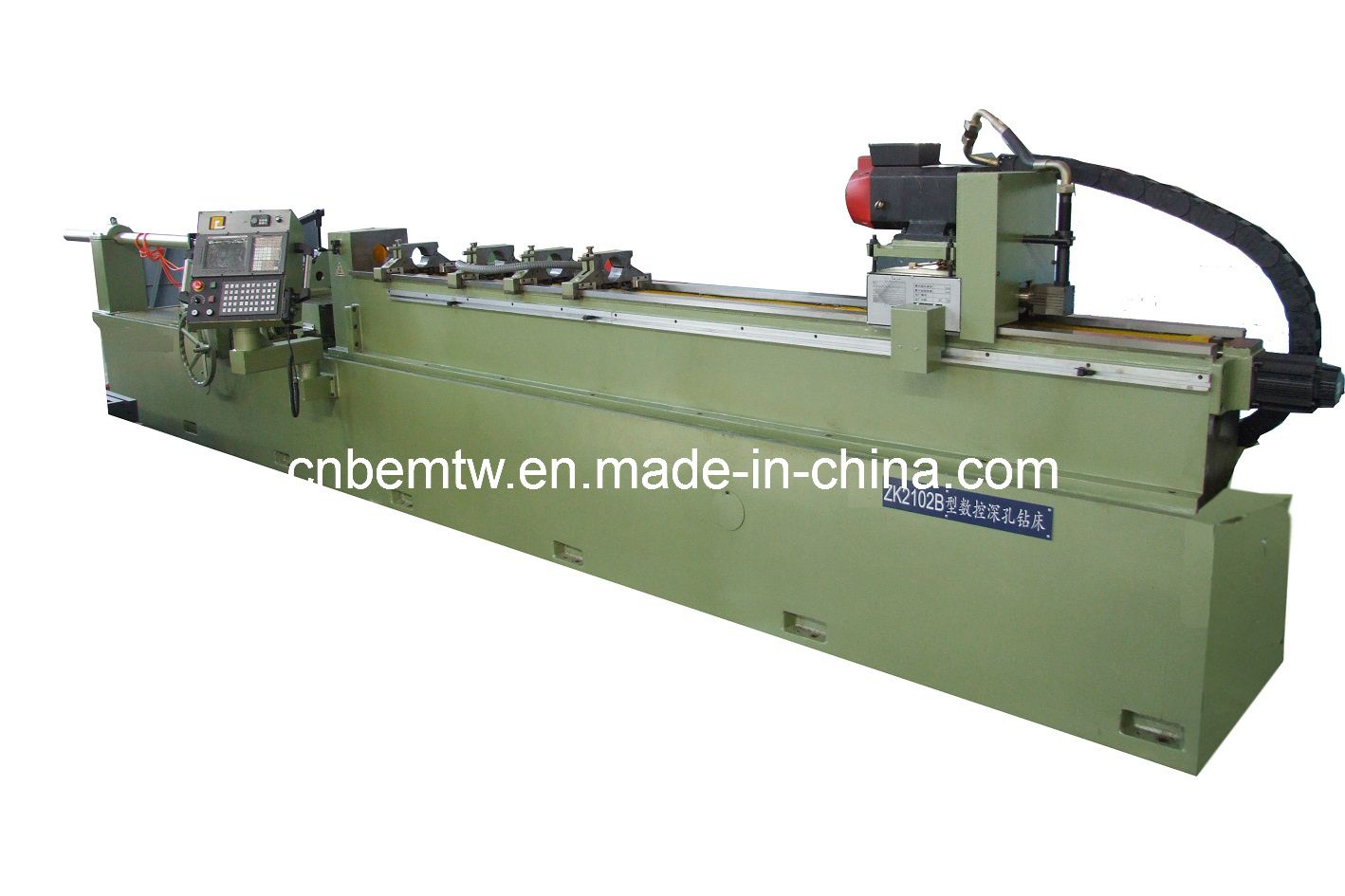

CNC Deephole Drilling Machine (ZK2102B)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
This machine is a special deephole drilling machine with properties of high efficiency, high accuracy and high automation. It adopts external-chip removing method (gun drill method), through once continues drilling, achieved the machining accuracy and surface roughness normally under the procedures of drilling, expanding and reaming. The machine is controlled by CNC system with the function of both single action and automatic recycling so that it can meet the requirements of small batch and large batch machining. The machine can drill through hole, blind hole and step hole. The machine can be widely used in the line of automobile and motorcycle, mould, military and aeronautics.
|
specifications |
technical data |
|
Range of drilling dia. |
8-25mm |
|
Max. drilling depth |
2500mm |
|
Spindle speed of headstock |
380r/min |
|
Range of drilling box spindle speed(stepless) |
600-4000r/min |
|
Feedrate range (Z axis) (stepless) |
10-500mm/min |
|
Pressure range of coolant system |
1-10MPa |
|
Flow range of coolant system |
6-100L/min |
|
Rapid travel speed of feeding carriage |
2m/min |
|
Torque of feed motor |
7N⋅m |
|
Motor power of drilling box |
4kW |
|
General motor power(approx.) |
19kW |
|
Machine weight |
8t |
| Prod Model: |
ZK2102B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
CNC |
| Structure: |
Deep Hole Drilling |
| Layout: |
Horizontal |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
Beier Machine Tool Works Co., Ltd. is a large scale Chinese state-owned enterprise engaged in machine tool industry. It is formerly known as Beijing No. 2 Machine Tool Works founded in 1953. The company covers an area of 100, 000 square meters, and it's one of the 18 key enterprises in China's machine tool manufacturing industry. As an executive member of the CMTBA(the China Machine Tool &Tool Builders' Association, it has won more than 70 technical prizes of different standards in China and made contribution to the development of Chinese machine tool industry.
It is also an innovative and technologically advanced enterprise in Beijing, and has passed the ISO9001 (approval certificate of international quality control standard). Our company continues to use the brand name, "beier" which was recognized as public brand in China in 1993.
The main products of Beijing No. 2 Machine Tool Works Co., Ltd are divided into three categories: The grinders, super-finishing machine, and special equipment which are widely used in various fields, such as aviation, aerospace, electronics, bearings, metallurgy, machine tools, machine engineering and so on. The series MKS1320, 1332, MKS 1420, 1432 CNC universal cylindrical grinder and CNC terminal surface cylindrical grinder have established good reputation among the customers and many of our products have received recognition due to its high-quality. The CNC Cylindrical Grinder, high-precision Cylindrical Grinder and super-finishing machine technology are in a leading domestic level.
Beijing No. 2 Machine Tool Works Co. Ltd. Continues its scientific research and development system, precision manufacturing technology, assembly and manufacturing capacity and sales service network.
The company has a number of highly qualified technical and management personnel. Nearly 100 staff members have been sent abroad for training in some well known enterprises.
The Company is equipped with modern machineries and equipment. For example, the 6-horizontal machining center, CNC gantry guide way grinder, box-type parts flexible production lines.
We own high-precision roundness measuring equipment, three-coordinates measuring machine, Dual-Screen laser interferometer, contour and surface roughness testing machine and other sophisticated detection equipment, and we are one of the second-class measuring units in China.
Our company is with high capabilities of research and development and managing level. After years of continuous introduction of advanced technology, innovation, and resource optimization, it has become a well-organized and modern technology enterprise.
Beijing No. 2 Machine tool Works Co., Ltd follows the principle of "pragmatism, refinement, innovation, development" in accordance with "reliable service, customer satisfaction, and innovation".
We are committed to provide sophisticated manufacturing equipment and high-quality products to our customers and to become the first cylindrical grinding machine manufacturer in China.
