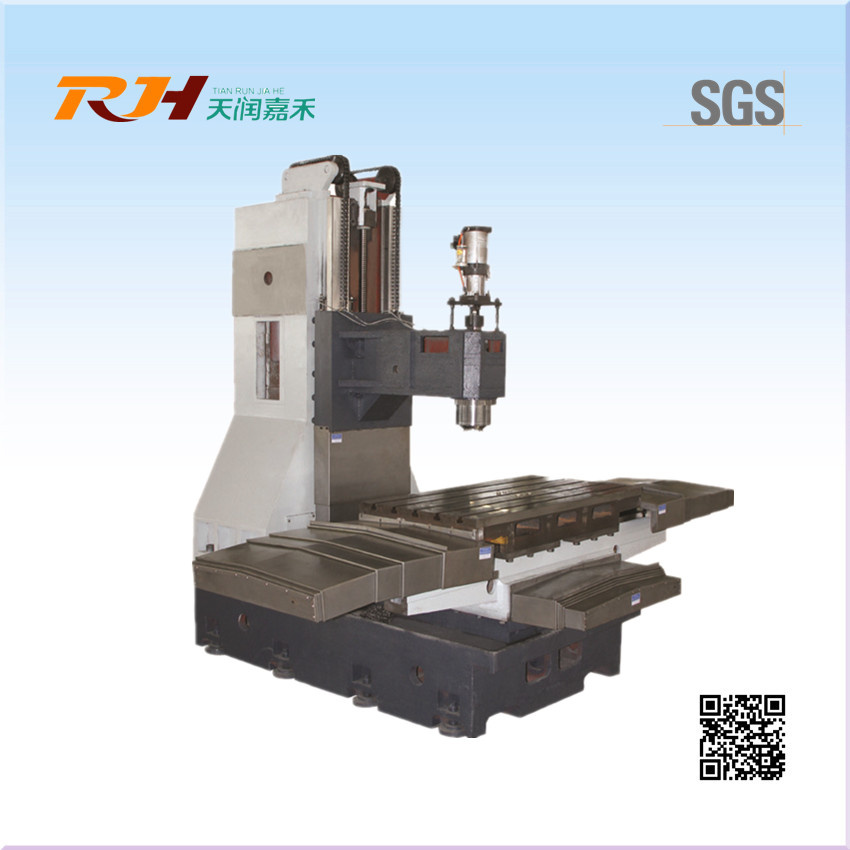

CNC Engraving Machine Part
I. Model
1370B
?
II. Type
Semi-finished Product/CNC Machine/CNC Lathe
?
III. Application
We could produce all kinds of bare machine according to customers' demand.
?
IV. Technical Parameters
As below Table
?
V. Standard Configuration
1- Taiwan BT40 Spindle, Max. Speed 8000r.p.m
2- Fully Enclosed-safety Work Space and Stainless Steel Internal Cover
3- Domestic Ball Screw from Hanjiang
4- Domestic Screw Special Bearing from Harbin
?
VI. Certification
ISO9000/SGS (report available)
CE/FCC, etc acceptable based on customers' request
?
VII. Main Markets
In 2013,
70% for domestic, abt. 300 sets/year,
30% for oversea, abt. 120 sets/year,
To Southeast Asia, South America, Middle East and Africa
?
VIII. After-sales Service
24/7 be ready
?
IX. Group Keywords
A group with 12 subsidiaries separately in 9 places
Thousands of members in all
Respect the spirit of unity, creativity and execution
Headquarter in Tengzhou City (cnc machine center) and Sales office in Qingdao City
Major in Real Estate and also engage in below business
1- Production and Sales of CNC Machine (most important)/WPC/Fertilizer
2- Import and Trading of Coal/Starch
?
X. Plant/Office Show
?
XI. Package Show
1- Fixed inside with irons to guarantee the position of every component;
2- Covered by layers of plastic films
3- Fastened on the pallet
?
?
XII. Customer Visit
?(Selected, copy or spread forbidden to protect our friends' right)
?
Main Technical Parameter of CNC Machine |
Item |
Unit |
1370B |
Table size |
mm |
1400*700 |
X/Y/Z Travel |
mm |
1300x700x700 |
Distance from Spindle Nose to Table Surface |
mm |
120-820 |
Distance from Spindle Center to Column Surface |
mm |
785 |
X/Y Rapid Feed Speed |
mm/min |
10000 |
Z Rapid Feed Speed |
mm/min |
8000 |
Cutting Feed Speed |
mm/min |
1-4000 |
Max. Table Loading-bearing Weight |
kg |
1000 |
T-slot |
|
5-22x165 |
Max. Spindle Speed |
r/min |
7000 |
Spindle Motor Power |
kw |
11/15 |
Spindle Taper |
|
BT50 |
Spindle Diameter |
mm |
150 |
Machine Weight |
kg |
10500 |
Overall Dimension |
mm |
4010/3950/3400 |
Control System |
|
KND2000M |
Shandong Tianrun Jiahe Industrial Group of Co., Ltd was actually established in 2002 with initial investment over USD16 Million.
After over 10 years' development, the group have founded 12 sub companies including real estate company, CNC machine plant, wooden plastic material plant, trade companies, building material plant and so on.
CNC machine is one of our main products with a manufacturing area more than 10, 000 square meters. Our products cover the range of vertical machining center, horizontal machining center, bare machine (semi-product), milling machine, drilling machine, grinding machine, gantry crane machine, etc which could be applied for various fields.
All the time we focus on high quality, competitive price, better service and unique techniques.
Give us a chance to cooperate with you, and we will feed you back more.
