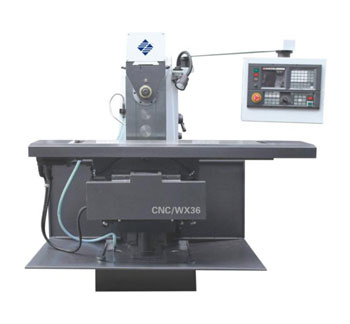

Machine features:
1)this machine is a widely used horizontal milling machine. And machine spindel can directly fixed or fixed by extra parts all types of columned milling cutter, disk milling cutter, formed milling cutter, face milling cutter, suitable for the processing of surface, slope, groove, hole, gear in small and medium workpieces, which can be adopted in manufacturing, moulding, instruments, car and motorcycle fields.
2)the worktable can not only travel along x, y axis and elevate vetically along z axis, but also can mechanically move and automatically feed along x, y axis as well as elevate vertically along z axis. The main transmission and feeding box have adopted gear change structure and with 3-stage gear change on the main transmission, the spindel speed can reach 60-1800rpm. With 12-speed function, the machine has enlarged its speed adjustment range. And the three-bearing support of spindle has improved the rigidity of machine. After the adoption of dynamic braking, the spindle of machine has the features of large braking torque, rapid stop and reliability.
|
Model No. |
WX28 |
WX36 |
|
Worktable(L*W)mm |
1200*280 |
1370*360 |
|
X/Y/Z axis travel mm |
600*260*380 |
750*320*400 |
|
Spindle nose to worktable/mm |
80-460 |
0-400 |
|
Spindle taper |
ISO 40 |
ISO 50 |
|
Spindle speed/rpm |
40-1300 (12-speed) |
60-1800 (12-speed) |
|
Spindle motor/kw |
2.2 |
4 |
|
Ballscrew type |
Ballscrew |
Ballscrew |
|
T-slot(slot No. *width*space)/mm |
3*14*63 |
3*18*80 |
|
Elevator motors/kw |
1.2 |
2.3 |
|
Worktable motor power/kw |
1.5 |
1.5 |
|
Cooling pump motor/w |
|
90 |
|
Cooling pump flow(L/min) |
|
25 |
|
Overall dimenstion(L*W*H)mm |
1350× 1255× 1300 |
1800× 1700× 1700 |
|
Machine net weight/kgs |
2500 |
3000 |
Hangzhou Datian CNC Machine Tool Co., Ltd is a national high-tech enterprise, national Torth Program committed enterprise, and national innovation fund supported enterprise. Our company team has decades of experience in design, development, manufacturing and exact use of combination machine tool, CNC machining centers and CNC machines, we absorb and bring in high-tech home and abroad with strong ability to conduct innovation and combination.
We cooperate with YAMAHA and develop multi-functional complex CNC machine tools for pianos project; With Bosch electric power, one of the world's top 500 enterprises to develop multi-function complex machine for flat milling, slotting, rolling letting, which all are international initiative innovative technologies; With Beijing CNC Machine Tool Co., Ltd to develop a key high-grade ceramic CNC cutting equipments and with Hang zhou Combination Machine Tool Research Institute to develop CNC machine tool with optional function and activity module features, which are domestically pioneered innovative technology.
Six main innovation products categories of company: High-performance vertical/horizontal gantry machining centers; CNC/TX series combination boring & milling machines; New series of multi-functional machines; Multi-axis and multi-cutter series CNC machines; Flexible series combination machines; And high-grade ceramic NC cutting machines.
We supply multi-functional complex machine tool to world's top 500 enterprises and international well-known companies; Provide domestic listed companies and other user with high-performance vertical/horizontal gantry machining center; Provide the majority of SMEs with TX series CNC combination boring and milling machines; And we also introduce international popular and efficient production mode to customers with needs for mass production: The combination production line of MC series of machining centers and special-purpose machines; Flexible combination of machine tool production lines for mass production of multi-species; NC equipment for clients in traditional industries.
With Da tian machine, we are able to create infinite fortune for clients.
