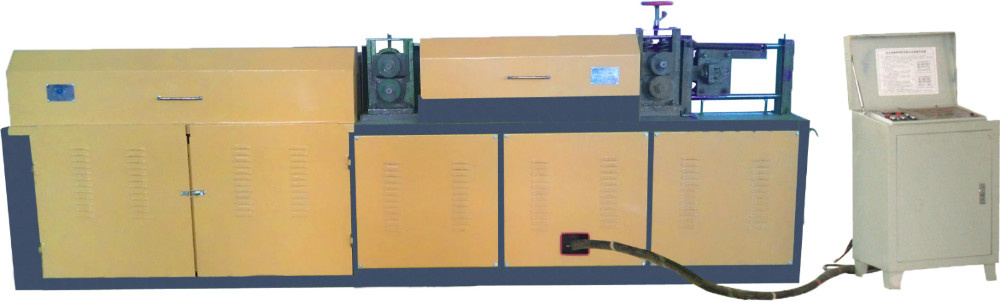

Model No.: GLT4-12 CNC hydraulic wire drawing and straightening machine
1, This machine has adjustable speed and traction motor to ensure reliable bar pulling-in and to avoid scratches or rigidity loss.
2, DIGITAL CONTROL by the control cabinet that features the ENCODER for the straightening and cutting adjusting, it can memorize multiple setting of different length and number of pieces.
3, STRAIGHTENING WHEELS, SQUARE BLADE, ROUND BLADE made of high-quality alloyed steel with proper heat treatment (quenching) 3mm external case to ensure high performances also under heavy loads and working life.
Straightening diameter: 6-12mm
Elongation: 15%
Traction speed: 42m/min
Cutting space: ≥ 500mm
Error of cutting length: ± 5mm
Straightening accuracy: ± 2mm
Motor power: Drawing 18.5kw, Straightening 15kw, cutting 7.5kw
Overall size: 4000× 850× 1400(mm)
Gross weight: 2800kg
Henan Yuchuang Machinery Manufacturing Co., Ltd., established in 1996, is located in Changge city, which is the manufacturing base of light construction machinery. Our location is very convenient: its only 25 kilometers to Zhengzhou International Airport, while 107 National Road, Beijing-Guangzhou Railway and Beijing-HongKong Highway cutting through our city.
As an integrated company with design, production, sales and after-sales service, we have two subordinate branch companies: construction machinery and electrical machine. We have successfully developed various types of machinery, including fully automatic CNC bar straightening and bending hoop machine, CNC bar straightening and cutting machine, bar bending machine, refractory gunning machine, grouting machine, concrete slag removal machine, concrete trowelling machine and kinds of electrical machines under 20KW. Now the products have quite good market in more than 20 provinces in China, South-east Asia and India.
Our factory covers an area of 20, 000 square meters, with more than 300 staff and 20 high-class engineering technicians. We have sophisticated equipments, complete testing system, powerful technical force, advanced manufacturing process and strict quality management. Our trademark "YUCHUANG" has been registered in National Trademark Office, and we have passed ISO9001-2000 certificate, becoming a famous backbone enterprise in central China. We see "develop by science and technology, marketing by quality, win customer by service" as our management conception; see satisfying customer's needs as our persistent pursuit.
We sincerely invite agencies from all over the world cooperate with us to make the mutual glory!
