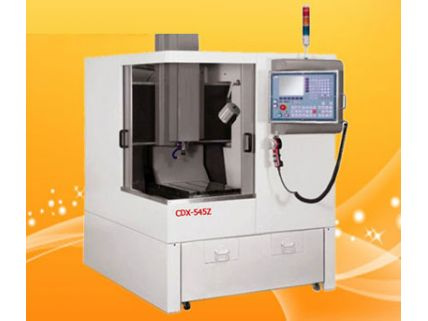

Machine NO.: CDX-545Z.
Please contact with saler online for more details before place order. or send email for details.
Main features:
Main axis speed: 24,000rpm to 40,000rpm.(option)
Max axis consume power: 1.5KW or 2.2KW(option)
Max machine power consume: 4.0KW
Position accuracy:0.01mm.
Re positioning accuracy:0.005mm.
System resolution: 0.001mm
Rate voltage: 220V +/_10% 50Hz. or 110V +/_10% 50Hz option.
Max idle speed: 12,000mm/minute.M
ax. working speed: 8,000 mm/minute.
Max. loading high of raw material: 200mm.
Goal width: 575 mm
Machine size: 1,450*1800*1,500 mm.
XYZ working distance: 450*500*230 mm
Workbench: 550*480 mm.
Max weight of being machined part: 200KG.
Gross weight: 2,000KG.
Control system: Ncstudio 3 Z axis.
Operation system: Taiwan AC servo motor, Schneider electrical components.
The linear guide uses high presision part from Swiss.
Self lubrication system and cooling system.
Application:
Drilling and milling Mould and tolling for plastic part, hardware tools, toys etc.
Shenzhen Changfeng CNC Equipment Co., Ltd is a high-tech company specialized in R & D, production and sales of CNC equipment. Her purpose is to get the "top quality, high technology, first-class service" to create "A brand" business for customer and client. She is committed to high-speed CNC engraving machine, CNC engraving and milling machine, drilling machine and all kinds of CNC equipment. Its products are mainly used in mobile phone metal parts and cases, glass machinery, mold manufacturing, precision machinery parts, circuit board manufacturing and all kinds of digital products manufacturing. Changfeng's equipment and product is to use advanced and high precision testing equipment to get excellent quality, during the process and the production of every part of the machine must be follow strict quality inspection standard. The whole machine testing process must pass the limit speed and ultra long time work inspection test, so that ensure the good quality in high speed, high precision and high stability.
