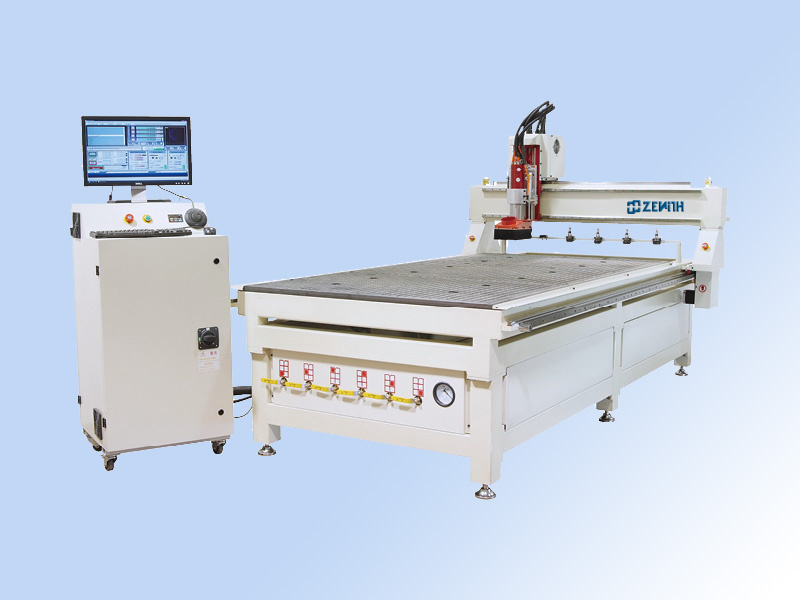

APPLICATIONS1)This machine is designed to accommodate a wide range of materials and applications. We can work on wood, plastic, aluminum or other none-ferrous materials. This is an economic model ATC machine for woodworking factories.
2)Wood industry: Stereo Wave Plate Processing, cabinet doors, solid wood doors, Craft wood door, paint free door, folding screen, craft window, shoe cleaning machine, game cabinet, mahjong table, computer table, and panel-type furniture's assistance processing.
3)Advertisement industry. Advertisement label and logo, Acrylic cutting and blister molding, Multi Ad. Material and decoration products processing.
4)Mold industry. Engrave on material like brass, Al, and Iron to make metal mold. And it can engrave on artificial Marble, gravel, plastic board, PVC pipes,wood, and alike Non-metal mold.
5)Other industry. Engrave all kinds of image engraving and relief engraving. It is widely used art & craft industry.
STANDARD CONFIGURATION1)9.0kw Italian HSD spindle with ATC, ER32.
2)Yaskawa servo system ensures machine to run with fast speed and low noise.
3)Syntec windows control system.
4)6 pieces tool holders.
5)Unique Auto Tool Changer system can change tools alternatively, special tool sensor to compensate the tolerance of tool length.
6)Tool magazine capacity of 6 tools, changing tools only takes 8 seconds
OPTIONS1)4.5KW or 5.5KW Xingchen ATC spindle, water-cooling.
2)Special size table. From 4x4 feet~7x21 feet.
3)Higher Z clearance: 200mm to 400mm.
4)Vacuum table or Aluminum T-slot extrusion table.
5)Automatic lubricating system.
6)Sider cutter and boring unit.
7)Dust collecting system.
8)Mach3 controlling system.
TECHNICAL PARAMETERS | Model | XE1325 | XE1530 | XE2030 | XE2040 |
| Working size(X*Y*Z) | 1300x2500x200mm | 1500x3000x200mm | 2000x3000x200mm | 2000x4000x200mm |
| (51.2x98.4x7.5inch) | (59.1x118.1x7.5inch) | (78.7x118.1x7.5inch) | (78.7x157.5x7.5inch) |
| Spindle Power | HSD9.0KW | HSD9.0KW | HSD9.0KW | HSD9.0KW |
| Spindle Speed | 0-24000rpm |
| Reposition Accuracy | <±0.03/300mm |
| Tool Diameter | ER32 |
| Maxi Moving Speed | 40000mm/min |
| Maxi Engraving Speed | 30000 mm/min |
| Transmission | X,Y axis high precision rack; Z axis ball screw |
| X,Y,Z Guide Rail | Square Linear Rail(Taiwan) |
| Dust Collector Power | 3.0KW |
| Vacuum Power | 5.5KW |
| Control System | Syntec windows control system |
| Working Voltage | AC380V/50HZ |
| Interface | Printer port 50pins or USB |
| Software | Type3, Ucancam V9 |
Jinan Zenith CNC Equipment Co., Ltd., was founded in 2007, is a specialized manufacturer on advertisement equipments, due to the experiences of 9 years of research and manufacture in this field, we have produced "XZ" series CNC Routers for woodworking, advertisement stuff machining and mold processing, and laser equipments as well. "ZENITH" is our new brand for oversea market.
We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "ZENITH" is known by more and more people. At present, our products have been exported to many countries and regions such as Czechic, England, Russia, Brazil, Paraguay, India, Australia, Thailand, Singapore, Malaysia, China Taiwan, and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
