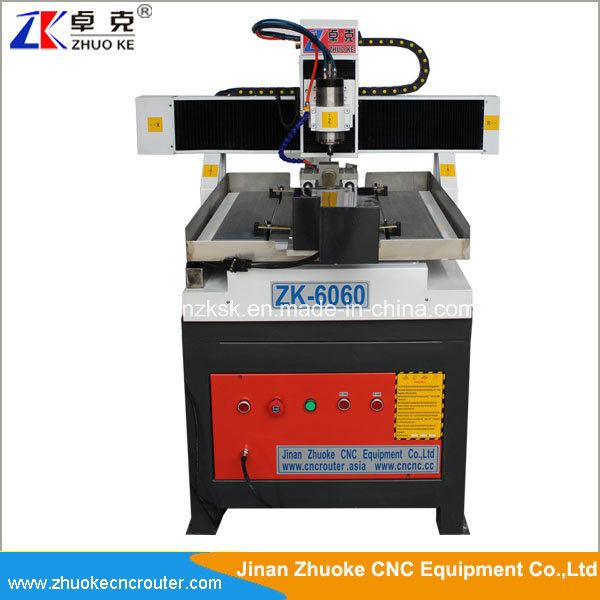

CNC Metal Mould Engraving Machine ZK-6060
Machine application:
Applicable Industries
Good at in processing all kinds of small workpiece, widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc.
Applicable Materials
Suitable for all kinds of metal, such as copper, aluminum, iron, stell, stainless steel, alloy, also the acrylic, wood, MDF, double color board, stone, jade, ect.
Models
ZK-3030, ZK-4040, ZK-6060, ZK-6090
Machine Feature:
1.Imported the ball screw and linear square guide way for X Y Z-axis, stable operation, high precision and low vibration. whole casting iron machine bracket.
2.Optional control system according to your need, we are providing the DSP offline,PCI Ncstudio. This machine we adopt Mach3 control system
3.Cooling system for the metal, hard materials, avoiding breaking the cutters and workpiece.
4.Auto tool setting, helping to set the cutters, and not break the cutters.
5.Power off and break point, continuing processing.
6.Good software compatibility: Type3, Artcam, Ucancam V9... All kinds of CAD/CAM software.
When we send the machine, Artcam is for free, of couse you can choose the one you like.
7.rotary axis for the cylindrical materials engraving. we have diameter with 80mm,100mm,130mm. You can choose the right one as you need.
8. humanlity CNC control box. We will also add you spare parts for free so that you can use the machine directly after you receive the machine
8.Good at small workpiece precision processing, mainly used for metal, such as aluminium, copper, stainless steel, steel, alloy, etc.
9.Also can for wood, MDF, acrylic, organic glass, PVC, double color board,stone, jade processing.
10. This machine adopt big power 1.5KW water cooling spindle
11. simple servo motor for XYZA axis.
Parameter showing:
| Items | Basic configuration |
| Certificate | CE |
| XY-axis working area | 600*600mm |
| Material | Whole casting iron |
| Moving way | Working table moving |
| Working table | Aircraft aluminum with T slot |
| Guide way | XYZ-axis linear square guide rail |
| Driving mode | XYZ-axis ball screw |
| Z-axis working area | 120mm |
| Max traveling speed | 8000mm/min |
| Engraving speed | 6000mm/min |
| Mechanical precision | 0.05mm |
| Driving method | simple servo motor |
| Water cooling system | Stainless steel water slot |
| Spindle | 1.5KW water cooling spindle |
| Spindle speed | 0-24000rpm |
| Collet type | ER11 |
| Tools diameter | 3.175mm, 4mm, 6mm |
| Control system | NcStudio control system |
| Design software when delivery | Artcam |
| Compatible design software | Artcam, Type3, Ucancam, JDPaint, MasterCAM,etc |
| Command | G code ,U00, mmg nc,etc |
| Running ambient temperature | 0-45ºC |
| Relative humidity | 30%-75% |
| Voltage | AC 220V,50/60Hz, single phase or AC 380V,50/60HZ |
| Auto tool calibration | For Z-axis |
| Tools | 11pcs for metal |
FAQ:
Q1: Are you factory or trading company?
We are company, which manufactures CNC Router, with 4 years experience in CNC Router area. Welcome to visit our factory whenever.
Q2: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or skype.
Q4: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q5: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
PRE-SERVICE
Offer us a caill, even cooperate with us or not, you may get unexpected harvest. We could discuss the future development of this line together accroding to many years' experience in selling and producing which could help to enlarge the profits and improvement for both of us.
Studying customers' requirement carefully, we could help clients to choose the best suitable machine and also will offer you the relative samples and suggestions promptly and consinderately to customer's production scale and technical requirement.
SELLING SERVICE
Promptly and patiently answer customer's questions. Put our heart and soul into service for customer, including supply some suggestion on choosing the place, play maximum value of Jinan Zhuoke CNC.
AFTER-SALE SERVICE
1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.
Any questions, contact me when free, we will never let you down!
Jinan Zhuoke CNC Equipment Co., Ltd is a modern export-oriented enter-prise of the processional R&D, production, and sales of the CNC equipments, located in Jinan City, Shandong Province, China. We have a technical team which has the actual combat of mechanical design, software R&D, and CNC application. Our brand "Zhuoke" has the certain popularity at the home and aboard.
Our company mainly focuses on manufacturing CNC Routers and Laser Engraving Cutting machine, with high quality and top sales and after sales-service, we have won the customs trust and support from all over the world. Also, our machine can be specially customized according to your requirement.
Our CNC machines are not only sold to the domestic, but also the Southeast Asia, Americas, Oceania, Russia, Africa.
"High quality product and hard working make the brilliant future" We have the continuous technological innovation and the relentless pursuit of quality pragmatic spirit, always put the quality first, and always striving to provide our customers with high quality, cost effective mechatronic products. Our Zhuoke products will always be associated with your caree-----back gammon!
