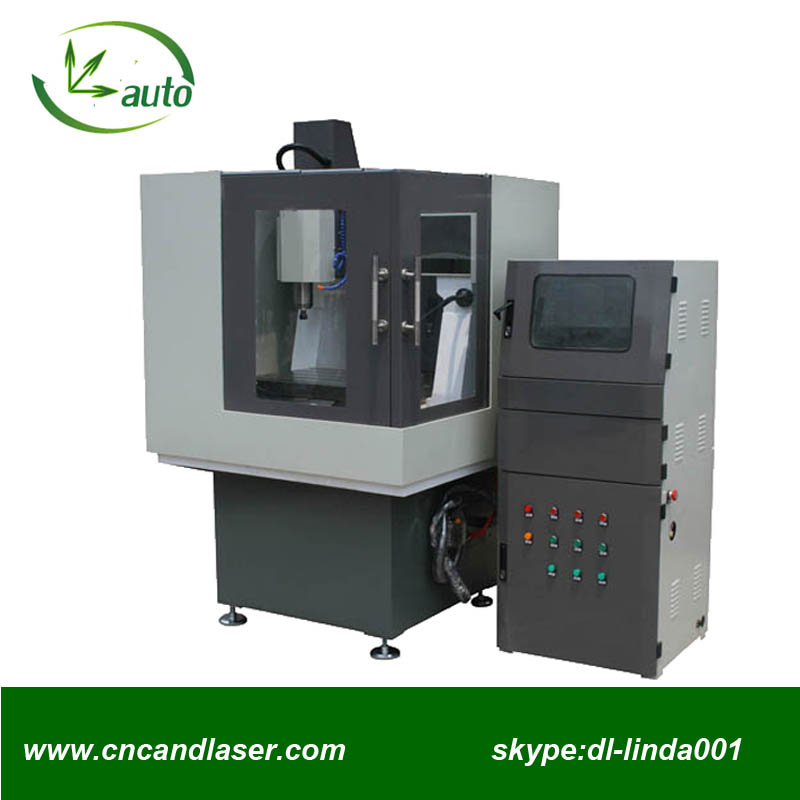

CNC Milling Machine for Mould

CNC Milling Machine for Mould
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T
cnc milling machine for mould
1.whole cast-iron structure, steady structure, high rigidity precision 0.01mm.
2. Three axis all use Germany ball screw and Taiwan linear orbits, also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.
3.  Imported NK200 system, This system has break point memory mode and special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation. The function can guarantee the processing precision of long time operation..
4. Adopt table movement to keep stable.
5.  Adopt high-speed water cooling variable frequency motor, big torque, strong cutting, high-frequency , long-lifetime, can be a long time continuous working .
Application:
Used for the processing of metal mould ,graphite electrode, mobile phone, camera and MP3.
Optional models: 4030, 5040, 6060, 8080
Parameters:
MODELOD-4050 CNC Milling Machine

Working Area (X*Y*Z)

500X400X30mm(19.6X23.6X11.8 inch)

Table size

650X750mm

Processing accuracy

0.015mm/300mm

Repositioning accuracy

0.015mm/300mm

Lathe structure

Cast iron

Table structure

Cast iron

Spindle

2.2KW Constant power variable speed , water-cooled

Spindle rotating speed

0-24000rpm/min

Max Moving Speed

12000mm/min

Working speed

0-8000mm/min

Driving mode

XYZ-Ball screw

Voltage

AC220V/50Hz

Max. Power consumption

3.5KW

Feeding Height

300mm

Drive motor

Servo

Command

G.code , mmg , plt , uoo,HPGL

Compatible Software

ArtCAM, masterCAM UG software

Certificate

CE,FDA

Pack dimensions

1400mm X 1400mm X 2000mm wooden trunk

Net weight

1800KG
Prod Model: OD-4050
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Tool Milling Machine
Object: Tool
Structure: Bed type
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
