Main Configuration Information:
Engraving Area: 500*400mm
Height of Gantry Lifting: 200mm
Max. Travel Speed: 10m (servo)/min
Spindle Power: 4.5KW water cooled spindle
Machine Body: Double column platform and linear guide system, German ball screw, Taiwanese controller, 380V triple phase, imported servo system(whole enclosed).
I set of cutters (8 PCS) supplied with each machine. Specialized cutters available for hard materials.
Application:

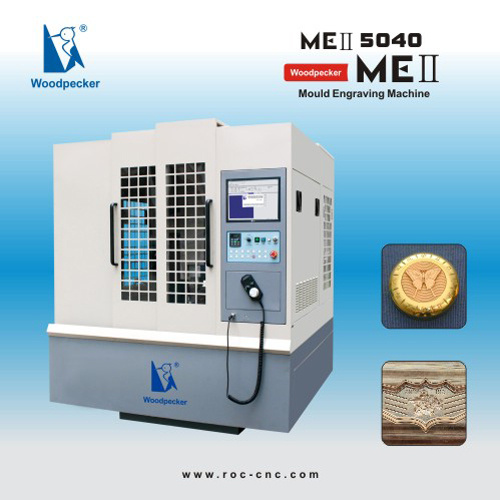

The CNC mould engraving machine is suitable for mould injections, heat transfer moulds, press moulds and other copper and EDM moulds. This machine was well received in the market and has surpassed our expectations.
Product Highlights:
1. The CNC mould engraving machine uses a German ball screw, imported linear guide, imported servo driver and can satisfy the mould industry's need for precision and durability. The 4.5kw high frequency spindle gives the machine an extremely powerful cutting ability.
2. Taiwanese controller, 380V triple phase*.
3. Z-axis with air-balance design for more smooth and steady working.
4. Simple operatin panel, more easy to operate.
5. I set of cutters (8 PCS) supplied with each machine.
6.12 Months Warranty on all parts and labour.
7. Power-off protective memory function assures restarting work in the same position after power-off.
Guarantee & Aftersales Service:
Comprehensive guarantee for one year except the wearing parts.
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintaining.
With the following optional devices, more functions can be added to the engraver machine:
Add fourth axis(Step Motor)
Add fourth axis(Servo Motor)
|
Model |
CNC MEII-5040 |
|
Working Table Size |
540*500mm |
|
Max. Working Size |
500*400*200mm |
|
Spindle Power |
4.5KW water cooled spindle |
|
Positioning Precision |
± 0.02/300mm |
|
Spindle Rate |
18000r/min |
|
Max. Travel Speed |
6m/min |
|
Engraving Tool Diameter |
Ø 3.175, Ø 4, Ø 6 mm |
|
Driving Motor |
Servo motor, whole enclosed |
|
Power Source |
AC380V± 10% 50HZ |
|
Consumption |
7.5kw |
|
Optional Device |
The fourth axis-rotary fixture |
|
Wearing Parts |
Cutter |
|
Machine Dimension |
1700*1850*2100mm |
|
Machine Net Weight |
1500kg |
|
Package |
Fumigation free wooden case package |
|
Packing Size |
1900*2000*2350mm |
|
Gross Weight |
1900kg |
