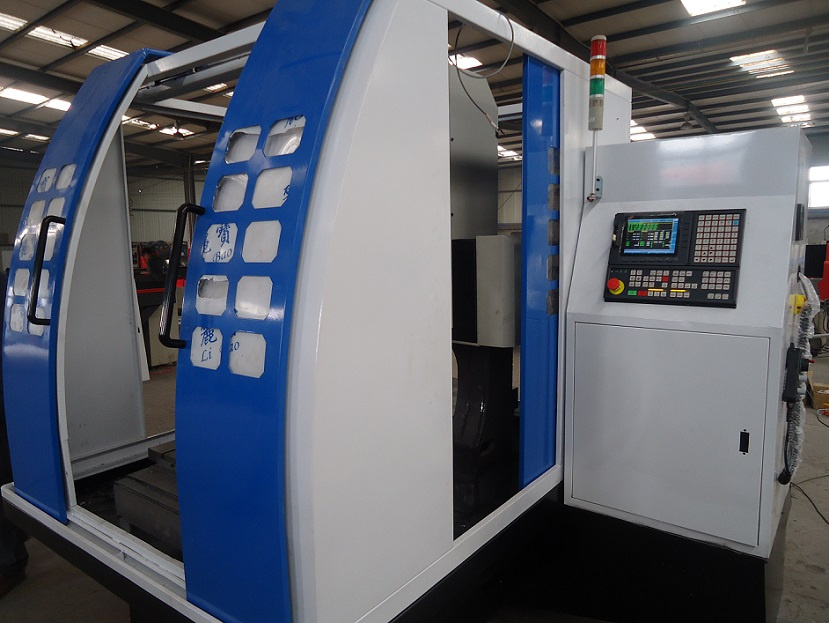

CNC Router Metal Moulding Machine CNC Milling Machine

CNC Router Metal Moulding Machine CNC Milling Machine
Price: US $ 16777-26777/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
CNC Router Metal Moulding machine CNC Milling machine

Specification Parameter

Description

Parameter

TZJD-6060MBN

Working Area (X*Y*Zmm)
Plat form size(X*Y)

600mm*600mm*300mm
640mm*640mm

Max Engraving Speed
Max Running speed

6000mm/min
12000mm/min

Frame

Cast Steel

Spindle power(KW)

5.5kw permenent torque spindle

Max. Power Consumption(Without spindle)

3KW

Spindle Speed

24000rpm

Resolution

0.005mm

Repeatability

0.01mm

Voltage

AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)

Drive motor

Japan Panasonic Servo motor

Working Dictate

G Code*.u00*.mmg*.plt

Operating system

Taiwan LNC control system

Software environment

Windows98/2000/xp/7

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3,,Ucancam,Artcam Software)

Diamerer of cutter
Table Max load
Dimension(L*W*H)
Weight

3.175, 6mm, 12.7mm, 2mm,1mm, etc.
300kg
1.8m*1.35m*2.1m
2800kg

Running Environemt

Temperature: 0ºC~45ºC

Relative humidity: 30%~75%

Machine necessary

Cast heavy-thickness steel structure, High precision HIWIN Square linear bearings, Dust cover system, control system integration shell, spindle cover, Japan Panasonic Servo motor, Auto-oiling system, Tool-sensor, water tank system, water-cooled system.

Applicable materials
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,
PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.

Product features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan HIWIN line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed Japan Panasonic Servo motor driver, largely improve the working-efficiency.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power. Many gear speed regulation and control function & Curve and linear speed independent control.

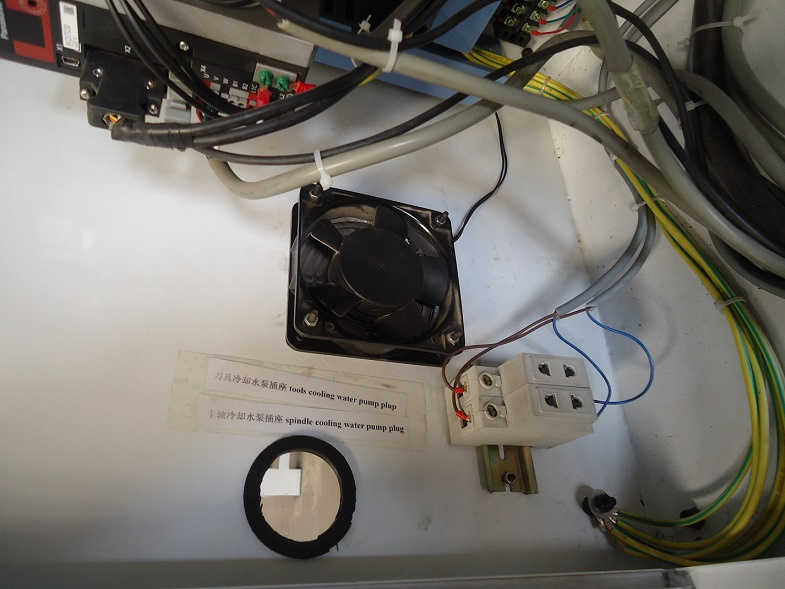

9. Water tank system on the body & water-cooled system automatically.
10. Taiwan LNC control system. Use this control system, it can prolong the machine's working-life.

Prod Model: TZJD-6060MBN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area: 600mm*600mm*300mm
Spindle: 5.5kw Permenent Torque Spindle Power
Machine Structure: Germany Ballscrew
Machine Color: Blue Black, Also as Demands
Working Table: Bakelite Table Combined Aluminum T-Slot Extrusion
Motor Driver: Japan Panasonic/Yaskawa Servo
Control System: Syntec/Lnc/Ncstudio
Cooling System: Spray Mist Cooling System
Guide: Taiwan Hiwin Square Linear Bearings
Software: Type3 Artcam Ucancam English Version
Carving Material: Iron
Certification: SGS FDA
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.

The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

Tengzhou Jianda CNC Machine Co., Ltd  Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.



Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.



Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
