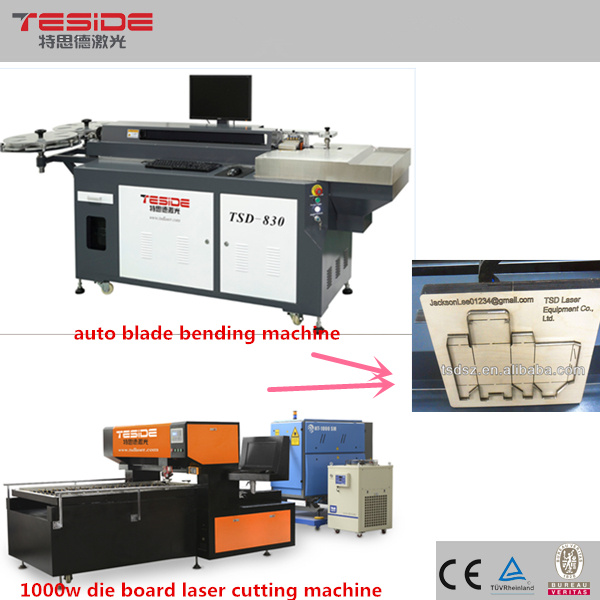

CNC rule automatic bending machine, CNC blade automatic bending machine
Technical Parameters:
| Model | TSD-800 | TSD-830 | TSD-850 |
| Steel rule thickness (mm) | 0.45,0.53 | 0.45,0.53,0.71,1.05 | 0.71, 1.05 |
| Steel rule height | 8-12 | 8-30 | 23.8-50 |
| Front Min. Bending size | 1.0 | 1.0 | 2.5 |
| Back Min. Cutting size | 0.5 | 1.0 | 1.0 |
| Max bending angle | 100 |
| Min. ARC radius of 90 degree | 0.4 |
| Feeding precision | +-0.03 |
| Bending flatness | +-0.2 |
| Functions | Bending, bridge, lipping, cutting |
| Cutting methods | Swaying off or Auto flat cutting |
| Optimal pattern format | Dxf format |
| Air supply | 0.6mpa |
| Power supply | Three-phase power 380v 50 / 60 HZ |
| Machine total power | 1.3 kw |
| Gross weight | 500 kgs |
| Overall dimension | 2700*1050*1350 (L*W*H) |
| Packaging size | L1.97x W0.76x H1.35 = 2.020CBM |
| HS code | 846221900 |
Functions and usage:
1. Panasonic servo motor and Taiwan Hiwin guide rail and Ball screw system, eradicate skidding and dislocated
2. Unique imported mold tool design, easy to bend, high precision of size, durable.
3. With multifunction, can bending, bridge, front lipping, back lipping, cutting, flat cutting, it's automatic bending machine. CE Certification, ensure good quality.
4. Roller continuous feeding with servo digital work mode.(No need to feed with tool, high accuracy and speed)
5. Rely on the dxf, AutoCAD figures, can finish all kinds of complicated patterns.
6. Self- developed updated automatic bending control system with powerful function.
7. Full English or Chinese interface, easy to learn and easy to operate.
8. Apply to various kinds of mold processing, such as Paper boxes, Dolls, Cake Molds, Cartons, Flowers and Edition..etc.
9. It take bend first and cut last, save the time and material for the user.
After-sales service
A: Machine-installation & debugging:
According the contract, our company will ship the equipment to the port of Shenzhen or domestic user specified location. Qualified technician will be send to customer's company for Automatic bender installation and debugging. Under the proper circumstance, the technician will finish installation and debugging within three days. Please keep the installation place clean and tidy.
B: Training:
After Automatic bender installation and testing, qualified technician will be send to customer's company for training (machine operation, machine maintenance, machine debugging, product sample processing, etc). TSD Laser also welcome our customers to come to Chinese headquarter for machine training. The training is free of charge and it will last at least 3 days until the operator of customers can use the machine properly and correctly.
