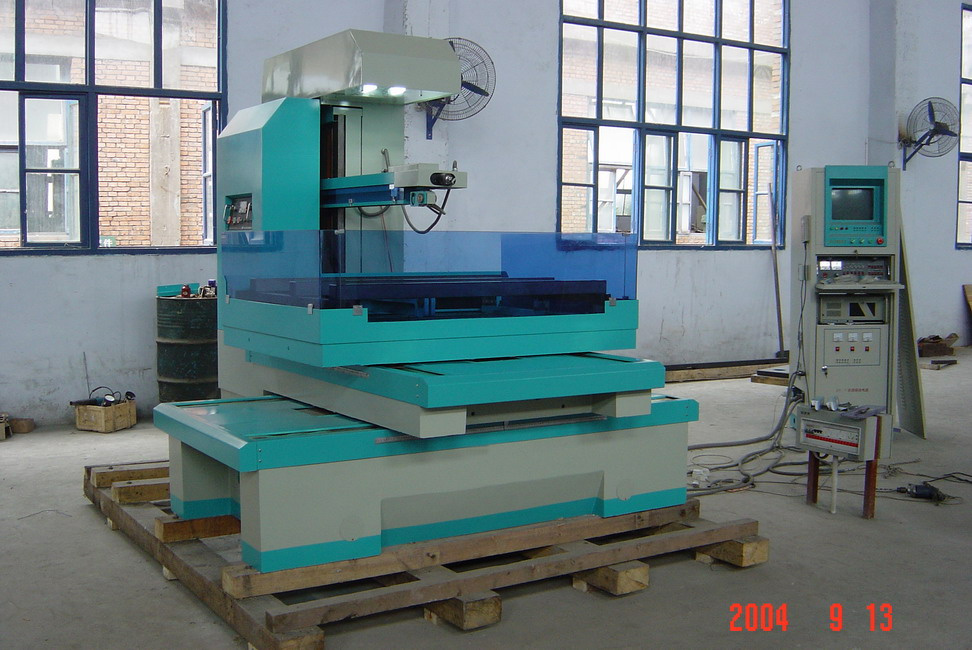

CNC wire cut machine(Close-type)
1. The parts of the worktable is machining center structure, and adopt Taiwan beeline slideway, with fine loading ability and fine holding long time accuracy.
2. X Y direction idler pulley apply wrap curtain-type, idler pulley protection subassembly which be studied by ourselves, with beautiful outline, tightly structure characters.
Our factory has been specialized in drilling machine, CNC milling machine, wire cutting machine since 1965. Among which, 3050X16A radial drilling machine and ZY5140 vertical drilling machine were awarded a high-quality certificate by Sichuan Province. Our machines have gained many Chinese patents and are ISO9001/2000, CE/PED certified. You can find our machine tools in many countries, such as Poland, Turkey, Iran, Syria, Lebanon, Saudi Arabia, The United Arab Emitrates, Qatar, Sri Lanka, Thailand, India and South Africa.
Model
Parameter |
Unit |
FP280C |
FP350C |
FP400C |
FP500C |
FP630C |
FP800C |
|
Table travel |
mm |
280×360 |
350×400 |
400×500 |
500×630 |
630×800 |
800×1000 |
|
Worktable loading |
kg |
300 |
350 |
400 |
800 |
1200 |
2000 |
|
Machine size |
mm |
1510×1110×1715 |
1400×1200×1650 |
1400×1260×1715 |
1750×1700×2000 |
1930×1700×2080 |
2400×2200×2320 |
|
Packing size |
mm |
1600×1150×2000 |
1650×1300×2000 |
1650×1300×2000 |
2000×2000×2200 |
2000×2000×2200 |
2450×2400×2500 |
|
Machine weight |
T |
1.2 |
1.3 |
1.4 |
2.0 |
3.0 |
3.8 |
|
Power |
kw |
1.2 |
1.2 |
1.5 |
1.5 |
2 |
2 |
|
Power supply |
380V/50Hz or 220V/50Hz |
