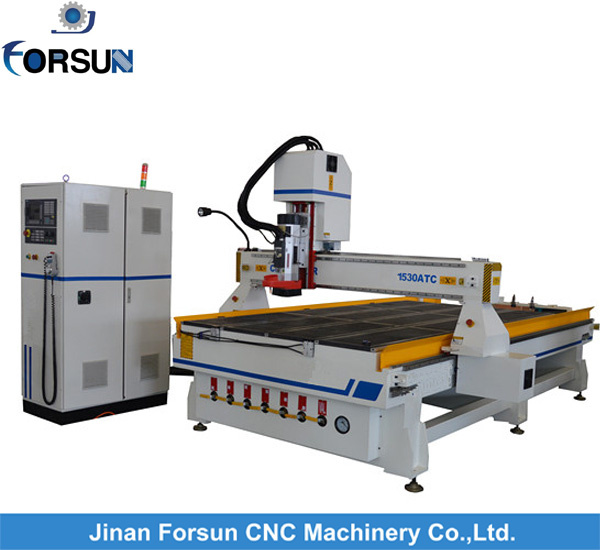

CNC Wood Cutting Machine with Tool Auto

CNC Wood Cutting Machine with Tool Auto
Price: US $ 19500-21000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

 The cnc router/cnc wood router Applicable Industry and materials:
 1) Mould: wood,wax, wood, gypsum,foams,wax
 2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables,  table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, ABS
 5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum
Plywood case package


Standard Configuration:
Option item
Working area: 1300mm*2500mm*200mm
Syntec controller system from Taiwan
YASKAWA AC Servo motors from Japan
9.0KW HSD air cooling spindle from Italy
DELTA inverter made in Taiwan
Carousel Type ATC with 8 positions
T-Slot vacuum table
ArtCam software,
3PH 380V 50Z
Plywood case package


1. Germany Backer Germany


Dust collect system
Oil mist cooling system


Technical Data
NODescription Parameter
1X,Y,Z Traveling Positioning Accuracy±0.03/300mm
2X,Y,Z Repositioning Accuracy:±0.03mm/300mm
3Max. Rapid Travel Rate80000mm/min
4Max. Working Speed45000mm/min
6Spindle Speed0-24000RPM
7Command LanguageG Code
8Flash Memory512M
9ColletER32
10X,Y Resolution<0.03mm
11Running Environment Temperature0 - 45 Centigrade
12Relative Humidity30% - 75%
13Packing Size3820*2200*2100mm
14N.W.1600KG
15G.W.1800KG
Technical Data
NODescription Parameter
1X,Y,Z Traveling Positioning Accuracy±0.03/300mm
2X,Y,Z Repositioning Accuracy:±0.03mm/300mm
3Max. Rapid Travel Rate80000mm/min
4Max. Working Speed45000mm/min
6Spindle Speed0-24000RPM
7Command LanguageG Code
8Flash Memory512M
9ColletER32
10X,Y Resolution<0.03mm
11Running Environment Temperature0 - 45 Centigrade
12Relative Humidity30% - 75%
13Packing Size3820*2200*2100mm
14N.W.1600KG
15G.W.1800KG







Prod Model: FS1325C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area: 1)1300mm*2500mm*200mm
Contrlo System: Syntec Control System
Spindle: Italy Hsd 9.0kw Spindle
Max. Working Speed: 45000mm/Min
Spindle Speed: 0-24000rpm
Spindle Layout: Horizontal
Spindle Number: Single-Spindle
Feed Mode: Manual
Controlling Mode: CNC
Certification: ISO
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
