Model |
CNC wood engraving machine OD-1325 |
Working Zone: (X Y Z) |
1300×2500×200mm |
Table Size (W×L) |
1350×2700mm |
Resolution |
<0.003mm |
Cutting Accuracy |
± 0.02/300mm |
Repositioning Accuracy |
±0.01mm |
Axis Drive System (X Y Z) |
Rack and pinion |
Drive Type |
Stepper motor |

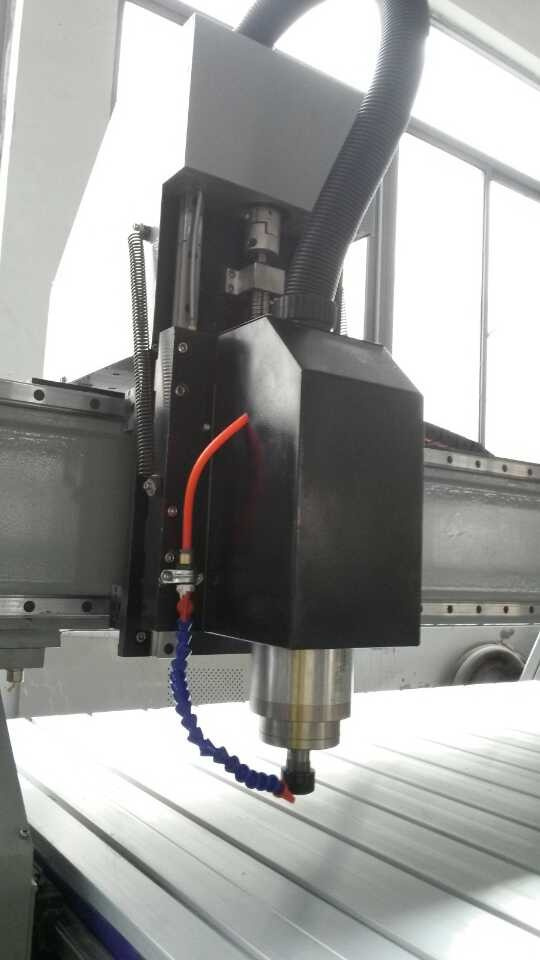

Spindle |
3000W Water -cooled with 24,000rpm,VFD |
Max. Working speed |
28,000mm/min |
Collets Type |
3.175mm/ 6mm |
Command Code |
G*.u00*.mmg*nc.,HPGL |
Operational System Software |
Type 3/Artcam |
Control System |
NC studio/DSP |
Interface |
PCI/USB |
Max. Power Consumption |
3.2KW |
Voltage |
AC220V±10%/50~60Hz |
Standard Work Surface |
Aluminum profiles |
Weight |
1000kg±10% |
Warranty |
12 Months (spindle: 6 month |

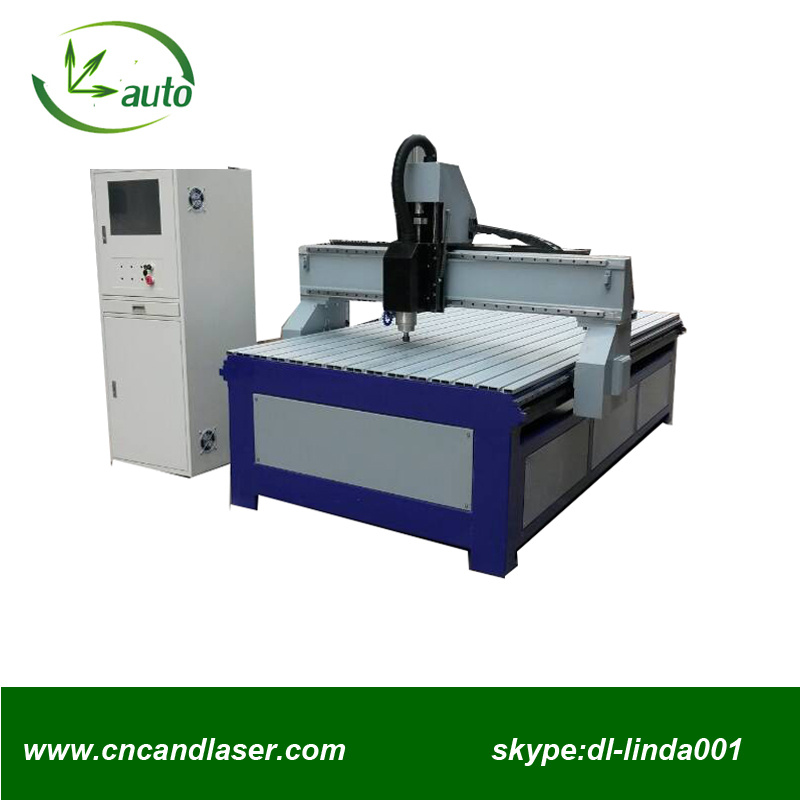

OD-1325 Wood Engraving CNC Router
Features:
1.Lathe bed welded with thick channel steels and square tubes;Processed by high temperature tempering treatment and vibrating stress relief(VSR) to reduce residual stress;Ensure excellent stability,not easy to be deformed.
2.Three axis adopt Taiwan HIWIN high precision linear orbit.Z axis adopt Taiwan ball screw,X,Y by Gear transmission with high precision and long life time.
3.Well compatibility:CAD/CAM designing software e.g.Type 3/ArtCam/Castmate/Wentai etc.
4.Cnc router can choose updated DSP or original Ncstudio/Multech computer control system.
5.Perfect oil-inject system makes maintenance much easier.
6.Good dust-collection function keep the table always clean.
7.Recover carving point after break or disconnecting power,and the function of forecasting process time.
8.Advanced desigh of the machine make sure strong cutting and guarantee the engraving precision.
9.Cnc router can be equipped with press rolls which can help to fix the workpiece firmly.
Application Industry and Materials:
Wood cnc router is widely used in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc. And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
1.Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
2.Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
3.Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
4.Musical instrument industry: instrument 3D surface engraving, shape cutting
5.Wooden crafts.

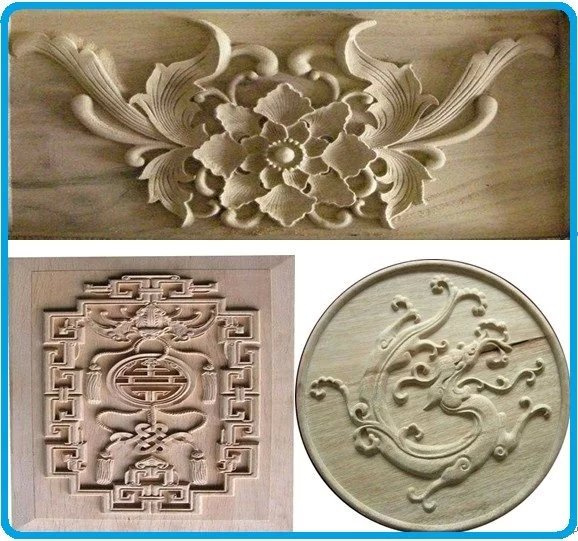

Sample
