| Price: | US $ 50000-80000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
It is high power CO2 Laser Cutting Machine,with more widely applications,Printing,Packing,Mould Making,Advertising Signs,Metal Plates,Light-fixture,Hardware,Electrical Components,Craftworks,...Etc.Industries.
Video of High Power CO2 Laser Die Board Cutting Machien,please copy it and open it via Youtube,thanks.Https://www.Youtube.Com/watch?V=WydgXVWWTz4
Application:
It's widely used in printing,packing,die making,advertising signs,metal plates,light-fixture,hardware,electric equipment,automotive,electrical components,etc.Industries.
Applicable Materials:
Plywood,MDF Board,Acrylic Board,Iron Board,Steel Board, Stainless Steel Board,Aluminum Board,Copper Board,etc.Metal and non-metal materials.
Features:
1.Gantry structure, stable working, small floor space required for machine.
2.Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision.
3.Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4.Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
Technical Parameter:
Model No. | TSD-LC1000-1218 | TSD-LC1000-1325 | ||
Processing Scale | 1250x1850mm | 1300x2500mm | ||
Machine Weight | 2200Kgs | 2500Kgs | ||
Overall Dimensions | 3000x220 x1800mm | 3600x2300x1800mm | ||
Laser Power | 1000Watt | 1500Watt | 2000Watt | |
Laser Weight | 800Kgs | 1200Kgs | 1200Kgs | |
Laser Type | Axial flow CO2 Laser Tube | |||
Driving System | 3 Axial Panasonic Servo Motor | |||
Power Supply | 380 V 50Hz 10A | |||
Cutting Precision | ±0.05mm | |||
USB Port Connection | Yes | |||
Operating Temperature | 0-45°C | |||
Mould Knife Thickness | 0.45mm, 0.71mm,1.07mmetc.Controllable | |||
Cutting Speed | ≥60 meters per hour, 18mm plywood | |||
Protective Gas | Dry and oil-free air | |||
Numerical Control Panel | LCD screen, light-touched key-press | |||
Software Supported | CorelDraw, Auto CAD, Photoshop | |||
Graphic Format Support | PLT,DXF,BMP,JPG,GIF,PGN,TIF | |||
EMS Memory | Attached 64 MB memory, can work under off-line condition | |||
Auxiliary Gas | He, N2, CO2 | |||
Transmission System | Ball screw & linear guide | |||
H.S Code | 8456100090 | |||

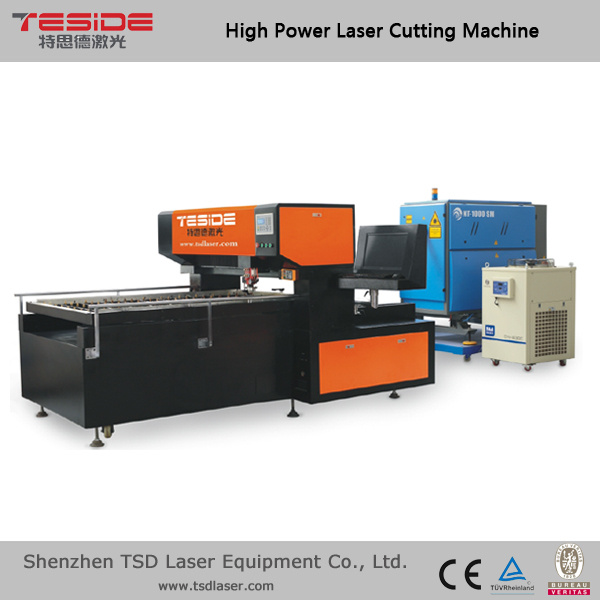

Picture of the High Power CO2 Laser Cutting Machine:
Package:

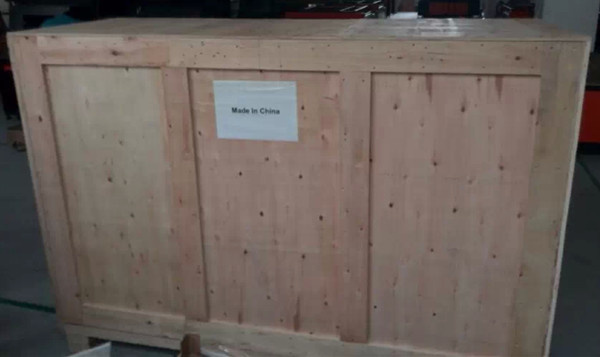

Standard Export Wooden Case,which can protect the Equipment well from damage during shipping.
TSD Laser Service:
Shenzhen TSD Laser Equipment CO., LTD adheres to the customer-oriented service concept, providing complete installation, commissioning, inspection, training, maintenance and other pre-sales and after-sales service.
We are appreciated for your visit our website,any question please feel free to contact us.
Shenzhen TSD Laser Equipment CO., LTD |
Contacts:Ms.Yoyo |
TEL:0086-755-29776384 | FAX:0086-755-29609023 Mobile:0086-18565729193 | |
It is avaliable to scan Following QR Code to add me Wechat,too,thanks for your attention.
| Prod Model: | TSD-LC1000-1325 |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| CO2 Die Board Laser Cutting Machine: | 1000W Laser Cutter |
| Mould Knife Thickness/Slit Width: | 0.45mm, 0.71mm, 1.05mm..etc. |
| Suitable Materials: | Plywood, MDF, Acryclic, Iron, Steel, etc. |
| Application Industries: | Print, Pack, Mould, Ad., Craftwork |
| Laser Type: | CO2 Laser |
| Cutting Precision: | +-0.05mm |
| Laser Power: | 1000W |
| Re-Position Accuracy: | <=0.02mm |
| Machine Weight: | 2200kgs |
| Graphic Format Supported: | Plt, Dxf.Autocad |
| Application: | Machinery & Hardware |
| Type For Cutting Machine: | Laser Cutting Machine |
| Automation: | Automatic |
| Type: | CO2 Die Board Laser Cutting Machine |
