Coil Sheet Splitting Machine
| Price: |
US $ 69500-70000Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
STONE CHIP COATED STEEL ROOF TILE PRODUCTION LINE
I. CUTTING AND SHAPE FORMING MACHINES

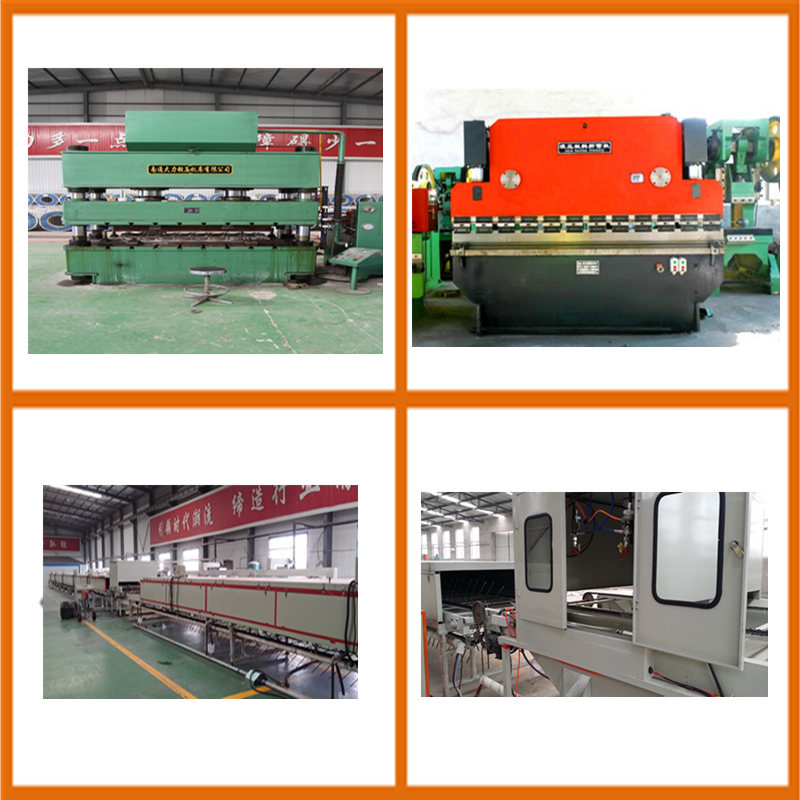

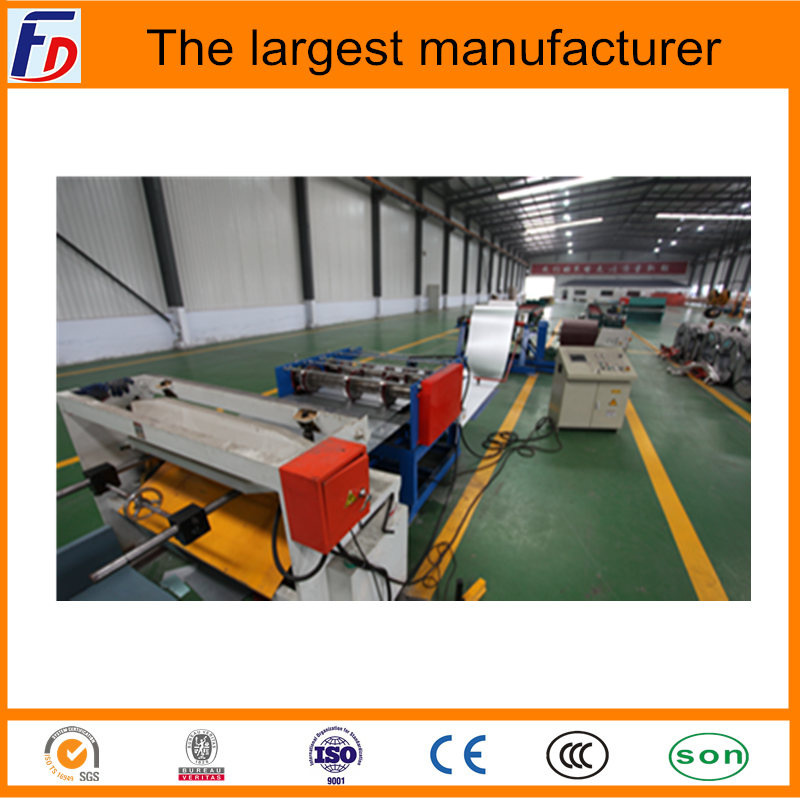

1. Coil Sheet Splitting Machine
1.1 Coil:prepainted sheet, galvanized sheet
1.2 Coil thickness:0.3mm- 0.7mm
1.3 Max. Feeding width:1000mm
1.4 Splitting speed:≤ 15m/min.
1.5 Total power: 9.7 kw
1.6 Dimensions: 8115 * 2745 * 1355
Shape Cutting Machine
2.1 Material of cutting blade: D2/GCr12MoVo
2.2 Power: 3kw
Press Machine and Mould
3.1 Normal Pressure: 315 tons
3.2 Power: 18.5kw
3.3 Mould: 1 set
3.4 mould base: 1 set
II. STONE CHIP COATING LINE
COMPOSITION OF STONE CHIP COATING MACHINE
1 BASE GLUE SPRAY CABINET
2 STONE CHIP COATING MACHANISM
3 AUTOMATIC FLIPPING ROLLING MACHANISM
4 FIRST BAKE-DRY OVEN
5 SURFACE GLUE COATING CABINET
6 SECOND BAKE-DRY OVEN
MACHINE DETAILS
A. BASE GLUE SPRAY CABINET
1\ SIZE : 4000*1650*2000 (L*W*H)
2\ RACK STRUCTURE: WELDED STRUCTURE OF STEEL PROFILES
3.Power: 380v,50~60 Hz; 4KW IN TOTAL
4. OPERATION SPEED: 4~10S/TILE
5. CONTROL: CVT AUTOMATIC CONTROL VIA PLC
6.BASE GLUE SPRAY: RECIPROCATING SPAY OPERATED BY PNEUMATIC AIRLESS SPAYER AND A 750 W STEPPING MOTOR
7.DEDUST APPLIANCE: ADSORPTION DUCT COLLECTOR; 1 SET; 70 W.
B. AUTOMATIC STONE CHIP COATING MACHANISM
1.STONE CHIP TANK: 1 SET; AUTOMATIC CONTOL BY CYLINDER (OPENED WHENEVER TILE SHEET FOUND AND CLOSED WHENEVER TILE SHEET PASSED).
2.CONVEYER MACHANISM: FOR STONE CHIP LOADING AND RECYCLING.
C. AUTOMATIC DUMPING MACHANISM
1.DUMPING MACHANISM: THE MACHANISM CONTROLED BY CONVERTER AND APPROACH SWITCH WILL ERECT EACH TILE BOOTOM UP AND HEAD EADGE UP RESPECTIVELY SO THAT THE STONE CHIP S WILL COVER THE SURFACE EVENLY AND REMOVE EXTRA CHIPS.
2,RACK STRUCTURE: WELDED STRUCTURE OF STEEL PROFILES.
3,SPEED CONTROL: CONVERTER AND APPROACH SWITCH CONTROL.
D. FIRST BAKE-DRY OVEN
1,SIZE: 30000*1650*1500 (L*W*H)
2,TRANSMISSION: CYCLO; 4 KW
3, SPEED CONTROL: VVVF
4,OVEN STRUCTURE: 1.5mm STEEL FRAME THERMAL WALL WITH HIGH DENSITYHEAT RETAINING INSULATION FITTING
5,RACK STRUCTURE: WELDED STRUCTURE OF STEEL PROFILES
6.MODE OF HEATING INFRARED THERMAL TUBE HEATING; 50 TUBES, 50 KW
IN ALL.
2. GAS HEATING: CONSUMPTION RATE: 100KG/8 HOURS.
(Remarks: gas bake-dry should be specially ordered and the price will be USD 16200 dearer for extra gas heating stove)
7.TRANSMISSION: RACKS ON CHAINS
8.TEMPERATURE CONTROL: TED AUTOMATIC TEMPERATURE CONTROL ELEMENT; 5 SETS; CONTROL RANGE: 0~160 ºC
E. SURFACE GLUE COATING CABINET
1,SIZE: 3000*850*2200((L*W*H)
2,RACK STRUCTURE: WELDED STRUCTURE OF STEEL PROFILES
3,TRANSMISSION RV FREQUENCY-ADHUSTABLE REDUCTION GEARS; 750 W;
4,AUTOMATIC SPRAY GUN: 2 SETS OF ZPQ-1 AUTOMATIC HIGH-PRESURE SPRAY GUN
5.CONTROL MODE: APPROACH SWITCH CONTROL.
6.DEDUST APPLIANCE: ADSORPTION DUCT COLLECTOR; 1 SET; 70 W.
F. SECOND BAKE-DRY OVEN
1,SIZE: 30000*1650*1600 mm (L*W*H)
2,TRANSMISSION: CYCLO; 4 KW
3,SPEED CONTROL: VVVF
4,OVEN STRUCTURE: 1.2mm STEEL FRAME THERMAL WALL WITH HEAT RETAINING INSULATION FITTING
5,RACK STRUCTURE: WELDED STRUCTURE OF STEEL PROFILES
6,MODE OF HEATING: INFRARED THERMAL TUBES HEATING; 50 TUBES, 50KW IN ALL.
2. GAS HEATING: CONSUMPTION RATE: 100KG/8HOURS.
7,TRANSMISSION: RACKS ON CHAINS
8,TEMPERATURE CONTROL: TED AUTOMATIC TEMPERATURE CONTROL ELEMENT; 5 SETS; CONTROL RANGE: 0~160 ºC
G. A LAYOUT OF THE FACTORY
H. PRODUCTIVE CAPACITY
In general conditions, the designed productive capacity is 10000 pcs/day (10 hours) or 4000
effective square meters.
III. RIDGE MAKING MACHINES
9. Punching Machine (for Round Ridge Making)
Capacity: 80 ton
Power: 5.5 kw
10. Bending Machine (for Angle Ridge Making)
Overall width: 2200 mm
Max. pressure: 400 kn
Sales terms
1.Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
2.Delivery: 60 days after receipt of advance payment
3.Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 50USD/day.
4.Warranty: 12 months limited warranty
During warranty: if some parts are broken and because of the quality of the parts in one year, we give the buyer a new one and pay for the shipping fee. If some parts are broken because of the wrong operation of the workers, the buyer will buy it by himself.
1. How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Dezhouzhou Dong(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Dezhou Dong(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months!If the broken parts can't repair, we can send the new parts replace the broken parts free,but you need pay theexpress cost yourself.If after warranty period,wecan through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes,please tell me the destination port or address.We have rich experience in transport
| Prod Model: |
FD-007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
The Forming Machine Line |
| Framework: |
Steel Welding |
| Conveying Device: |
Chain Reciprocating |
| Manual Patch Glue Gun: |
4 Set |
| Automatic Spray Gun: |
4 Set (Spare Parts) |
| Dust Collecting Fan: |
1set Power: 200W |
| Damp Proof Lamp: |
1PC Power: 100W |
| Air Cooling Device: |
1 Set Power: 200W |
| Agitator: |
1set Power: 1.5kw |
| Model No: |
for All Design |
| Certification: |
BV |

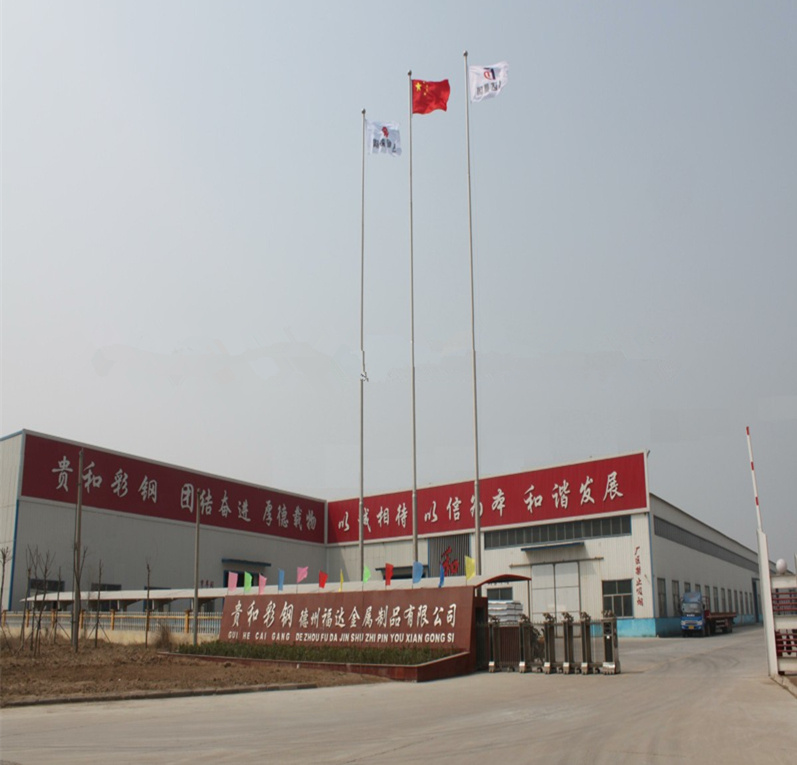

Dezhou Fuda Metal Products Co., Ltd set up in 2000 is an operating factory in Dezhou City, Shandong Province, China. The company is created and has grown into a leading manufacturer to supply engineered metal building materials of stone coated steel metal roof tiles, coated steel roof panels and sandwich panels in multitude sizes and colors and related services.
Fuda started service to international market in 2008 and our quality products have been popularly received in over 20 countries and regions all over the world. Aiming at upgrading the products and service for both domestic and overseas markets, a capital of USD 8 million was spent to develop a 33000 square meter production base equipped with 20 worldly advanced roll or press forming lines. The modern facilities and well trained staff members enable the annual output up to 5 million square meters and the sales income USD 20 million with 40% from export trade.
There are over 200 employees working for the company, 20 of whom are middle or grade technicians. We direct and regulate all the processes of manufacture, inspection, marketing and after-sale service by China national standards. Our quality products and constant efforts for progress are bound to lead to a promising future.
