Cold work D2/1.2379 mold steel with competitive price
1. Standard & grades:
GB Cr12Mo1V1, AISI D2, DIN 1.2379/X153CrMoV12, JIS SKD11
2. Dimensions:
Flat bar: T20~300*W300~1200*L2000~5000mm

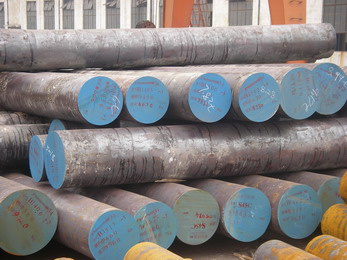

Round bar: Dia20~300*L2000~5000mm
3. Delivery condition:
Hot rolled or forging, black or machined surface, annealing
4. Characteristics:
Very high resistance against abrasive and adhesive wear due to a high volume of hard carbides in the steel matrix, moderate machinability, good dimensional stability, toughness and through hardenability
5. Applications:
Cutting, punching, stamping tools
Shear blades
Thread rolling dies
Drawing and bending tools
Flanging and straightening rolls
Fine cutting tools
Deep drawing tools
Plastic mould for abrasive polymers
Cold extrusion dies
Drawing dies
6. Ultrasonic test standards:
SEP 1921-84, GR. 3 CLASS D/D3
Chemical Composition:
C Si Mn Cr V Mo P S
1.50-1.60 0.10-0.40 0.15-0.45 11.50-12.50 0.90-1.10 0.60-0.80 0.03MAX 0.03MAX
Dongguan Hua Xing Long Mould Steel. Co., Ltd. was established in 1995, We become the sole agent of Germany Schmiedewerke Groditz GmbH for W. 1.2344ESR, W. 1.2344, EX55ESR also is agent of Germany Schmiedewerke Groditz GmbH steel mills for hot work die steel, plastic mold steel and cold work die steel. So far our company has joined in a few of industry associations, and has five independent plants, with a total area of 26, 000 square meters. After years of development, the company has more than 280 employees, including more than 50 technicians, more than 15 senior engineers, and products are mainly sold in China, Southeast Asia, Europe the United States. Our company is also agents and dealers of well-known domestic special production enterprises. The company has passed ISO9001: 2008 international quality management System certification, As an ISO 9001: 2008 accredited company with strict purchasing standard and advanced testing instruments(such as ultrasonic flaw detector, tensile tester, metallurgical microscope, spectrometer, hardness tester, etc. ), so we can provide good quality products for our customers, quality is first.
