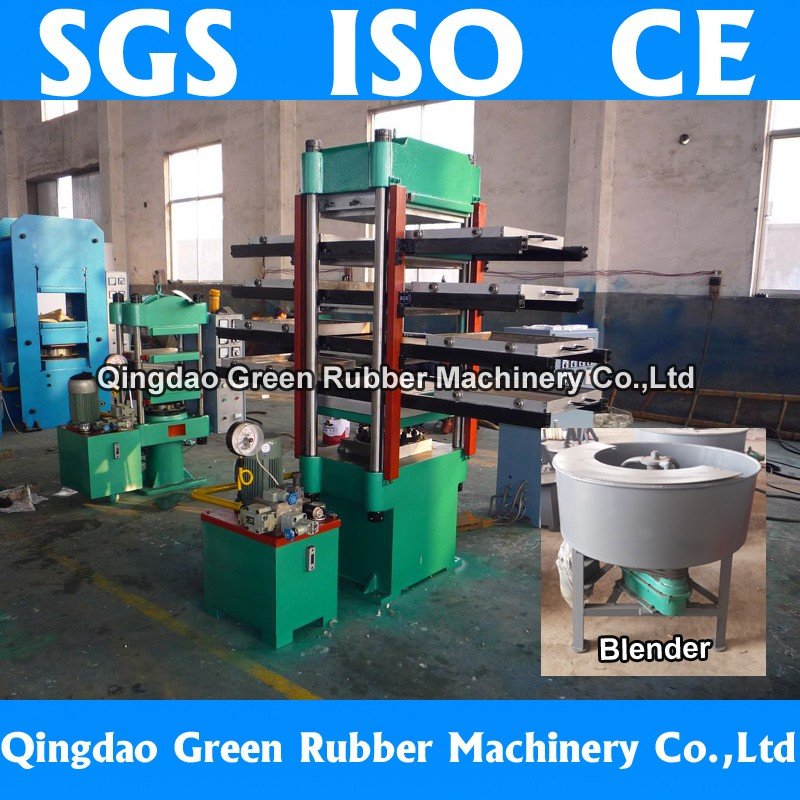

1. Rubber floor tile making machine, rubber floor tile vulcanizing machine
Rubber tile is made of two layers of different rubber granulates, color granulates are fine granulates or rubber wire in surface, the bottom layer is thick rubber granulates or rubber wire.
2. Following is the main processes
(1) Conching: Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir. This process requires for 4- 6 minutes ( because the adhesive is easy to cure, so stir it when use ).
(2) Weighing raw materials: Weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles.
(3) Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
(4) Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8 minutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.
(5) Inspecting: Inspect the surface of the floor tiles, no aberration, no flaw, line with the product quality.
(6) CE Standards and ISO9001: 2008 / SGS Certification
3. To produce rubber floor tile you also need to use mixer machine and floor tile moulds.
4. About our company
(1) Special manufacturer that has professional producing team and technical support
(2) Top level sale teams to communicate with clients by email, telephone, face to face.
(3) Professional explanation to clients about machines(techonogy, apply, using guide and so on)
(4) Best after sale---follow the whole producing situation, provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur and reply you within 12 hours.
(5) Reasonable price and flexible delievery time
(6) More than 30 years of experience of exporting ability
Qingdao Green Rubber Machinery Co., Ltd.
Phone: 0086-13793285970
Main parameters/Model |
XLB--D/Q300x300x2 |
XLB--D/Q350x350x2 |
XLB--D/Q400x400x2 |
XLB--D/Q600x600x2 |
Nominal and mould force |
0.25 |
0.25 |
0.5 |
1 |
Specification of hot plate |
300x300 |
350x350 |
400X400 |
600X600 |
Number of working layer |
2 |
2 |
2 |
2 |
Piston diameter |
140 |
140 |
200 |
300 |
Max stroke of piston |
250 |
250 |
250 |
250 |
Distance between hot plate |
125 |
125 |
125 |
125 |
Unit area pressure of hot plate |
3.5 |
2.04 |
3.1 |
2.78 |
Motor power |
2.2 |
2.2 |
2.2 |
2.2 |
weight |
1000 |
1000 |
1500 |
2700 |
Overall size |
1200*580*1200 |
1200*580*1200 |
1780*600*1300 |
20470*810*1600 |
comment:we kan be individually customized according to customer requirements. |
