It is easy, quick to change the cutter, no need to clamp, easy operate, perfect chamfering, easy adjust, and economic, suitable for batch parts of machanism or mould.
In-house developed straight line bevel edge function can make 15 ° – 45° Adjustment.

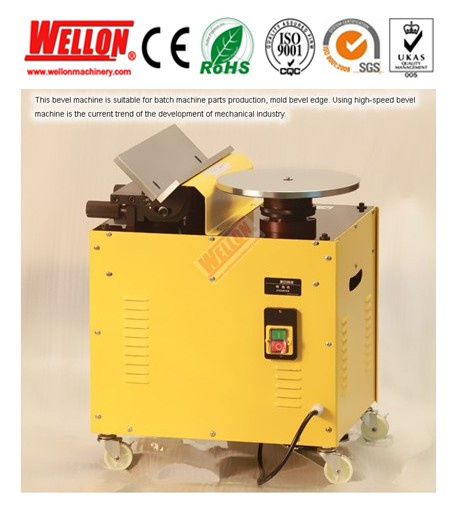

Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency. This bevel machine is suitable for batch machine parts production, mold bevel edge. Using high-speed bevel machine is the current trend of the development of mechanical industry.
The machine adopt Swedish SKF bearing and imported digital cuttings.
| Model | MR-R800B |
| Chamfering height | Straight line: 0-3mm Curved: 0-2.5mm |
| Chamfering angle | Straight line angle: 15° - 45° Curved angle: 45° |
| Power | 3/4HP(750W), 380V |
| Speed | Straight line: 8500rpm Curved: 12000rpm |
| Dimension | 51×42×60cm |
| Weight | 73kg |
| Standard Equipment | Inserts*2 set:1 set for straight,1 set for curved |
