We provide turn key project for beverage filling line, which it is juice / pulp, milk, drinking water, juice and others.
Part I: Water treatment system
Raw water -> raw water tank -> raw water high pressure pump->multi- medium filter (Quartz sand filter) -> active carbon filter-> sodium ion exchanger-> water pump-> precision filter -> RO device ->ozone device ->pure water tank
Remark: Supply water for juice blending tank and washing-filling-capping units
Part II: Juice preparation making treatment system
Sugar melting tank -> sugar filter -> Juice blending tank ->juice homogenizer ->vacuum De-aerater -> storage tank->UHT ultrahigh temperature instant Sterilizer-> heating and cooling tank
Part III: Filling and packing line
Bottle mould blowing machine -> bottle unscrambler-> air conveyor -> auto washing-bottling -capping units ( monobloc 3-in-1 machine) -> inverted bottle sterilizer->bottle cooling machine ->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel-> bottles plastic shrink packing machine bottle dryer->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel->auto film shrink wrapping packager-> stacker by worker
| production line name | complete juice production line machinery |
| capacity and package | can be customized |
| supply | turn-key project |
| raw material | fresh fruit or concentrate juice |
| work | full automatic |
| maintenance | low-cost and easy |

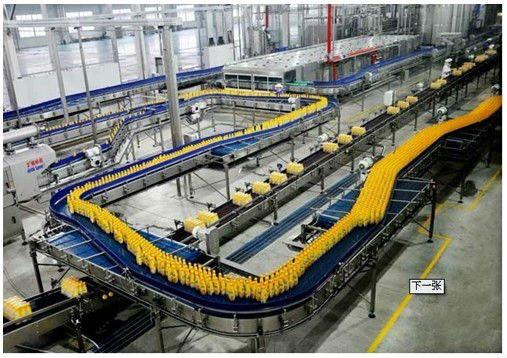

The line including:
1. Bottle blow moulding machine;
2. Bottle unscrambler;
3. Water treatment;
4. Beverage processing system;
5. Air conveyor;
6. Filling machine with rinsing, filling and capping;
7. Lamp inspection;
8. Bottle drier;
9. Ink jet printer;
10. Labeling machine;
11. Shrinking machine;
12. Conveying system;
13. Cooling tunnel and bottle warm tunnel.
Jimei company was established in 1989, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have passed ISO9001, National GMP Technology Standard Evaluation, inspections by National Pharmaceutical Equipment Inspection Center, and all products are designed and manufactured strictly according to standards such as ISO, SMS, IDF, DIN, QB/T2003, 2004, 3A as well as our internal standards.
We are a company integrating scientific research, manufacturing and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported through our sister compang in group (Shanghai Runrong International Trade Co., Ltd)to Asia, Europe, America, Africa, over 50 countries, and gained favorable feedback from users. Major projects include milk preliminary handling, UHT pipe, plate bacteria killing machines, bacteria-free liquid soft packing machine, gable-top paper box filling machine, that combine to form diary production line, beverage production line, biological engineering production line. We have provided products to the following famous companies: Taizinai, Wahaha, Sanlu, Bright, Danone, Mengliu, Coca Cola, PepsiCola, Yingxiong etc.
