Usage:

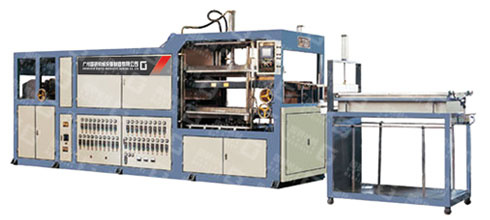

XS Compress molding machine by automatic computer with high-speed control led is suitable for EPS sparkling sheet. It can be molding all kinds of disposable bowl, fast food bowl, and Western-style food dish, or packing for foodstuff(bonbonniere, cake box or ice cream cup)or commodity, toy, rice seedlings plate, etc.
Characteristics:
1. It adopts the advanced PLC control system, and it can be automatic uninterrupted running from feed in_molding-doff-cutting-stow. ( support pressure is 45T)
2. It uses the precise moderator motor to feed in. And combine the double rank needle chain to drive, it is run up and guarantee the machine with nicety and steady to running. And it is convenient and shortcut to adjust in order to utilizing the sheet as much as possible.
3. Temperature control with many groups, and choose the precision plane infrared ceramic heating device, it is uniformity and save the power.
4. This machine has also some specially function: Advance running by hand, LCD screen is easier to adjust the press and control the temperature, delay the vacuum, and vacuum two times, molding two times and shaking to doff the mould. It guarantees the quality and expedites the speed of molding
5. The main electric subassemblies and gas components are import products; The performance is credibility, safety and durable.
Main Technical Parameters:
Width of the sheets ( mm )
| 640
|
Thickness of the sheets (mm )
| 1.5-4
|
| Molding length (mm ) | 1200
|
Molding width ( mm )
| 600
|
Molding height (mm )
| ≤ 165
|
Speed of the machine (Times/h )
| 180-420
|
Power for furnace (kw )
| 30
|
Vacuum pump motor power (kw )
| 4.5
|
Speed of eliciting gas ( m 3 /h )
| 160
|
Power for air compressor ( kw )
| 7.5
|
Amount of exhaust (m 3 /h )
| 1.2
|
Voltage (V/HZ )
| 380/50
|
Weight (kg )
| 4800
|
Overall dimensions ( L × W × H)(mm)
| 8500 × 1500 × 2250
|
