1. Technical specification of QFT3-20 concrete block, brick, interlock paver, curb stone, slab, wall tile making machine specification
| Capacity per mould: | 3 pcs/mould (Standard Block: 400x200x200mm) |
| 14 pcs/mould (Solid Block: 230x110x75mm) |
| 10 pcs/mould (Interlock: 225x112.5x60mm) |
| 10 pcs/mould (Holland Brick: 200x100x60-80mm) |
| Cycle Time: | 15-20 seconds |

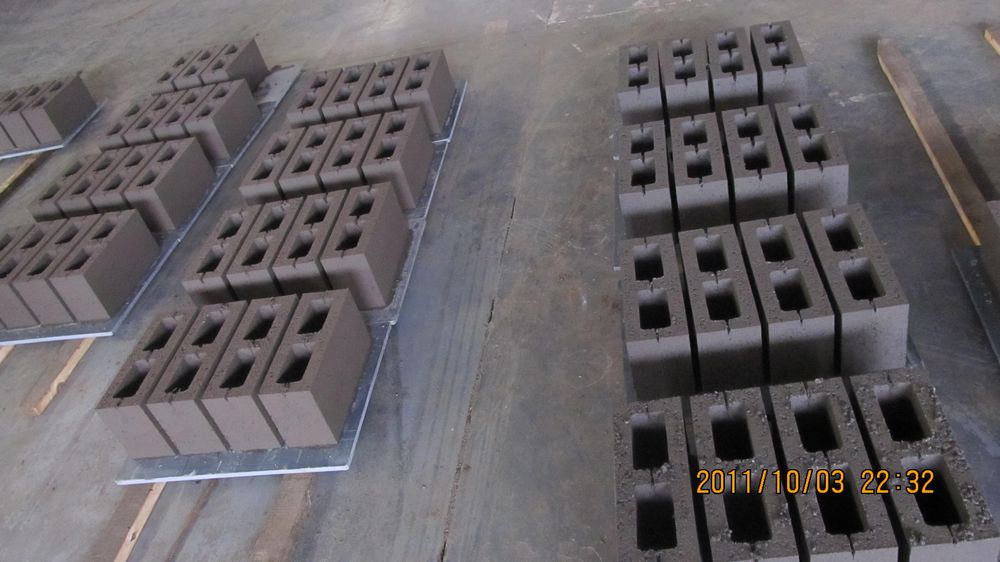

| Capacity per shift(8 Hours): | Hollow Block (400x200x200mm): 4320 pcs |
| Solid Block (230x110x75mm): 26880 pcs |
| Interlock (225x112.5x60mm): 11520 pcs |
| Holland Brick (200x100x60-80mm): 11520 pcs |
| Vibrating Frequency: | 3800~4200 r/min. |
| Vibrating Force: | 30KN |
| Motors Power: | 17KW |
| Machine Dimensions: | 2800X1160X2690MM |
| Pallet Size: | 680X535mm |
| Gross Weight: | about 5T |
2. Advantages of QFT3-20 block, paver and curb making machine
Vibration table is designed work in high frequency and low amplitude, increase 10% block strength and reduce at least 10db noise.
Automatic Siemens control system and raw material ratio record system increase 20% efficiency
Frequency conversion technology makes each hydraulic cylinder working with changeable speed: high speed in front period and slow down in rear period, which could reduce damage to finished block and machine/
Fault alarm system, saving 30% time in troubleshooting.
Moulds are processed with the procedures of carburizing, nitriding and quenching to make strength to HRC61, and lifespand at least 1,200,000 cycles.
3. Production line preparation:
Labor: 6~8 workers/shift
Electricity consumption: 30kW/hour
Land:1500m2 (200m2workshop,400m2raw materials storage,400m2wet block curing yard,500m2 finished block storage.)
Guarantee period:12 months after block machine finished installation.
Installation: Qunfeng will send one technician to install machine and train customer's workers.
1. Specializing in R & D, manufacturing and vendition and after-sale service.
2. The production base with total investment at 52 million USD, covering 186, 081 m2.
3. Assembly and commissioning workshop cover 36, 000 m2, with Various types of CNC equipment in high automation.
4. Mould workshop cover 18, 000m2, with a Heat treatment equipment in Germany technology, highly improve the quality and lifespan of mould.
5. Providing comprehensive technical service, including: investment proposal, construction planning, quality warranty, after-sales service, problem-solving, free training etc.
6. With office and spare parts warehouse in Brazil, Qatar, Algeria, India and South Africa;
7. More than 50 technicians working overseas providing after-sales service support for customers.
8. With CE Certificate;
9. With 50 national patents
10. Involved in the drafting and revision of more than 10 national industry standards;
11.65% of orders from overseas;
12. Our Machine working well in 106 countries and area;
13. Over 7000 customers worldwide.
