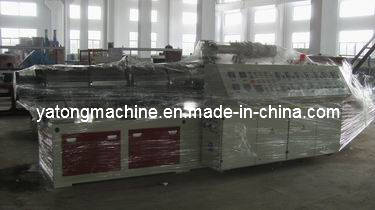

Conical Double Screw Extruder for PVC Pipe

Conical Double Screw Extruder for PVC Pipe
Price: US $ 13000-56000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C

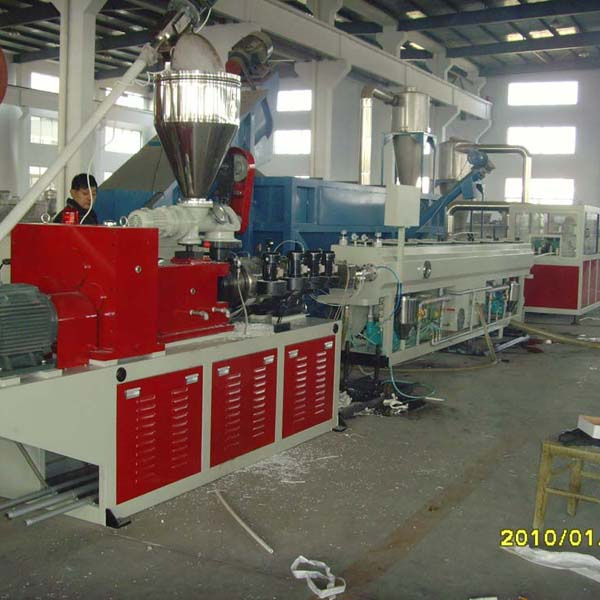

SJSZ series plastic extruder/ extrusion machine are special equipments which can extrude and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes, profiles, sheets, plates, bars and granulation.

This kind of plastic conical double screw extruder has widely use, it is specialized for all kinds of plastic extrusion
ItemSJSZ45 SJSZ51 SJSZ55 SJSZ65 SJSZ80 SJSZ92
Screw diameter (mm)45/90 51/105 55/110 65/132 80/15692/188
Q'ty of screw2 2 2 2
Direction of screwOUTWARDS CONTRA-ROTATING
Screw rotation speed(rpm)1-37 1-32 1-32 1-34.7 1-36.9 1-32.9
Effective length of screw(mm)985  1070 1200 1440 1800 2500
Main motor power(kw) 15 18.5 22 37 55 90
Barrel heating power(kw) 11 11 15 24 36 60
Capacity(kg/h) 70-100 80-120 120-150 160-250 300-360 500-600
Center height(mm)1000  1000 1000 1000 1000 1000
Weight(kg) 2800 3200 3600 4000 5000 10000


Prod Model: SJSZ51, SJSZ55, SJSZ65, SJSZ80, SJSZ92
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Extruder Type: Conical Twin-Screw Extruder
Color: Customized
Voltage: Customized or 380V/50Hz
Plastic Type: PVC
Screw: Double-Screw
Automation: Automation
Computerized: Computerized
Certification: CE
Material Processed: PVC Powder
Zhangjiagang Yatong Machinery Co., Ltd., is located in the beautiful and economic-strong city of Zhangjiagang, Jiangsu. Founded in 1998 with an area of more than 15, 000 square meters, it is a professional manufacturer in the field of plastic pipe and profile extrusion PE, PP FILM and PET recycling, etc. Our machines are serving in most part of the world, including Asia, South America, Middleast, Europe, etc. And received numerous favorable feedbacks from overseas customers.

Providing our customers with the best quality machine is our ultimate goal, thus, Yatong Machinery Co. Offers superior service through a well-trained and dedicated work force. We are ISO 9001: 2000 and CE certified.
