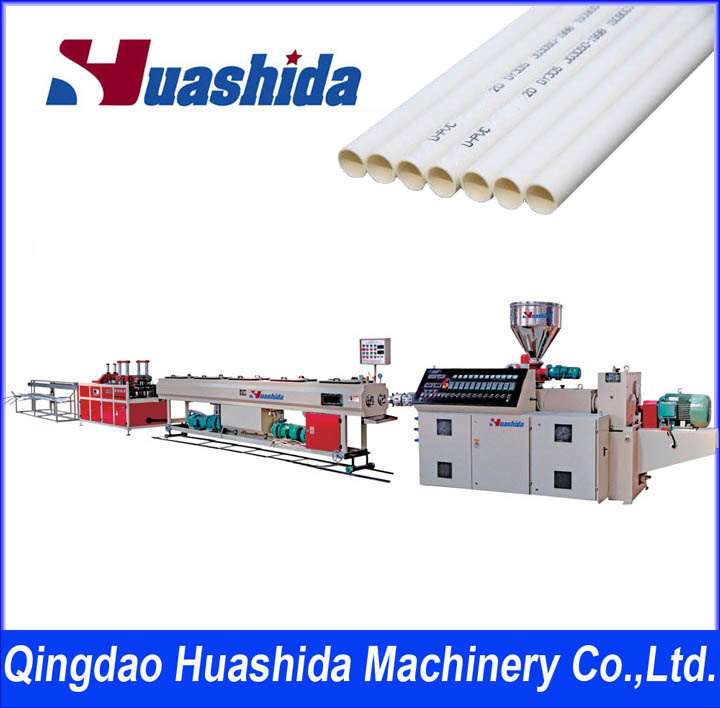

Conical Twin Screw Extruder UPVC / PVC Pipe Extrusion Line
Application:
The pipe produced by this line can be widely used in water supply and drainage system.
Application:
The maximum pipe diameter this line can produce is 630mm. This production line can be equipped with SJZ series conical twin screw extruder or parallel twin screw extruder. The haul off machine has two-way, three-way, four-way, six-way, type. The cutting machine has blade saw cutting and planetary cutting method. We also supply all kinds of PVC moulds.
Paramter& Model |
SJGF-160 |
SJGF-250 |
SJGF-400 |
SJGF-630 |
Extuder |
SJZ51 |
SJZ65 |
SJZ80 |
SJZ92 |
Diameter range(mm) |
Φ 63-Φ 160 |
Φ 110-Φ 250 |
Φ 200-Φ 400 |
Φ 315-Φ 710 |
Haul-off Speed(m/min) |
0.8-10 |
0.5-5 |
0.3-4 |
0.2-3 |
Total Power(kw) |
89 |
95 |
135 |
255 |
Total Length(mm) |
20000 |
20500 |
28000 |
30000 |
Qingdao Huashida Machinery Co., Ltd. Was established in Qingdao High & New Technology Industrial Area.
HSD have twenty years plastic machinery and related products manufacture experience, structured working attitude and responsibility. Assimilate and master technology introduced from abroad, we developed series of high effective single screw extruder.
As a professional manufacture in plastic pipe and plastic sheets machinery in China, Qingdao Huashida Machinery Co., Ltd. is specialized in designing and manufacturing plastic extrusion lines as well as welding equipments etc.
Our products have exported to many countries, such as Japan, Taiwan, Russia, Uzbekistan, Kazakhstan, Turkey, Thailand, Brazil, Saudi Arabia, Egypt, South Africa, India etc.
