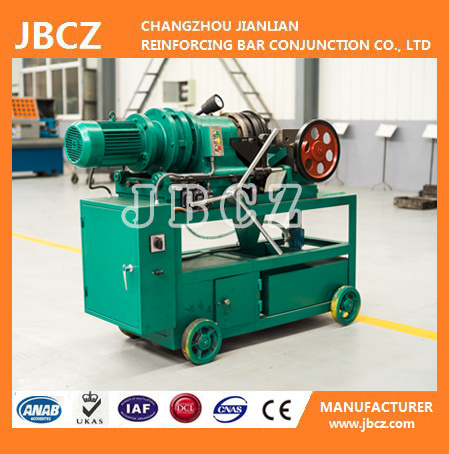

Construction Rib Peel Thread Rolling Machine for Rebars Connection

Construction Rib Peel Thread Rolling Machine for Rebars Connection
Price: US $ 6000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

Construction Rib Peel Thread Rolling Machine for Rebars Connection:

This rib peeling roll thread machine can process steel bar whose diameter is from 16mm to 40mm, and it can customized rebar diameter 14mm according to our client's requirements.


Specifications rebar coupler of Rib Peel Thread Rolling Machine for Rebar Connection:
Steel bar diameterOuter diameter of coupler (MM)Length of coupler (MM)Size of thread (MM)
122030M14*2.0
142234M16*2.0
162640M20*2.5
182944M22*2.5
203248M24*3.0
223652M27*3.0
254060M30*3.5
2844.566M33*3.5
325072M36*4.0
365680M39*4.0
406290M45*4.0

Description Construction Rib Peel Thread Rolling Machine for Rebar Conection:
JBCZ cold forged splicing is suited to projects which require high volumes of couplers. The ends of the bars to be joined are cut square and enlarged by cold forging to increase their core diameter and so ensure that the joint is stronger than the bar. The couplers are usually supplied attached to the reinforcing rebar coupler.


Applications of Rib Peel Thread Rolling Machine for Rebar Connection:
Bridge ProjectHangzhou Bay Crossing Sea Bridge, Jiangyin Yangzi River Bridge, Jiangsu Runyang Bridge
Commercial Building ProjectBurj Khalifa Tower, Oriental Pearl tower, Saraya Tower, Jinmao Tower
Public ProjectBeijing Capital Airport, Qinshan Nuclear Power Plant, Gazi-Barotha Hydropower Station In Pakistan, North Jeddah Water Pump Station, Dubai Metro, Suzhou Gymnasium


Competitive Advantage of Rib Peel Thread Rolling Machine for Rebar Connection:
1.Quick and easy installation;

2.Well meet seismic requirement;

3.Meet slip test requirement;

4.Manufactured under strict quality assurance plan ISO 9001 and Technical Approval TAC-133;





Questions:

  1. How can I know the quality of JBCZ rebar coupler?
We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.



2. Where is your company?
Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!



3. If you have any problems about Rib Peel Thread Rolling Machine for Rebar Coupler, please send message to me, I will reply you within 1 working day.
You are welcome to contact me.



Prod Model: JHB400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thread Type: Parallel Thread
Size: 20mm, 25mm, 32mm, 38mm
Tensile Strength: More Than 700MPa
Yield Strength: 500 to 550MPa
Brand: Jbcz
Port: Shanghai
Quality: High
Price: Excellent
Certificate: CE and ISO
Function: Link Two Steel Rebar
Located in Heng Shan Qiao crossing of Shanghai-Nanjing Highway, Changzhou City, Jiangsu Province, China. JBCZ company was established in 1987, is a professional developer and manufacturer of rebar mechanical splice products, contains rebar processing machines and rebar couplers. We have four systems of machine:

1. Upset forging parallel thread machine and coupler

2. Rib peeling roll stamping machine and coupler

3. Cold extrusion press machine and coupler

4. Taper thread machine and coupler

The company has coupler streamline production workshop, mechanical precision production workshop, and equipped with engineering department in home and technical department which are responsible for the corresponding service for overseas. Company has an annual production capacity of 6 million 12-40mm reinforcing steel bar upset forging straight screw thread connection adapter sleeves, and more than 500 sets of machinery, which could well meet the requirements of major and key construction projects of home and overseas. The company has a perfect quantity, management and control system. We are strict to buy the raw materials, produce products and test the products. Our products and technology Have past GB/T19001-2000idt, ISO9001: 2000international quality management system and CE certification.

Our company supplies not only the products, but also good service. Our aim is to meet different clients' Requirments, and help clients to solve steel bar link problems in the project.

With more than 20 years development, we have ISO9001 certificate and CE certificate, Patent certificate for Upset forging parallel thread machine, the products were exported to five continents.

Our products have been used in following countries: United Arab Emirates, Ukraine, Poland, Sudan, Pakistan, Malaysia, Vietnam, Brazil, South Korea, Thailand, Iran, India, Mexico, New Zealand, Colombia, Ethiopia and Philippines etc.

We are looking forward to great cooperation with oversea customers based on mutual benefits. Please feel free to contact us for more details if you are interested in us.
