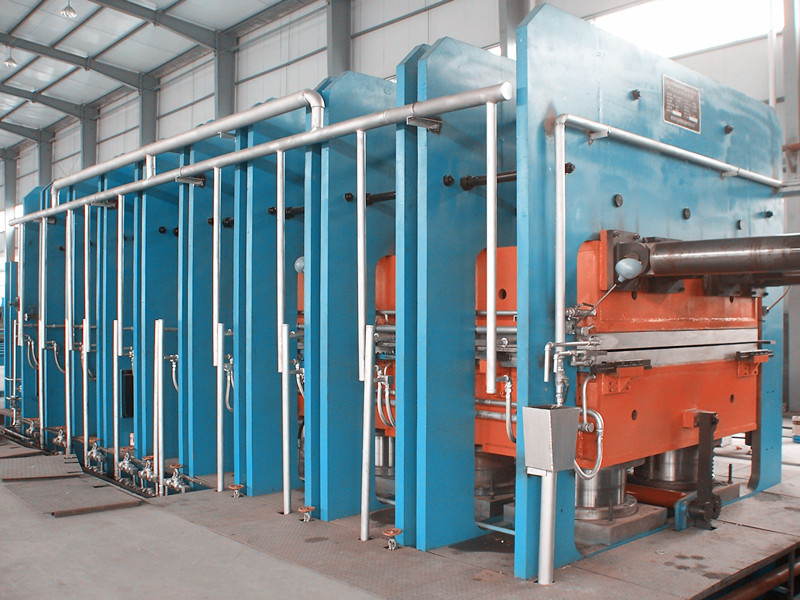

Vulcanizing Press for Conveyor Belt
1.16 years history
2.100% meet requirement
3. CE, ISO9001
4. One year quality guarantee and long-term technical support;
5. Export to about 10 countries
6. LC/TT
7. PP film or plywood
8. Delivery within 30 days after receiving the deposit
Detailed information:
1. Hydraulic cylinder:
Hydraulic cylinder material is cast iron
When the hydraulic cylinder is working, internal pressure can be reached 33 million Mpa.
Hydraulic cylinder with a flange, so that fixed on the beam, also be a hole for working fluid in and out of the hole, there is one groove, in order to install sealing ring.
There are two kinds of oil seal, one is top material, the other is Ordinary materials.
Our oil seal is top material
2. Flat:
The material is Cast or steel
The flat used to be put the mold.
Then flat transfer the pressure to mold, heat mold
Flat heat evenly is very important for vulcanizing machine, it can decide the quality of the finish products.
3. Plunger:
Plunger is a thick-walled casting cylinder and closed at one end.
It is in the inside of hydraulic cylinder, plunger work under the pressure of the liquid, when plunger rise, convey the force to heating plate.
The plunger should be able to work under the liquid pressure.
4. Detailed description(Electric pipe):
Material is stainless steel
No easy to rust
Conductive fast
Power saving
Fire prevention
Commissure is better than double head electric pipe
Replacement is easy
Useful life is about 5 years
We are a specialized manufacturer integrating the research and manufacture of various specifications of plate presses, rubber mixing mills, rubber machinery and tyre machinery. Due to rich technical force, advanced manufacturing technology, complete test means and quality after-sales services, our company enjoys a good reputation in this industry of China. Our products enjoy great popularity in domestic and overseas markets.
|
Parameters/Version |
XLB-1400*5700*2 |
XLB-1400*10000*1 |
XLB-1600*10000*2 |
XLB-1800*8000*2 |
XLB-1800*12000*2 |
XLB-2000*10000*1 |
|
Platen size(L*M)(MN) |
1400*5700 |
1400*10000 |
1600*10000 |
1800*8000 |
1800*12000 |
2000*10000 |
|
Total pressure (MN) |
25.00 |
49.00 |
56.00 |
51.00 |
74.00 |
70.00 |
|
Pressure unit of plate(Mpa) |
3.13 |
3.5 |
3.5 |
3.54 |
3.4 |
3.5 |
|
Ram diameter(MM) |
360 |
450 |
450 |
600 |
500 |
600 |
|
Quantity of ram(MM) |
10 |
20 |
18 |
12 |
18 |
16 |
|
Max.ran stroke(MM) |
400 |
300 |
400 |
600 |
400 |
300 |
|
Clamping force(MN) |
0.72 |
0.90 |
1.20 |
1.20 |
1.20 |
1.20 |
|
Tensioning force(MN) |
0.60 |
0.80 |
1.10 |
1.00 |
1.10 |
1.00 |
|
Steam pressure(Mpa) |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
|
Pressure of cooling water(Mpa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Application |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
|
Control form |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
|
Overall size (L*W*H)(mm) |
5700x2350x4170 |
10000x2400x3580 |
1000x2660x4120 |
2700x8000x4500 |
2000x12900x3930 |
10000x3100x4400 |
