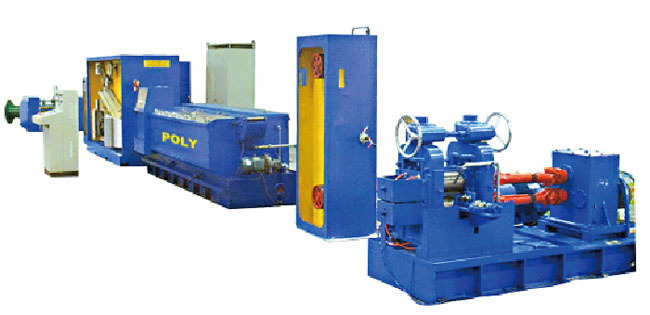

Copper Flat Wire Drawing Machine & Rolling Machine (PL-E180)

Copper Flat Wire Drawing Machine & Rolling Machine (PL-E180)
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Flat wire drawing machine & rolling machine
Feature
1. The working procedure of single annealing is saved and the repeated transportation of wires is avoided
2. The machine could work almost all the while, and the production efficiency is enhanced further
3. Continuous annealing machine control system: DC control

FLAT WIRE DRAWING MACHINE & CONTINUOUS ANNEALING
Rolling machine
Be suitable for metal
Inlet diameter
Machine type
Outlet diameter
Machine speed
Motor power
Copper wire, brass wire
2.5-3.5mm
E180
Width 3.0mm-4.5mm; Thickness 0.8mm-1.5mm
300 m/min
7.5kW

Wire drawing machine Machine type
Machine speed
Main motor
Transmission type B9D
300 m/min
45 kW
By precision ground gears
Annealing machine Machine type
Transmission type
Annealing power
Annealing control
Annealing motor TH300-1500
Flat belt
110 kVA
4Pole DC current output
5.5 kW

Take-up machine
Machine type
Machine speed
Traversing unit
Spooler motor WS630
300 m/min
Synchronous motor
15 kW
(Optional)
Subsequent equipments Dual bobbin auto-spooler
Multi-motor without Slippage and Tackling
Prod Model: PL-E180
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method: Mold Forging
Zhangjiagang Poly Machinery & Electric Manufacturing Co., Ltd was founded in March 2003, it's a subsequent start of Wire & Cable industry with integrate of design, manufacture and sales. We are focus on researching high quality and automatic products for many years, we have achieved many breakthroughs.

We are good at studying the further processing of metal wires that are like copper wire\EDM brass wire\Phosphor Bronze Wire\copper-nickel alloy \silver plated copper wire\tinned copper wire\CCS wire\CCA wire \stainless steel wire\carbon steel wire\AL-MG alloy\Aluminium wire\zipper flat wire\photovoltaic copper strip. We can also as customer's request to make each kind of drawing machine, annealing machine and pay off & take up device. We are focus on learning advanced technology of wire & cable equipment at home and abroad, at the same time we also researching & testing by ourselves, our machines improved faster in the humanized operate & reliability. And our machines have a good press by Japan\India\ Vietnam\Iran\Egypt abroad customers.

Our company are in line with the principles of "doing best then strengthening", working hard for leading technology and good quality. In the day of technological development, "Poly Man" would like to make great efforts with the people who work in the electron beam, magnetic wire, cutting line, solar photovoltaic, wire & cable together for the industry development.
