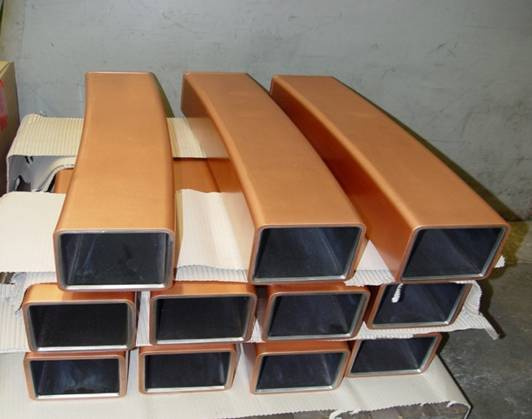

Specification of copper mould tube
Dalian Dashan Metallurgical Engineering Technology Co., Ltd. is the subsidiary company of Dalian Dashan Group. The company was founded in May 2008 with construction area of 40, 000 square meters. There are 170 employees, of whom 36 are managers, 29 are senior technical staff.
Our core business is the production of continuous casting machine, billet, slab crystallizer and relevant spare parts. The R6m casters and rolling equipment have exported abroad to Kazakhstan, Vietnam, etc. Dalian Dashan Metallurgical Engineering Technology Co., Ltd. is the import and export window of Dalian Dashan Group.
|
Section shape Item |
Square |
Rectangular |
Round |
Beam Blank |
|
Size range |
60x60~500x500 |
100x240~300x500 |
Φ90~Φ500 |
|
|
Length |
700-1000 |
|
Radius |
R4000-R16000 |
|
Internal geometries |
Parallel, single tapered, double tapered, multi-tapered, parabolic tapered, diamond tapered, CONVEX |
|
Material |
Cu-DHP (SF-Cu DIN1787) CuAg0.1 Cu-Cr-Zr |
|
Coating |
Cr, Ni-Co-Cr |
Dalian Dashan Metallurgical Engineering Technology Co., Ltd. is the subsidiary company of Dalian Dashan Group. The company was founded in May 2008 with construction area of 40, 000 square meters. There are 170 employees, of whom 36 are managers, 29 are senior technical staff. Our core business is the production of continuous casting machine, billet, slab crystallizer and relevant spare parts. The R6m casters and rolling equipment have exported abroad to Kazakhstan, Vietnam, etc. Dalian Dashan Metallurgical Engineering Technology Co., Ltd. is the import and export window of Dalian Dashan Group.
DLDS Group is a one of the biggest producers and suppliers of copper mould tubes & plates located in China, we have long years' supply experience of copper mould tubes & plates all over the world. Copper mould tube is the heart of continuous casting machine, the mould tubes supplied by DLDS adopts most advanced European technology, and all production process are LED by Quality Management System in accordance with ISO9001: 2000 standards. We commit to supply products which comply exactly with customers' specifications and are competitive in terms of delivery, price and service, and we can also give technical guidance to help the customer to reduce the cost and increase productivity. Our specialized know-how, quality control and dedicated service enable us to satisfy the market's changing requirements. We had exported our copper mould tubes/plates to various foreign countries such as Germany, Italy, Greece, Brazil, Venezuela, Ecuador, India, Thailand, Philippine, Turkey, Syria, Pakistan, Egypt, South Africa, West Africa etc in last decade.
