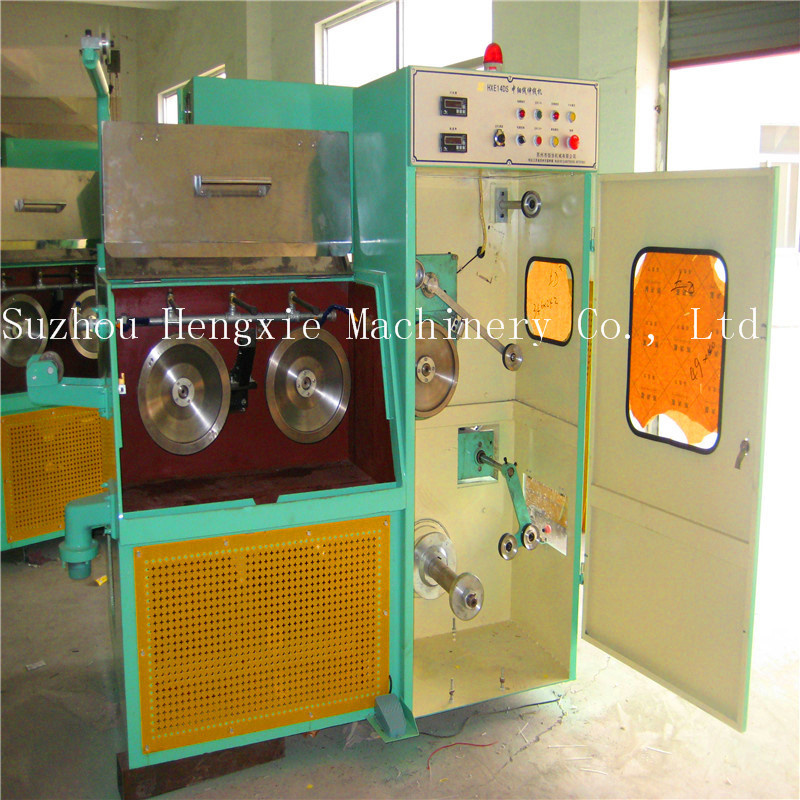

Copper Wire Drawing Machine (HXE-14DS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Copper wire drawing macine
Inlet size 0.8mm-1.6mm
Outlet siez 0.25mm-0.6mm
High speed 2500
Die numbers 14
Slip ratio of machine 15%
Slip ratio of fix speed capstan 8%
Capstan Ceramic Plasma
Revise system Synchronous control spoole
Main motor 15KW
spool motor 3.7KW
Inverter control Inverter control
Transmission type Synchronous belt
Pay-off method Over-head
Traversing unit Flat belt+synchronous belt
Tension control Weight balance of swing arm
Lybrication type spray type
Bobbin size 300mm-400mm
Spooler capacity 50-80
Bobbin loading Shaft type
Power source 380V
Brake Magnetic brake
Dimension 2600L*1600W*1900H
Weight 2200
| Prod Model: |
HXE-14DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue/Customized |
| Warranty: |
1year |
| Popularity: |
Hot/on Sale |
| Die: |
14 |
| Inlet Size: |
0.8mm-1.6mm |
| Outlet Size: |
0.25mm-1.6mm |
| Usage: |
Rope Wire |
| Type: |
Wire Drawing Machine |
| Max.Inlet Wire Dia.: |
0.8mm-1.6mm |
| Outlet Diameter: |
0.25mm-0.6 |
| Max. Number Of Block: |
14 |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
