Copper Wire Drawing Machine (HXE-14DS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

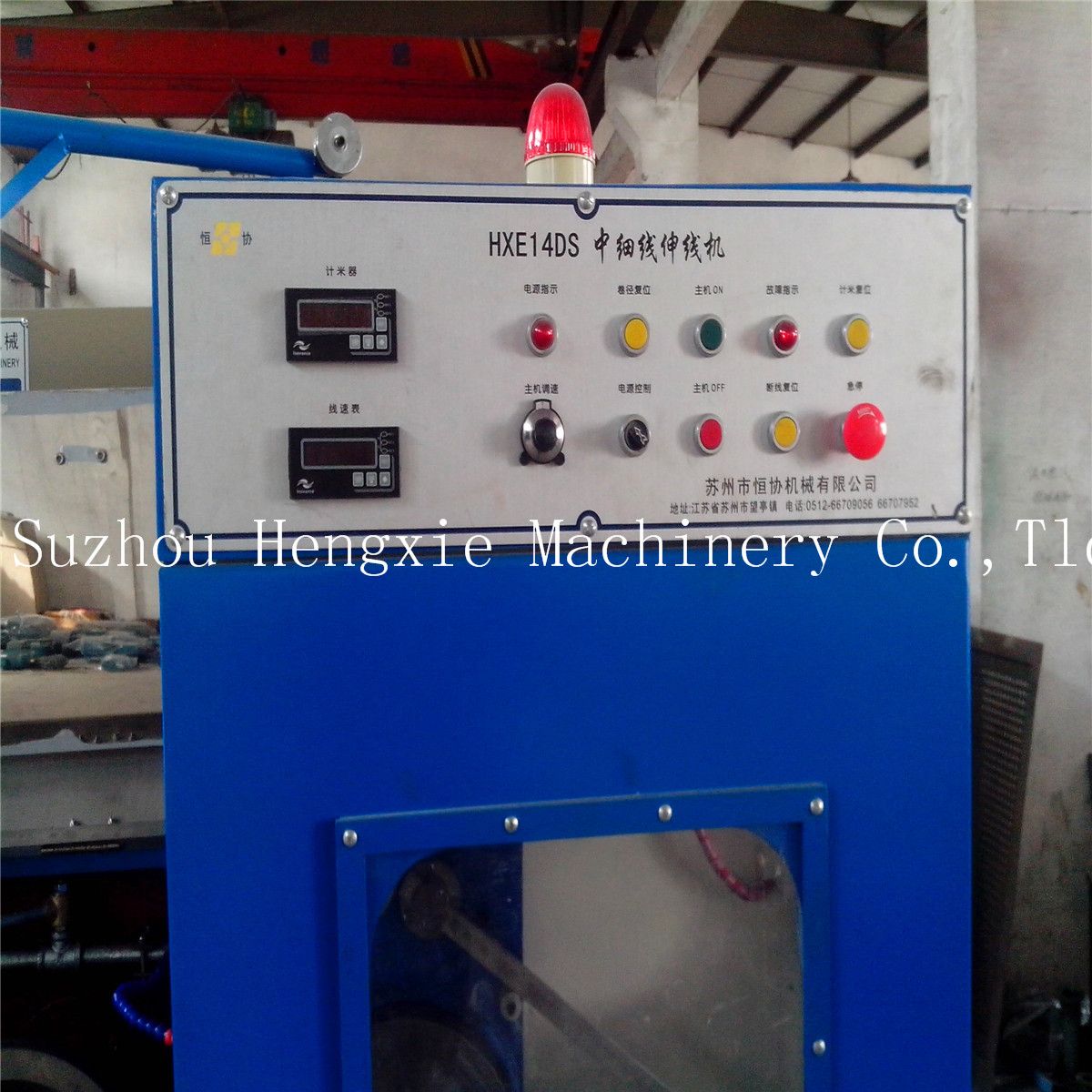

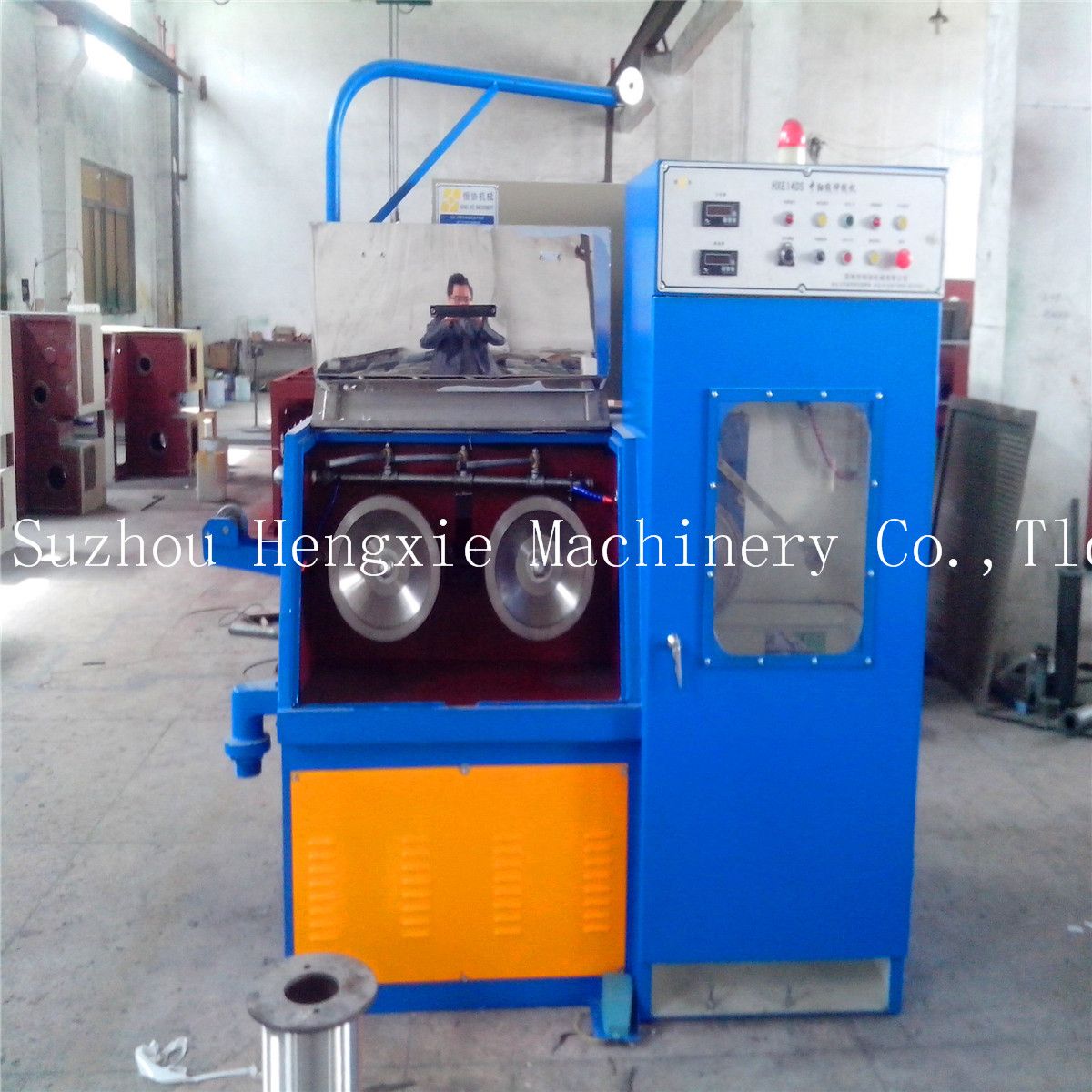

HXE-14DS Copper wire drawing machine
Technic Deatil| Inlet diameter | 0.8mm-1.6mm |
| Outlet diameter | 0.25mm-0.6mm |
| Die numbers | 14 |
| MAX speed | 1500 |
| Frame | Welded by steel plate |
| Slip ratio of machine | 15% |
| Slip ratio of fix speed capstan | 8% |
| Capstan | ceramic plasma |
| Capstan diameter | 316mm |
| Fix speed Capstan diameter | 268mm |
| Main motor | 15KW |
| Spool motor | 3.7KW |
| Revise control | Synchronous control spool |
| Inverter control | Inverter control |
| Transmission type | Synchronous belt |
| Pay-off method | Over-head |
| Traversing unit | Flat belt+synchronous control |
| Tension control | Weight balance by swing arm |
| Lubracation typer | Spary type |
| Bobbin size | 300mm-400mm |
| Spooler capacity | 50-80kg |
| Bobbin loading | Shaft type |
| Power source | 380V |
| Brake | Magnetic brake |
| Dimenson | 2600L*1600W*1900H |
| Weight | 2200 |
Don't hesitate to cantacr me if you want to but this machine.i will reply as soon as possible.
| Prod Model: |
14DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Hxe New |
| Popularity: |
Hot/on Sales |
| Warranty: |
1 Year |
| High Speed: |
1500 |
| Power: |
380V |
| Operation: |
Button Control |
| Usage: |
Rope Wire |
| Type: |
Wire Drawing Machine |
| Max.Inlet Wire Dia.: |
0.8mm-1.6mm |
| Outlet Diameter: |
0.25mm-0.6mm |
| Max. Number Of Block: |
14 |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
