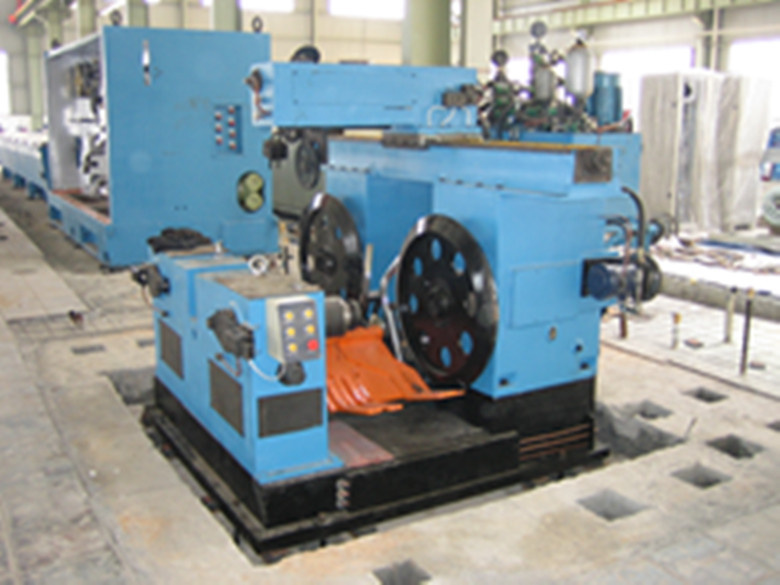

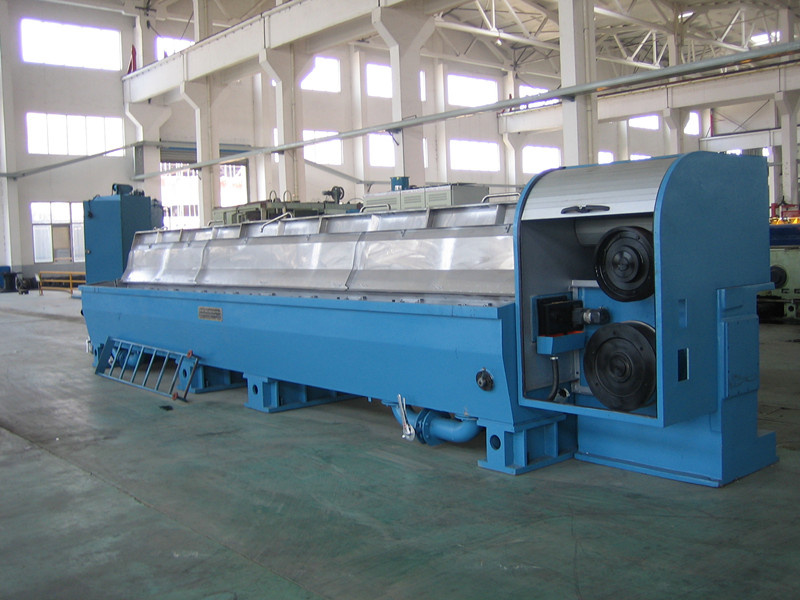

LHD-450/13 high-speed copper rod breakdown machine is used to draw Φ8mm ordinary copper rod into Φ1.35mm-Φ3.5mm wire. The drawing capstans are arranged in a line that are able to work continuously with drawing speed; and also wire can be continuous annealed; and speed of mechanical parts and electrical control can be matching each other. It is easy to operate, easy to change dies quickly and to change dual take up spools automatically without any pause. This machine has features of easy operation, high efficiency and good quality of product.
Max inlet diameter: Φ8mm
Outlet diameter: Φ1.35mm-Φ3.5(4.0)mm
Max. drawing speed: 25m/s
(Hard wire
)Diameter of drawing capstan: Φ450mm
Max. drawing pass: 13 Nos.
Max. length of wire accumulator: 7m
Size of take-up spool: PND500
,PND630
Motor for drawing machine: Z4-315-12 280KW 1000r/min DC
Motor for final capstan: Z4-200-21 75KW 1500r/min DC
Motor for dual-spool take-up: Z4-160-31 30KW 1500r/min DC
Max. size of dies: Φ53×35 (International standard). It also can be made according to user's
requirement.
Installation power: 860KVA
Overall dimension of machine (L x W x H): 28220mm×4500mm×4400mm
