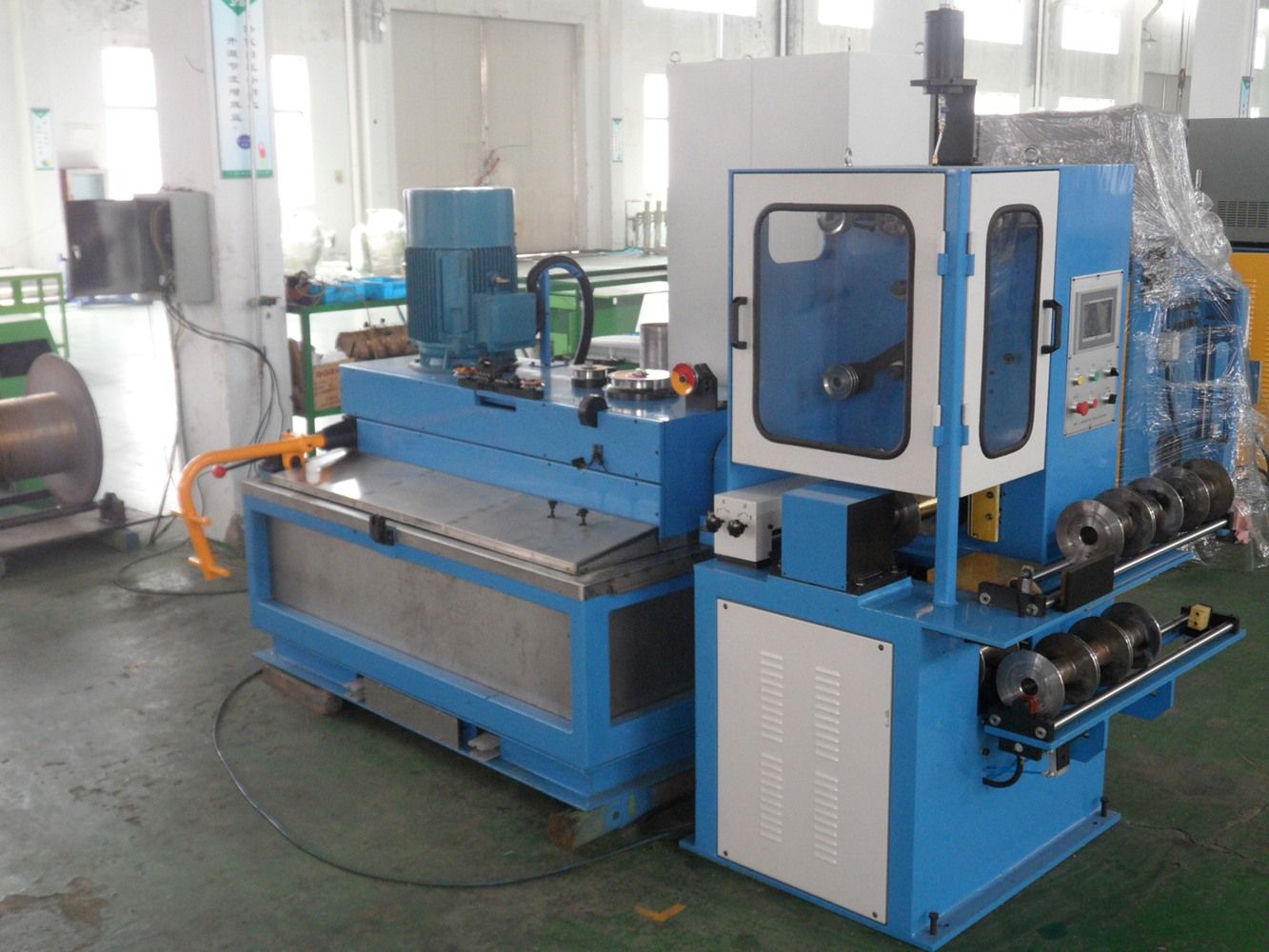

1. The equipment consists of main reduction box, die casing, wheel frame, sash brace and electrical control system.
2. The spinning drawing blocks are driven by motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body.
3. The set of the machines is an ideal equipment for drawing wire stock of high, medium and carbon steel, as well as coper, alumium and alloy.
4. The machine are applied for drawing wire in the factories, such as wire-steel factor, metal mesh factory and nail making factory etc.
Capstan No.
|
4-6 |
Dies No.
|
9-25 |
Inlet Diameter
|
0.9-2.5 mm |
Outlet Diameter
|
0.15-0.40 mm |
Max Speed
|
1500 m/min |
Motor Power
|
15kw, 22kw, 30kw, 37kw |
